This machine is widely used to pack any loose,powder products of the haeceutical,and chemical industries, such as milk powder, soya powder,cosmetic powder, slimming tea,medical powdered etc.
Products Details
Product Information：
This machine is widely used to pack any loose,powder products of the haeceutical,and chemical industries, such as milk powder, soya powder,cosmetic powder, slimming tea,medical powdered etc.

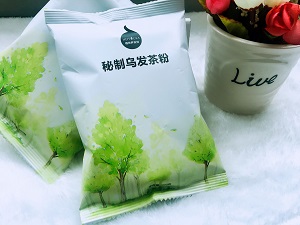

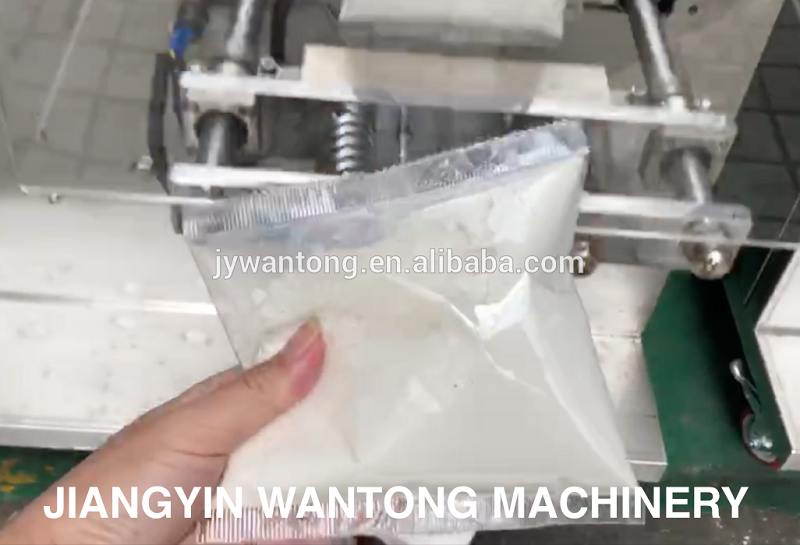

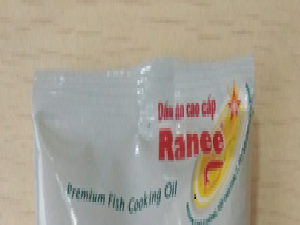

Sample Picture:

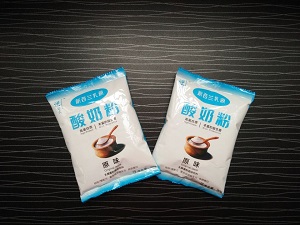

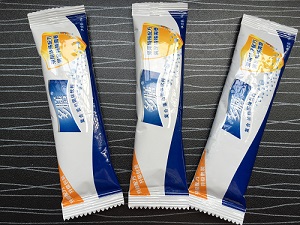

| Stick type | Normal Type |
 |  |
 |  |

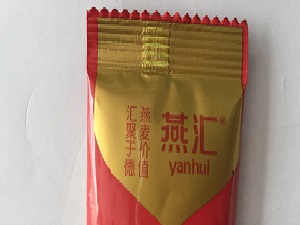

| Tooth Cutting | Straight cutting |
 |  |

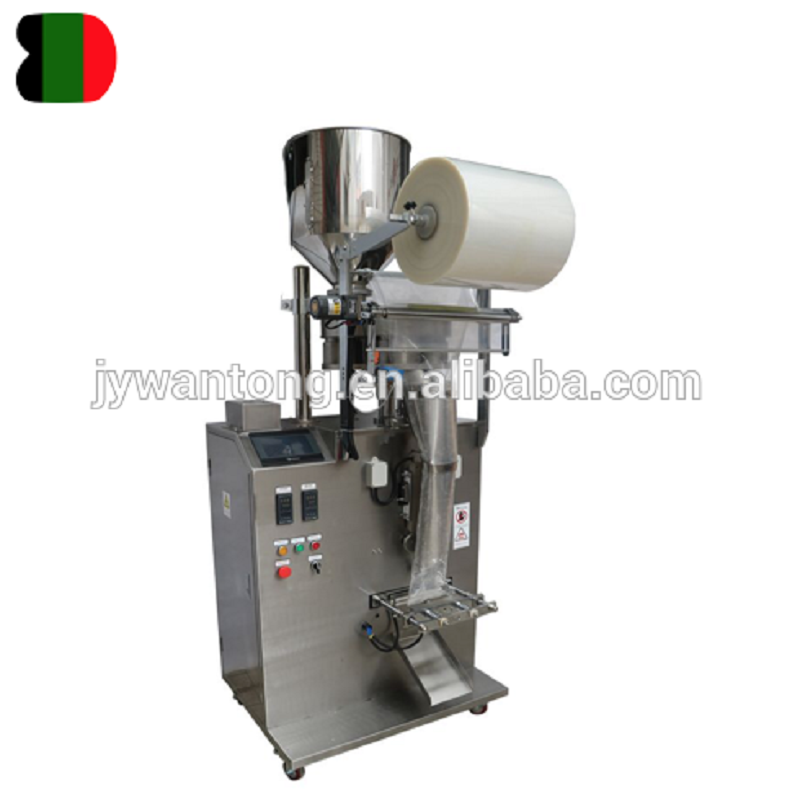

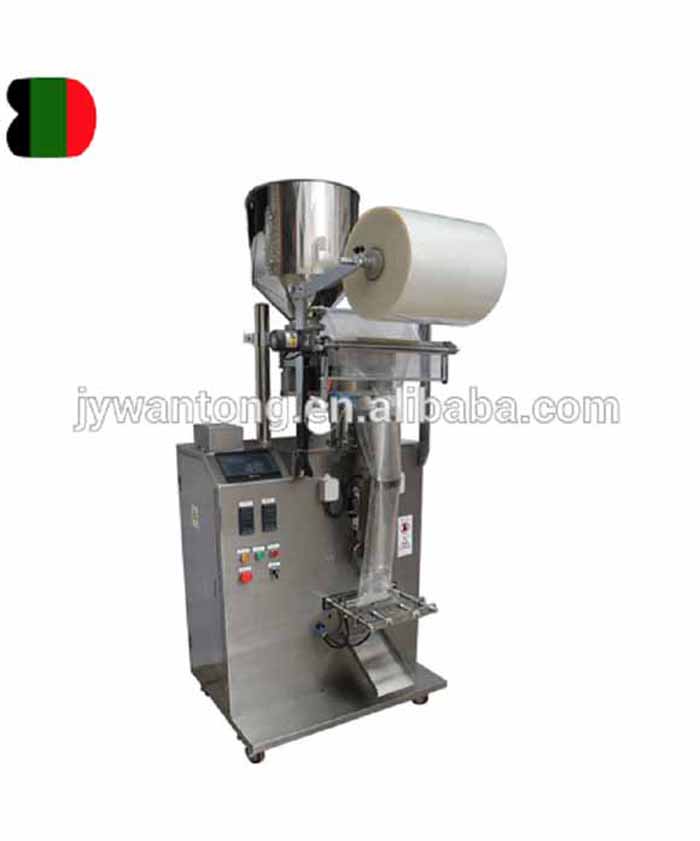

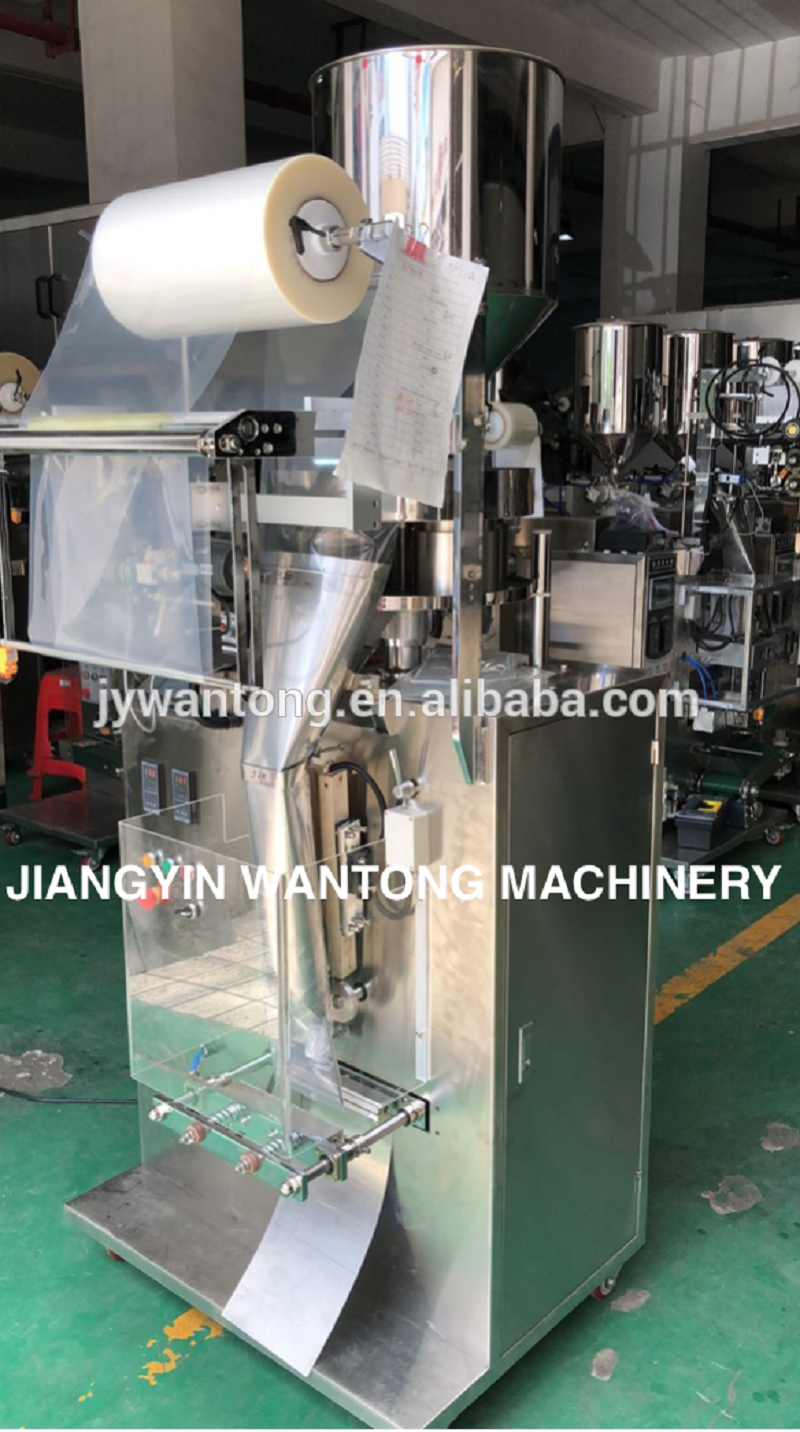

Products Picture
Product Information：
This machine is widely used to pack any loose,powder products of the haeceutical,and chemical industries, such as milk powder, soya powder,cosmetic powder, slimming tea,medical powdered etc.
Technical Parameters:
| Model | WT-60FB |
| Capcity | 20-40 bags/min |
| Range of measurement | 1-100G(need change screw) |
| Bag size | (L)20-160 (W)15-100mm |
| Sealing Type | back sealing |
| Power | 1850W |
| Total power | 380V/50HZ 220V/50-60HZ |
| Packing material | Paper/the polyethylene,nylon/polyethylene,tea filter paper,etc |
| Net weight | 250kg |
| Powder tank Volume | 20L |
| Overall dimensions | (L)800*(W)800*(H)1900 |
| Name | Detail | Name |
| Model NO.: | WT-60FB | |
| Sensor | Changtong (China) | Changtong (China) |
| PLC Controller | Mitsubishi/Japan | Mitsubishi/Japan |
| Stepping motor | Jiangsu huanyu | Huanyu (China) |
| Main Motor | Zhaoqing Zhongbao | Zhongbao(China) |
| Temperature control meter module | Yuyao families meter. | Yuyao(China) |
| Color code photoelectric | Zhejiang both | Both(China) |
| Intermediate relay | Zhejiang both | Both(China) |
| Solid state relay | Zhaoqing Zhongbao | Zhongbao(China) |
| Luck film motor | Jiangsu huanyu | Huanyu (China) |
| Proximity switch | Jiangsu huanyu. | Huanyu(China) |
| Push button switch | Japan (OMRON) | Japan (OMRON) |
| Power switch | Japan (OMRON) | Japan (OMRON) |
| Color Printer for Date | China Nanyun | Nanyun(China) |
| Machine Body | SS202 , Material Control Parts SS304 |
Machine features:
1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.
5.Eye Mark System ,machine can cut complete logo
6.Machine Stop Automaticlly if it is out of film
7.Fine Packaging performance.low noies .clear sealing texture and strong sealing performacnce

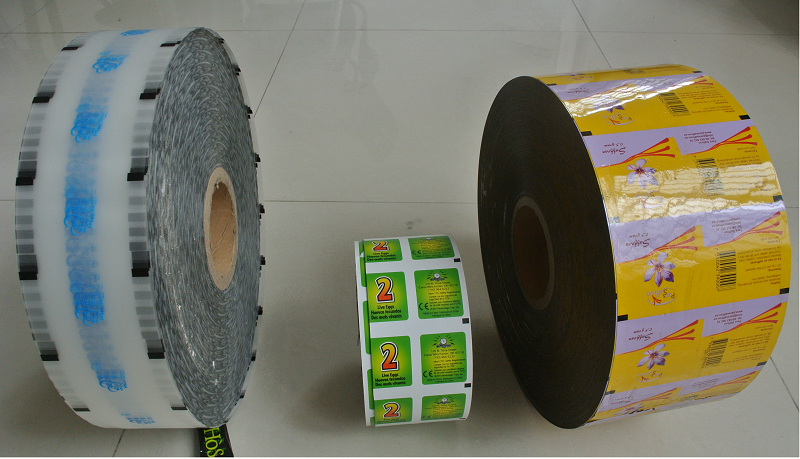

Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

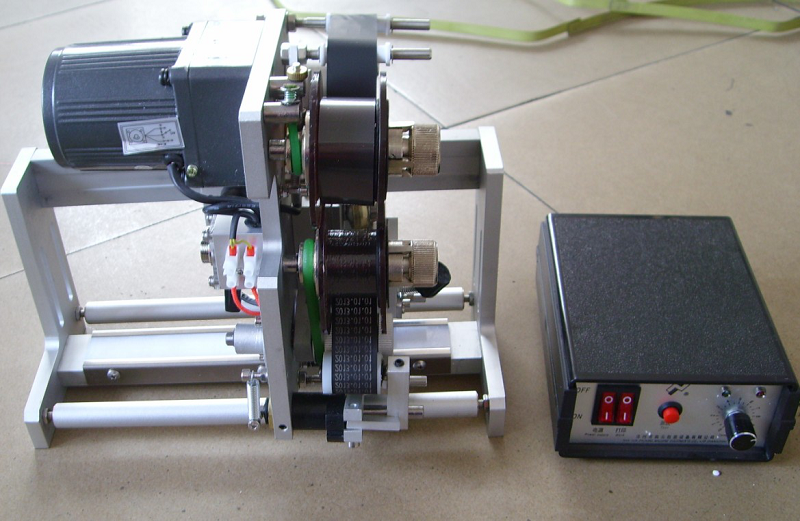

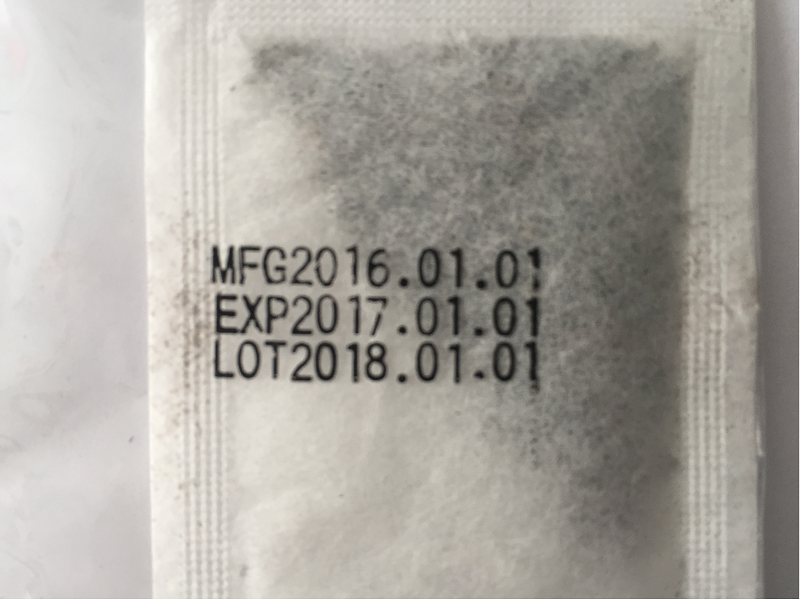

Option:Ribbon Date printer:

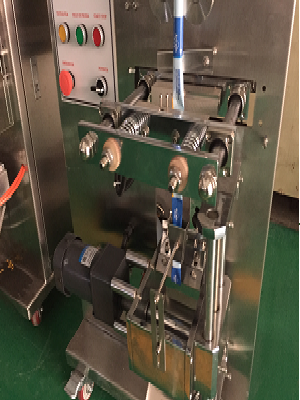

Machine Detail:

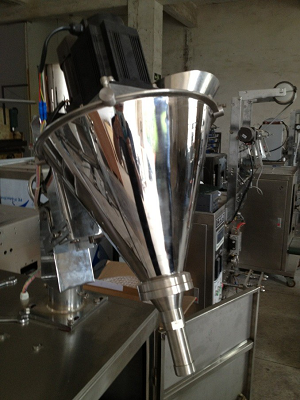

Screw feeder |

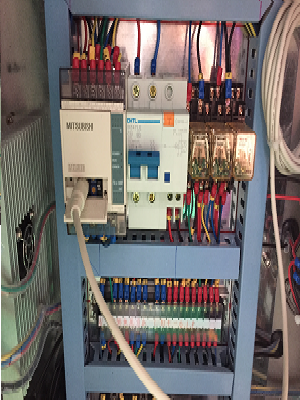

Electric Box |

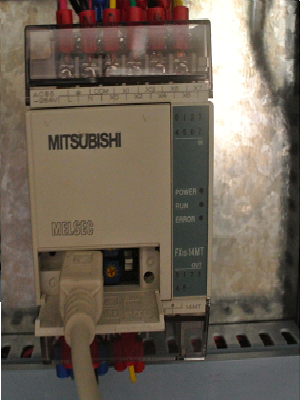

Mtsubish PLC |

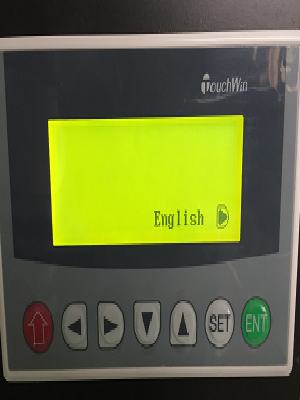

English Display |

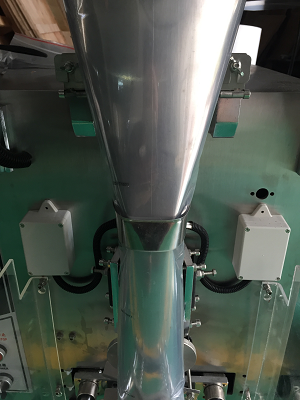

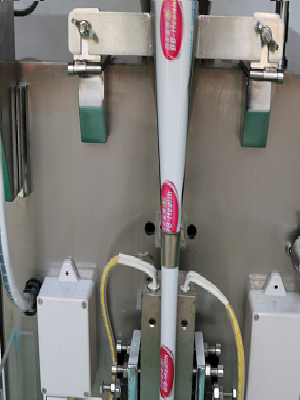

Stick bag former |
Normal bag former |

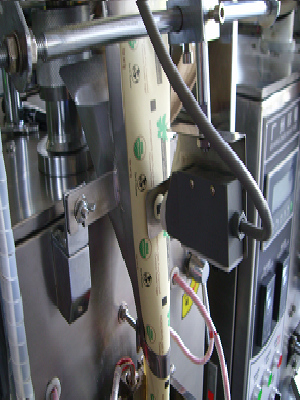

Photo Eye |

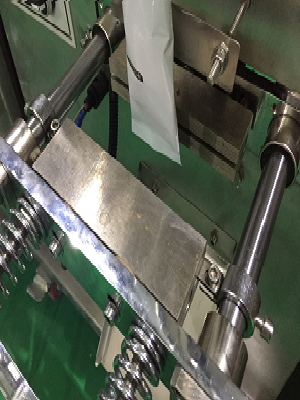

Tooth cutting mold |
Straight cutting mold |
