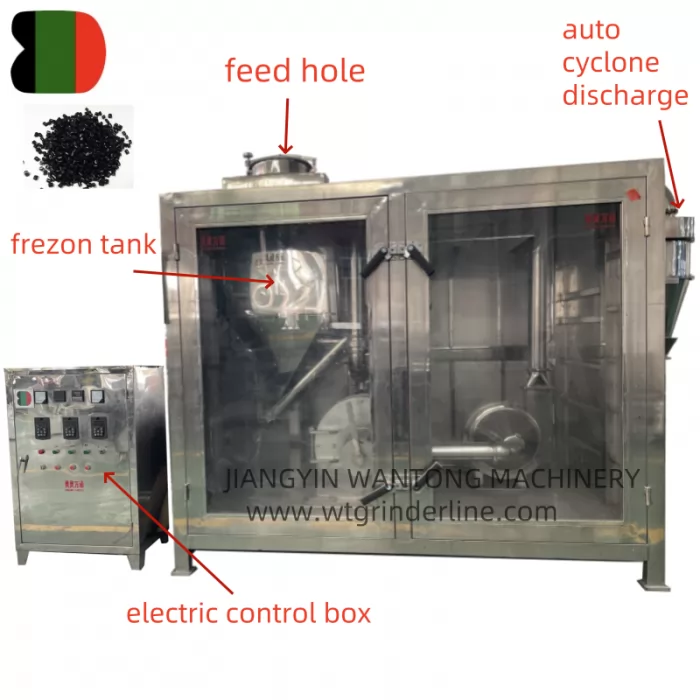

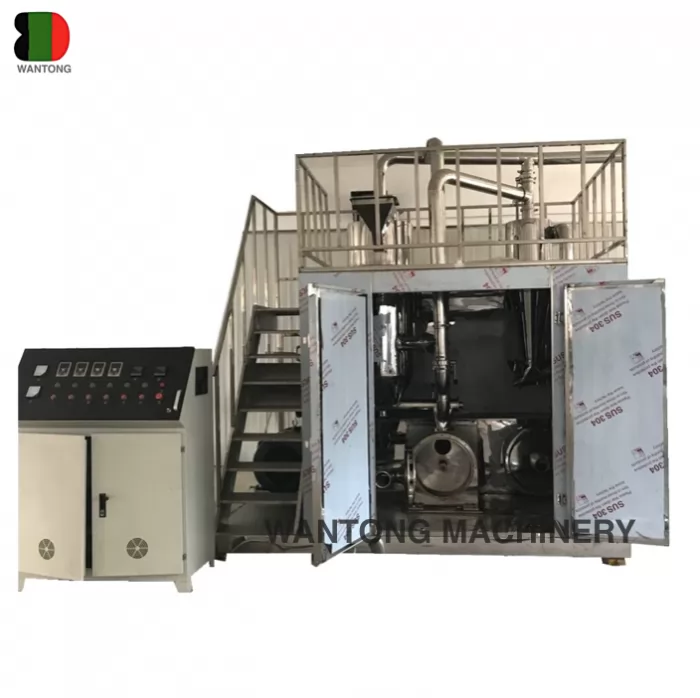

A cryogenic mill, also known as a freezer mill or cryomill, is a type of grinding equipment that uses cryogenic temperatures to achieve very fine grinding of materials that are otherwise difficult to mill at room temperature.
Cryogenic milling involves cooling materials to cryogenic temperatures using liquid nitrogen or other refrigerants, which makes them brittle and easier to grind into fine powders. This technique is particularly useful for materials that are tough, elastic, or heat-sensitive.
Cryogenic Cooling: Utilizes liquid nitrogen to cool the material and the grinding chamber.
High Precision: Achieves extremely fine particle sizes, often in the micron range.
Material Preservation: Prevents degradation or loss of volatile compounds due to heat generated during grinding.
Versatility: Suitable for a wide range of materials, including polymers, biological samples, pharmaceuticals, and food products.
Ultra-Fine Grinding: Capable of achieving particle sizes that are difficult to obtain with conventional milling methods.
Heat-Sensitive Materials: Ideal for materials that degrade or lose properties at higher temperatures.
Uniform Particle Size Distribution: Ensures consistent product quality.
Prevents Degradation: Minimizes the risk of thermal degradation or loss of volatile components.
Pharmaceuticals: Grinding of active pharmaceutical ingredients (APIs) and excipients to fine powders for better bioavailability and uniform mixing.
Biological Samples: Pulverizing biological tissues, cells, and other samples for analysis.
Polymers and Plastics: Milling of tough and elastic polymers that are difficult to grind at ambient temperatures.
Food Processing: Grinding of spices, grains, and other food products to fine powders while preserving their volatile compounds.
Chemicals: Production of fine chemical powders and pigments.
• Selection: Choose the material to be milled and prepare it as needed (e.g., size reduction to fit into the grinding chamber).
• Pre-cooling: Pre-cool the material if required to minimize thermal shock when it contacts liquid nitrogen.
• Introduction of Liquid Nitrogen: Introduce liquid nitrogen into the grinding chamber or directly onto the material. The liquid nitrogen cools the material to cryogenic temperatures (typically below -150°C or -238°F).
• Cooling Time: Allow sufficient time for the material to reach the desired low temperature. This makes the material brittle, which facilitates easier and more effective grinding.
• Grinding Mechanism: Cryo mill uses a suitable grinding mechanism, such as a ball mill, impact mill, or other cryogenic grinding equipment. The choice of equipment depends on the material properties and desired particle size.
• Cryogenic Temperature Maintenance: Ensure the grinding chamber and material are continuously cooled with liquid nitrogen during the milling process to maintain cryogenic temperatures and prevent the material from warming up.
• Particle Size Reduction: The cooled, brittle material is subjected to high-energy impact and attrition forces from the grinding media (e.g., balls, rods, or hammers), breaking it down into fine particles.
• Control Parameters: Adjust parameters such as grinding time, speed, and media size to achieve the desired particle size and distribution.
• Warming Up: Allow the milled material to gradually warm up to ambient temperature in a controlled environment to prevent condensation and absorption of moisture.
• Collection: Collect the finely ground powder from the grinding chamber. Ensure the handling environment is suitable for the specific material to avoid contamination or degradation.
• Storage Conditions: Store the finely milled powder in appropriate containers to maintain its quality and prevent exposure to moisture, air, or other contaminants.
• Handling Precautions: Use proper handling procedures to ensure safety, especially when dealing with materials that may be reactive or sensitive.
