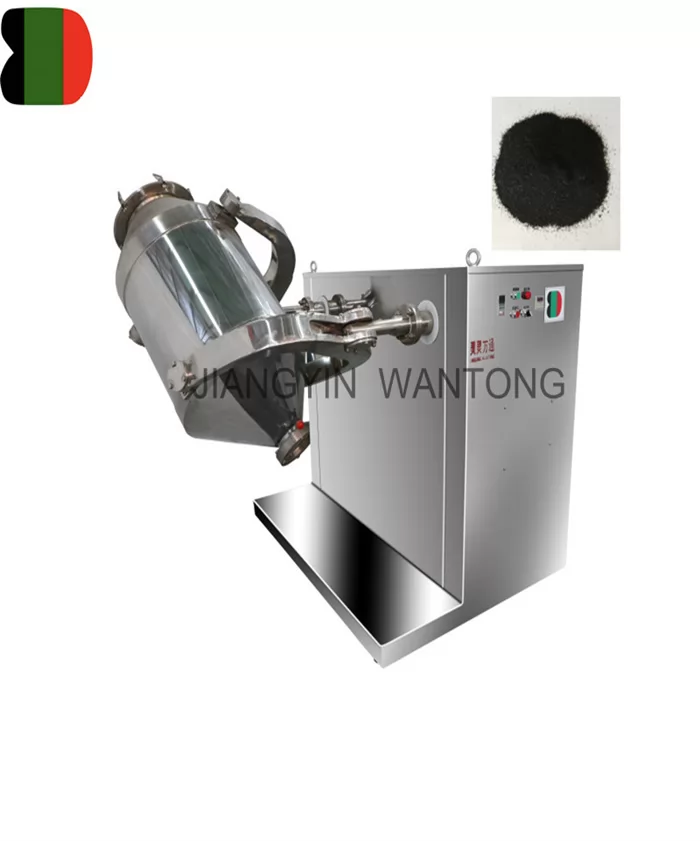

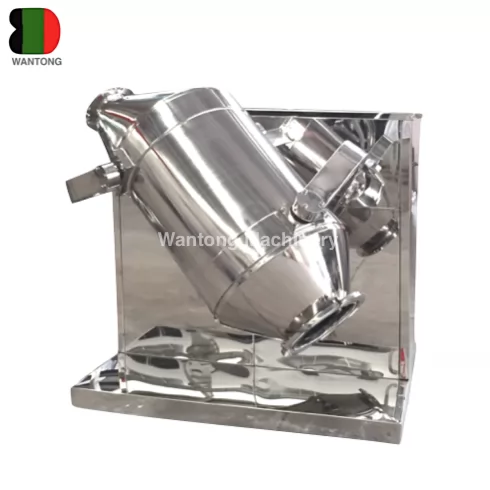

A Three-Dimension Mixer (also known as a 3D mixer or multi-directional motion mixer) is a highly efficient mixing machine that uses multi-directional movements to blend powders, granules, or other solid materials. Unlike conventional mixers, which rely on a single axis of rotation, the three-dimension mixer moves materials in three directions (up/down, left/right, forward/backward), resulting in a faster, more uniform mixing process.

Key Features of a Three-Dimension Mixer:

1. Mixing Mechanism:

• Three-Dimensional Motion: The mixer performs multi-directional movement, causing materials to tumble, flow, and spread uniformly throughout the mixing chamber. This prevents localized material buildup and ensures thorough blending.

• No Internal Agitators: The mixing is accomplished purely through the movement of the drum, without any internal mixing blades, which reduces the risk of material degradation or contamination.

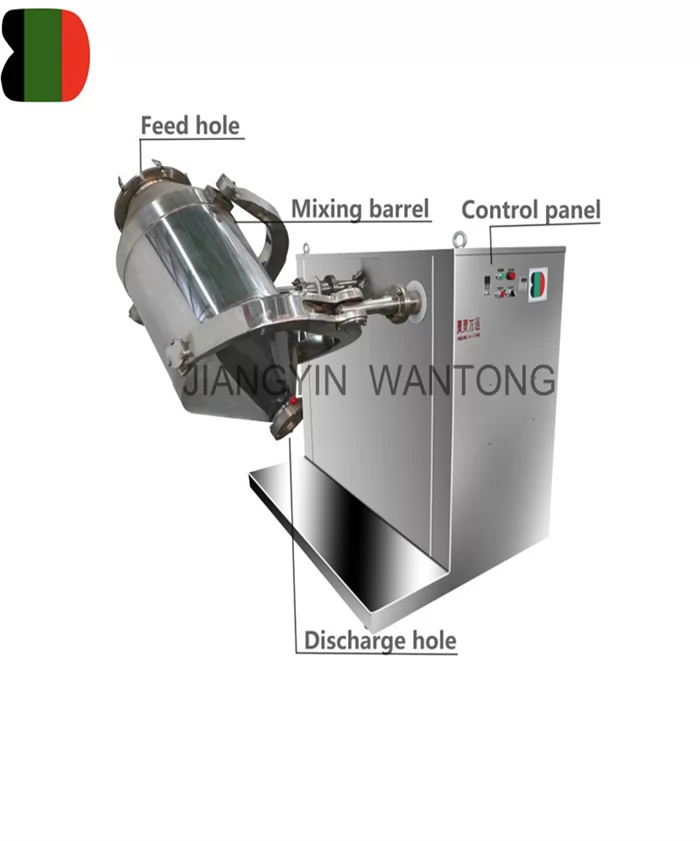

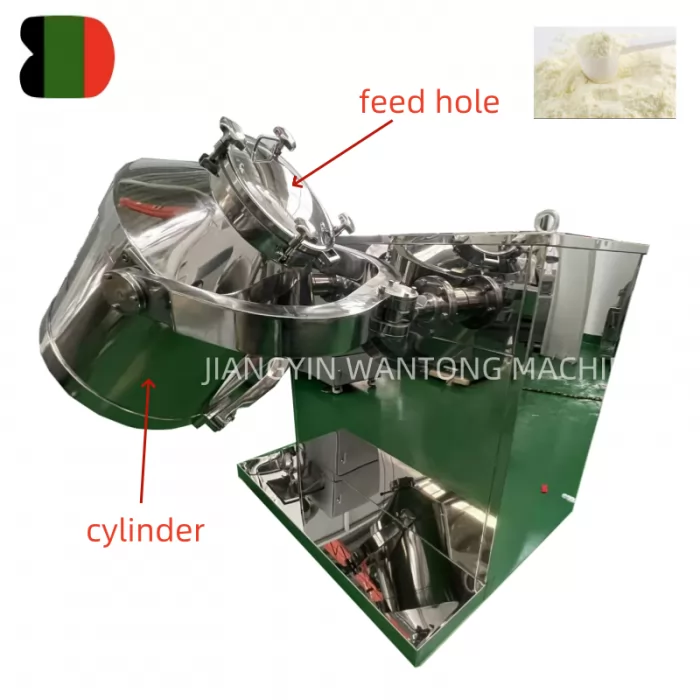

2. Mixing Chamber:

• Rotating Container: The mixing chamber is mounted on a frame that allows it to move in three directions. This chamber is usually spherical, cylindrical, or a cubic container, depending on the model.

• Material Compatibility: The chamber is typically made from stainless steel to ensure cleanliness, durability, and corrosion resistance, making it suitable for industries with strict hygiene requirements like pharmaceuticals and food production.

3. Capacity and Volume:

• Range of Sizes: Available in various capacities, ranging from laboratory-scale units (few liters) to large industrial models (several thousand liters).

• Effective Volume: It is recommended to fill 50-70% of the total chamber capacity to allow free movement of materials for optimal mixing.

4. Applications:

• Pharmaceutical Industry: Mixing of active pharmaceutical ingredients (APIs) with excipients in tablet and capsule production.

• Food Industry: For mixing spices, powders, and other food ingredients.

• Chemical Industry: Blending of fine powders and granular chemicals.

• Cosmetics Industry: 3 Dimensional Shaker Mixer is used to mix powders, pigments, and other solid materials for cosmetics production.

5. Efficiency:

• Homogeneous Mixing: The multi-directional motion ensures that the materials are blended uniformly, even for components with different particle sizes, densities, or flow properties.

• Fast Mixing Time: Compared to traditional mixers, the three-dimension mixer achieves a uniform blend in a shorter time due to its complex motion pattern.

Three Dimensional Mixer Advantages:

• No Dead Zones: Because the material is constantly moving in all directions, there are no dead zones where unmixed materials can accumulate.

• Gentle Mixing Action: The 3D movement is gentle, making it ideal for fragile or sensitive materials that could be damaged by high-speed or aggressive mixing.

• No Segregation: The materials are evenly distributed throughout the mixing chamber, minimizing the risk of particle segregation.

• Low Energy Consumption: The Three Dimensional Motion Mixer (3D Mixer) requires less energy compared to high-speed mixers, as it relies on a tumbling action rather than high-speed rotation.

Three Dimensional Blender Benefits in Various Industries:

Pharmaceuticals: Ensures consistent and uniform drug formulations.

Food Processing: Ideal for mixing ingredients with delicate textures.

Chemicals: Provides even distribution for chemical reactions or material blending.

The Three-Dimension Mixer offers excellent performance in industries requiring uniform and gentle mixing of powders and granules. If you need more specific recommendations or customization options, feel free to ask!
