  • SYH pharmaceutical powder 3d mixer
  • SYH pharmaceutical powder 3d mixer

SYH pharmaceutical powder 3d mixer

The SYH 3d pharmaceutical powder mixer is widely used for the mixing of powder materials in the industry of pharmacy, chemical industry, food and so on; as well as for quick and even mixing of various materials in different granule size and gravity.

Products Details

1. MAIN APPLICATION of SYH 3d pharmaceutical powder mixer
SYH 3d pharmaceutical powder mixer is widely used for the mixing dry pharmacy, chemical industry, food, cosmetic powder etc. Like tea powder, food grade dry powder, industrial powder, dry milk powder, pills, milk powder,pharmaceutical powder etc.

2.FEATURES of SYH 3d pharmaceutical powder mixer
With its unique three-dimensional swing, parallel moving and rolling methods, SYH 3d pharmaceutical powder mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the advantages of smooth running, low noise, high loading quantity and short mixing time as well.

We will give you our factory wholesale price.

3.WORKING PRINCIPLE of SYH 3d pharmaceutical powder mixer

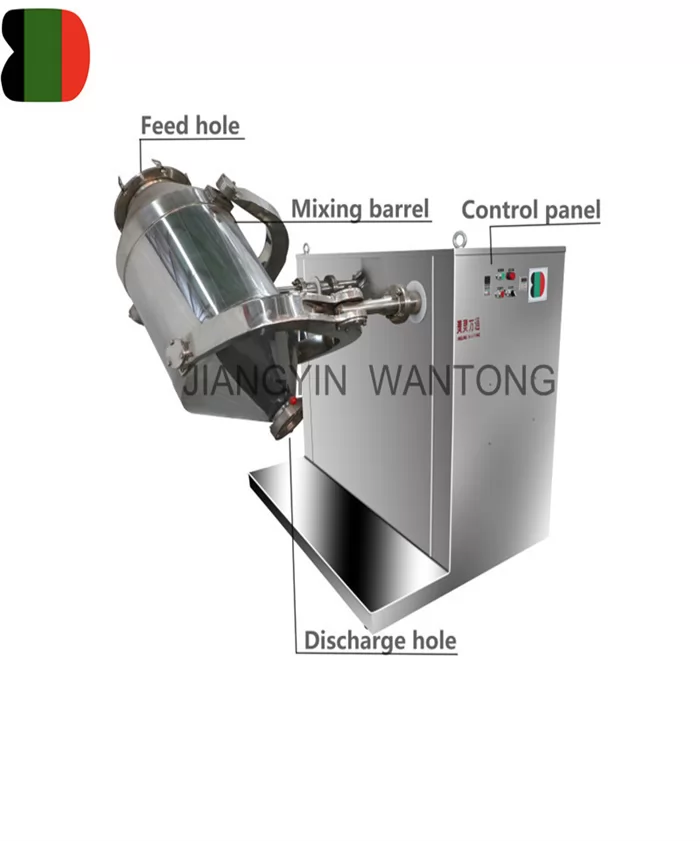

This 3d pharmaceutical powder mixer is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circular, radical and axially, achieving uniform mixing of different varieties of material.

4.TECHNICAL PARAMETERS of SYH 3d pharmaceutical powder mixer

TypeSYH-10SYH-50SYH-100SYH-200SYH-400SYH-600SYH-800SYH-1000
Barrel volume
(L)
10501002004006008001000
Max. loading volume (L)84080160320480640800
Max. loading weight(kg)52550100200300400500
Spindle speed(r/min)0-30
Power(KW)0.371.11.52.245.57.57.5
Overall size(L*W*H)
(mm)
600*1000*7001000 *1400 *11001200*1700*12001400 *1800 *15001800 *2100 *18001900 *2100 *21002200 *2400 *22502250*2600*2400
Weight (kg)1503005008001200150020002500

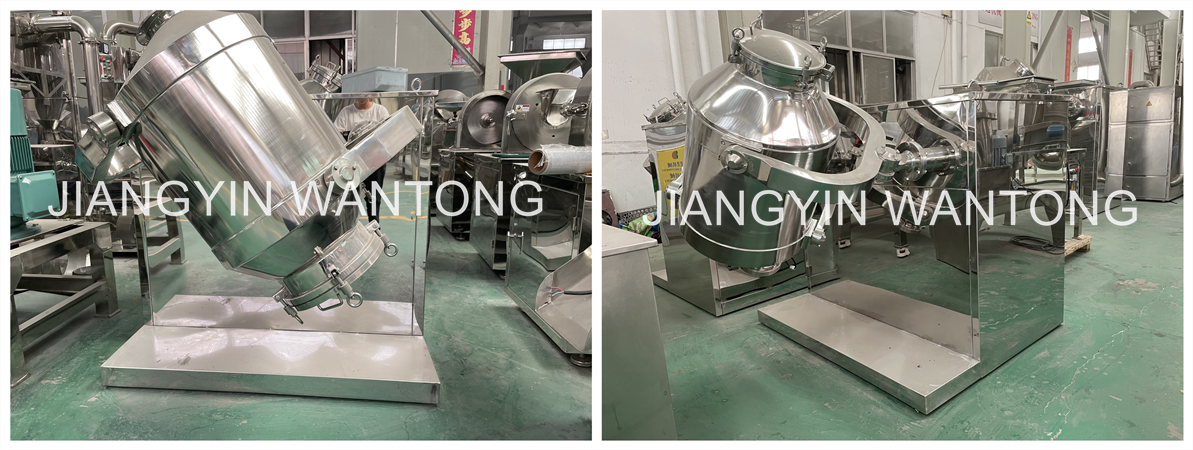

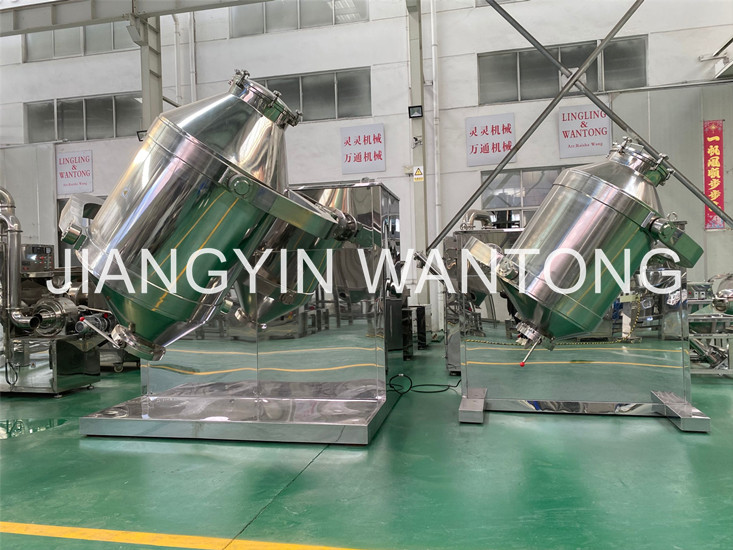

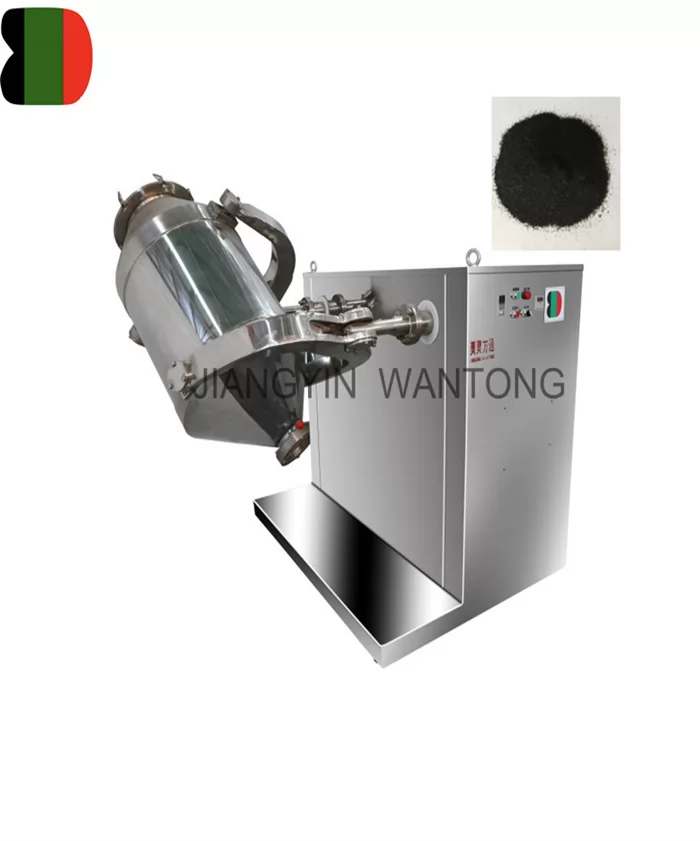

Products Picture



SYH66 3d fertilizer powder granules mixer blender mixing blending machine

SYH66 3d fertilizer powder granules mixer blender mixing blending machine
