  • BTJ high quality tablet coating machine

BTJ high quality tablet coating machine

It is kind of equipment integrating elegance, high efficiency, energy-saving, safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills (including micro-pills, small pills, water-bindered pills, drip pills and granulated pills)with sugar, organic film, water soluble film, slow and controlled release film in the fields of pharmacy, food and biology etc. The machine is equipped with the programmable PLC (machine and person interface), with which its operation process and process parameters such as negative pressure and temperature can be automatically controlled. It is easy to operate, with reasonable and advanced process during run of the machine. Main machine, hot-air cabinet, exhaust cabinet and the normal mixing drum are all made of high quality, stainless steel, which conforms to "GMP" requirements.

Products Details

Introduction

It is kind of equipment integrating elegance, high efficiency, energy-saving, safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills (including micro-pills, small pills, water-bindered pills, drip pills and granulated pills)with sugar, organic film, water soluble film, slow and controlled release film in the fields of pharmacy, food and biology etc. The machine is equipped with the programmable PLC (machine and person interface), with which its operation process and process parameters such as negative pressure and temperature can be automatically controlled. It is easy to operate, with reasonable and advanced process during run of the machine. Main machine, hot-air cabinet, exhaust cabinet and the normal mixing drum are all made of high quality, stainless steel, which conforms to "GMP" requirements.


The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in a clean and closed drum of the film coating machine. The coating mediums stirred in the   stirring drum are sprayed on tablets through the spray gun at the inlet under the action of crawler pump. Meanwhile hot air filtration are inhaled through the air distributing pipe at the center of the drum and flowed through tablets around the fan blade. Under the action of air exhaust and negative pressure, hot air are exhausted from the another side of the air distributing pipe and discharged after dust abatement. So these coating mediums on the surface of tablets get dry quickly, forming a coat of firm, fine and smooth film. Automatically controlled by PLC, it is in normal operation.


Technical Data

ItemBGB-6BGB-10BGB-35BGB-80BGB-150BGB-250BGB-350BGB-500BGB-650BGB-800BGB-1000
Max.capacity kg/batch51035801502503505006508001000
Barrel speed (rpm)2-352-352-252-252-202-182-142-102-102-82-8
Barrel motor (KW)0.50.550.751.12.23345.55.55.5
Machine dimensions(mm)780×610
×1400
900×700
×1400
1050×830
×1900
1250×1010
×19500
1650×1300
×2250
1810×1550
×2440
1810×1620
×2550
1970×1840
×2580
1970×2060
×2650
2300×2550
×2650
2550×2760
×2800
Purified hotair volume (m³/h)450600200025003400400045005200600068007500
Purified hotair fan (KW)0.550.550.552.750.751.11.11.51.52.23
Temperature regulation range of clean hot air≤80℃≤80℃≤80℃≤80℃≤80℃≤80℃ ≤80℃≤80℃≤80℃≤80℃≤80℃
Electric heating exchanger power (KW)56101425323642506080
Dedusting exhaust air volume (m³/h)600800260032004000520058006700780088009700
Dedusting exhaust air fan (KW)2.22.235.57.5111518.52230
motor4KW
380V
5.1KW
380V
6.8KW
380V
7.1KW
380V
11KW
380V
15.2KW
380V
18.5KW
380V
22.3KW
380V
27.5KW
380V
31KW
380V
43KW
380V
Air compressor air(Mpa)>0.60>0.60>0.60>0.60>0.60>0.60>0.60>0.60>0.60>0.60>0.60
Steam pressure(Mpa)>0.40>0.40>0.40>0.40>0.40>0.40>0.40>0.40>0.40>0.40>0.40
Air consumption(kg/h)20304080100100130200250320400



Products Picture


                            Sample coated product photo

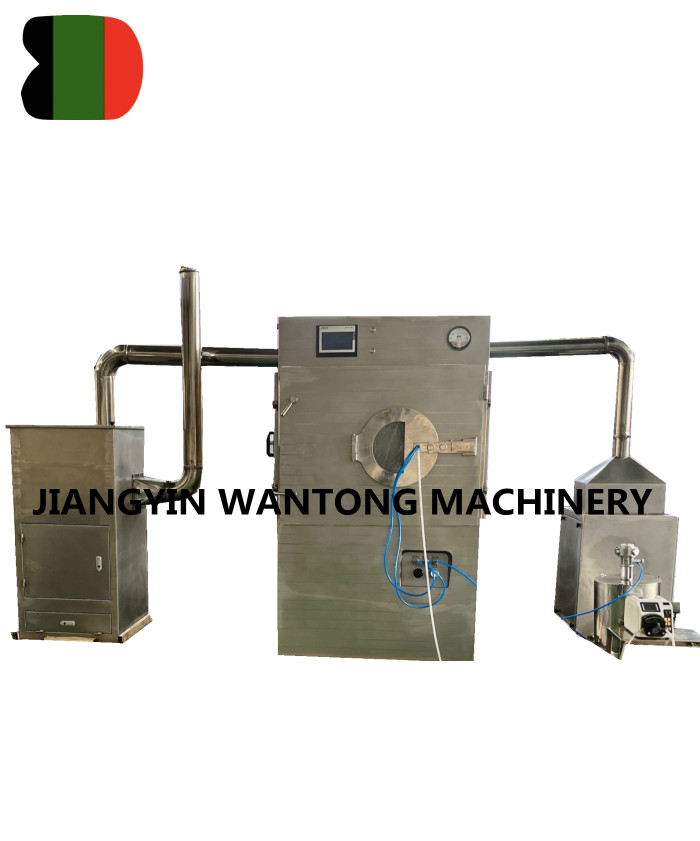

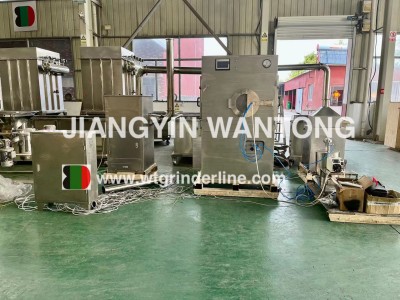

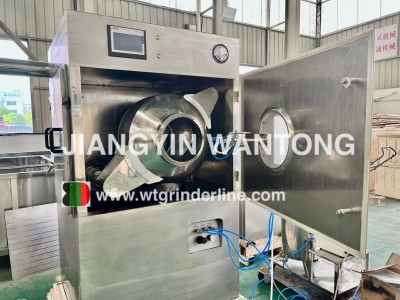

Machine pictures
