CH Z Arm Mixer
Home > Products > Mixing Machine > CH Z Arm Mixer
  • CH Z Arm Mixer
  • CH Z Arm Mixer

CH Z blade liquid jelly powder ribbon sprial mixer mixing machine

The whole machine is made of stainless stain, its horizontal type mixer. It's widely used for mixing of powdery or paste material in pharmaceutical, chemical, foodstuff.

Products Details

1.Main Application and Working Principle

The whole machine is made of stainless stain, its horizontal type mixer. It's widely used for mixing of powdery or paste material in pharmaceutical, chemical, foodstuff.

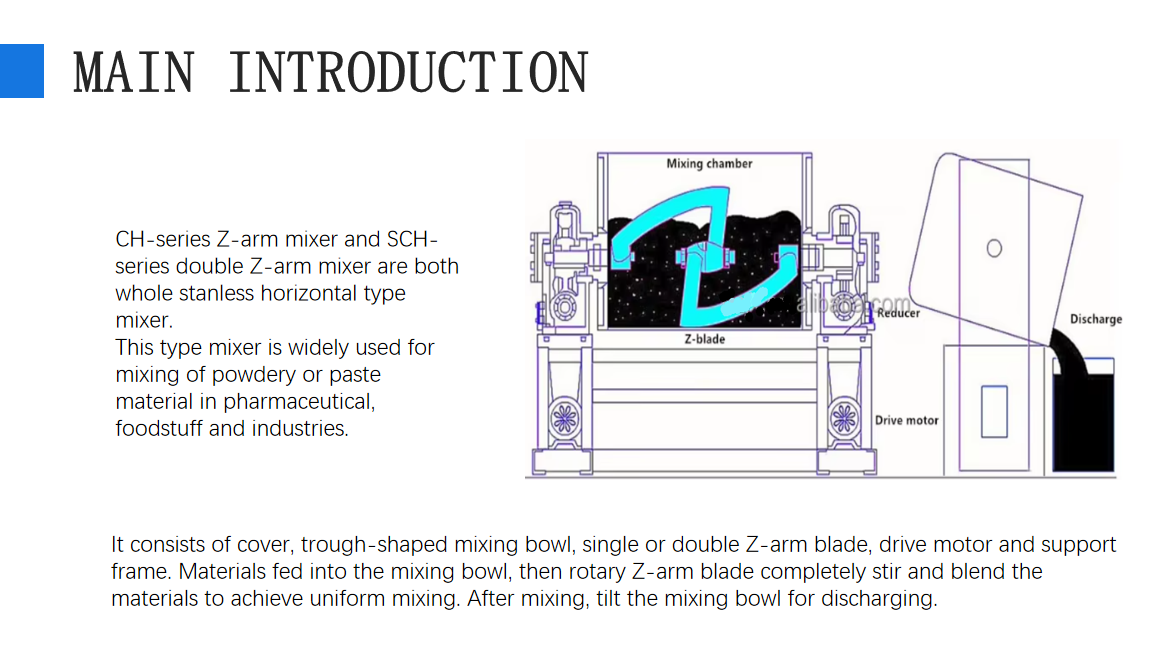

The Machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.

2.Structure Features

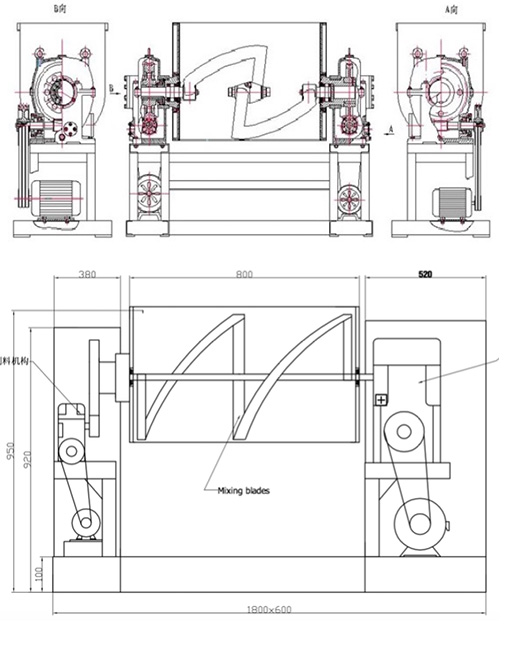

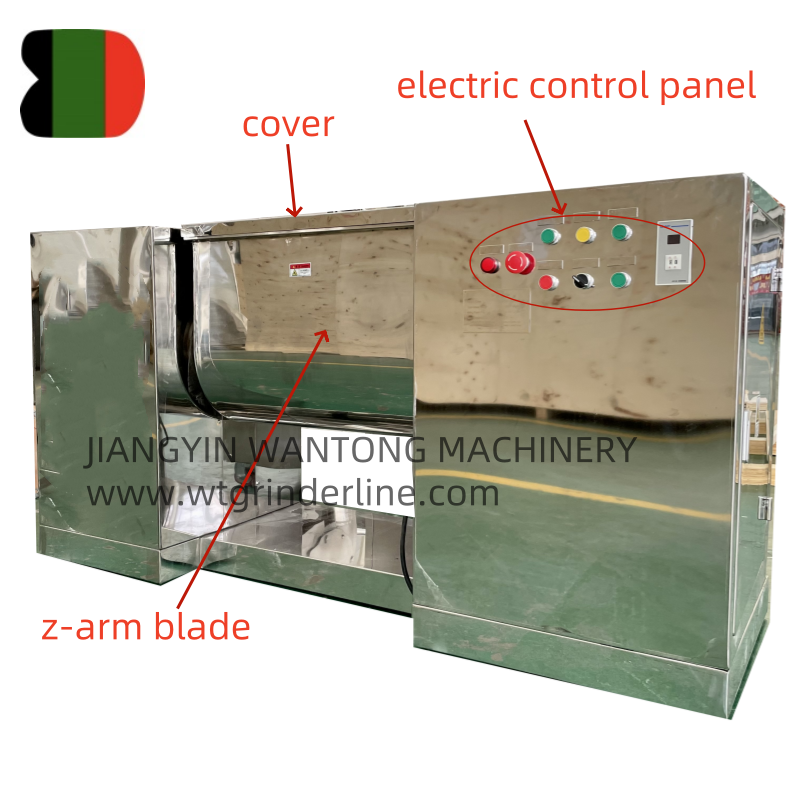

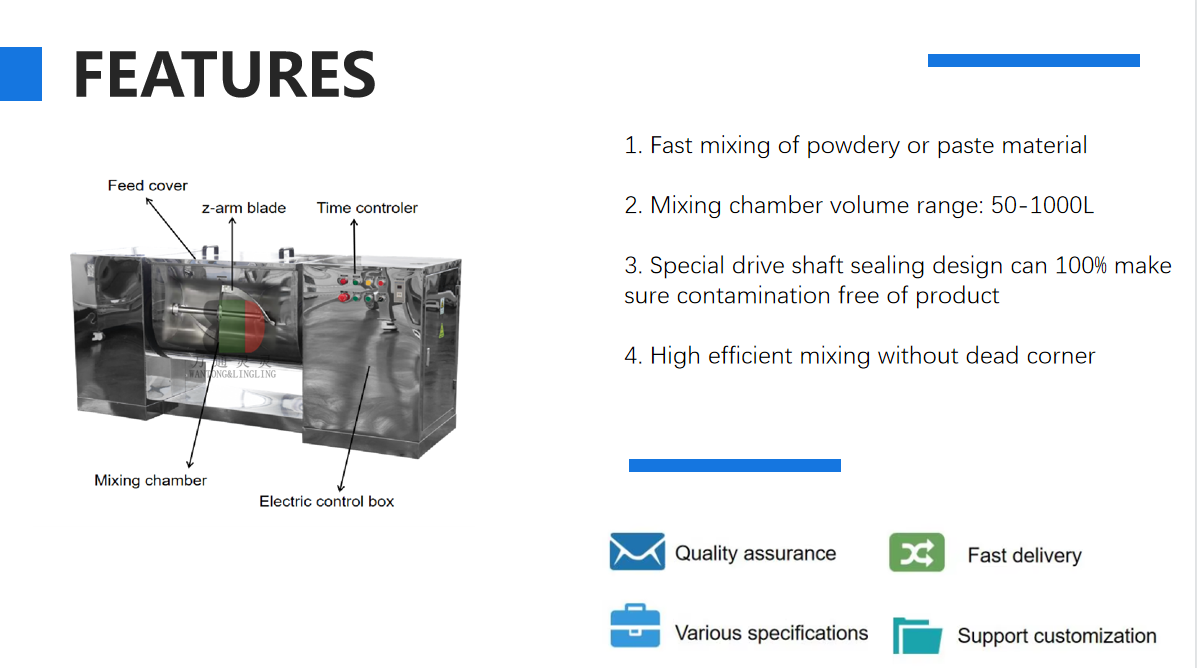

CH series groove mixer, mainly composed by the cell body and agitator, bracket, flip part, transmission part and electrical components.

The whole machine is made of stainless stain. The cell body is formed with thick plate dense welding, there are sealing pieces set at the both ends of agitating shaft to ensure the cleanliness of materials.

Mixing and automatic flip part are designed two independent power source, and in the automatic flip part is decorated with automatic positioning insurance device, make flip to discharge process within the corner 105°, thus ensuring safe and reliable of moving parts.

Stents part selects shape steel welding with sufficient rigidity, and decorate all the transmission parts, electronic components inside its frame, stents appearance using SUS304-2B plank packet. The machine has the characteristics like compact structure, simple operation, and beautiful shape; cover a small area, convenient to clean, mixing effect quantity is good and so on.

3.Technical Parameter

Type50100150200300400500600
Paddle shapeS-style single paddle
Working volume(L)50100150200300400500600
Mixing speed(r/min)24
Flip angle<105°
Mixing power(kw)1.52.2345.55.57.511
Pouring motor power(kw)0.370.550.550.751.11.11.52.2
Overall size (mm)1200×500×9501400×580×10001800×600×11502000×650×12002200×700×12502280×750×12502350×800×13002400×850×1350
Weight(kg)280350410450520580680750

CH Z Arm Mixer

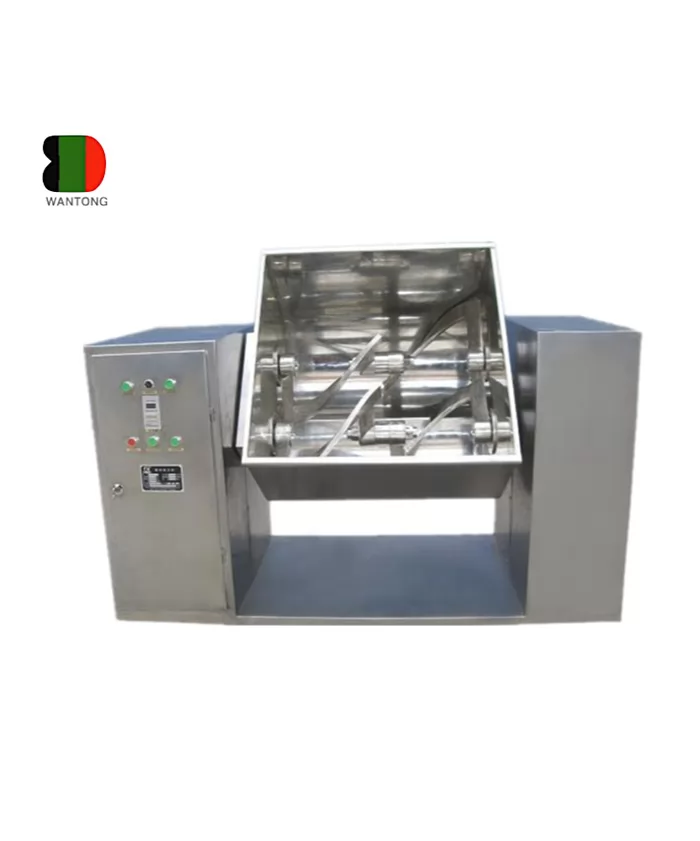

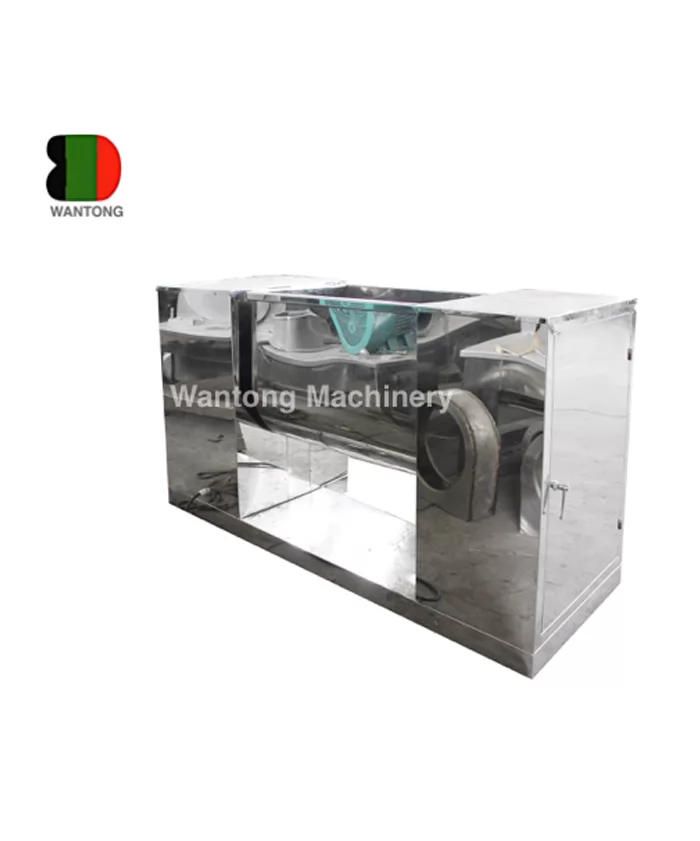

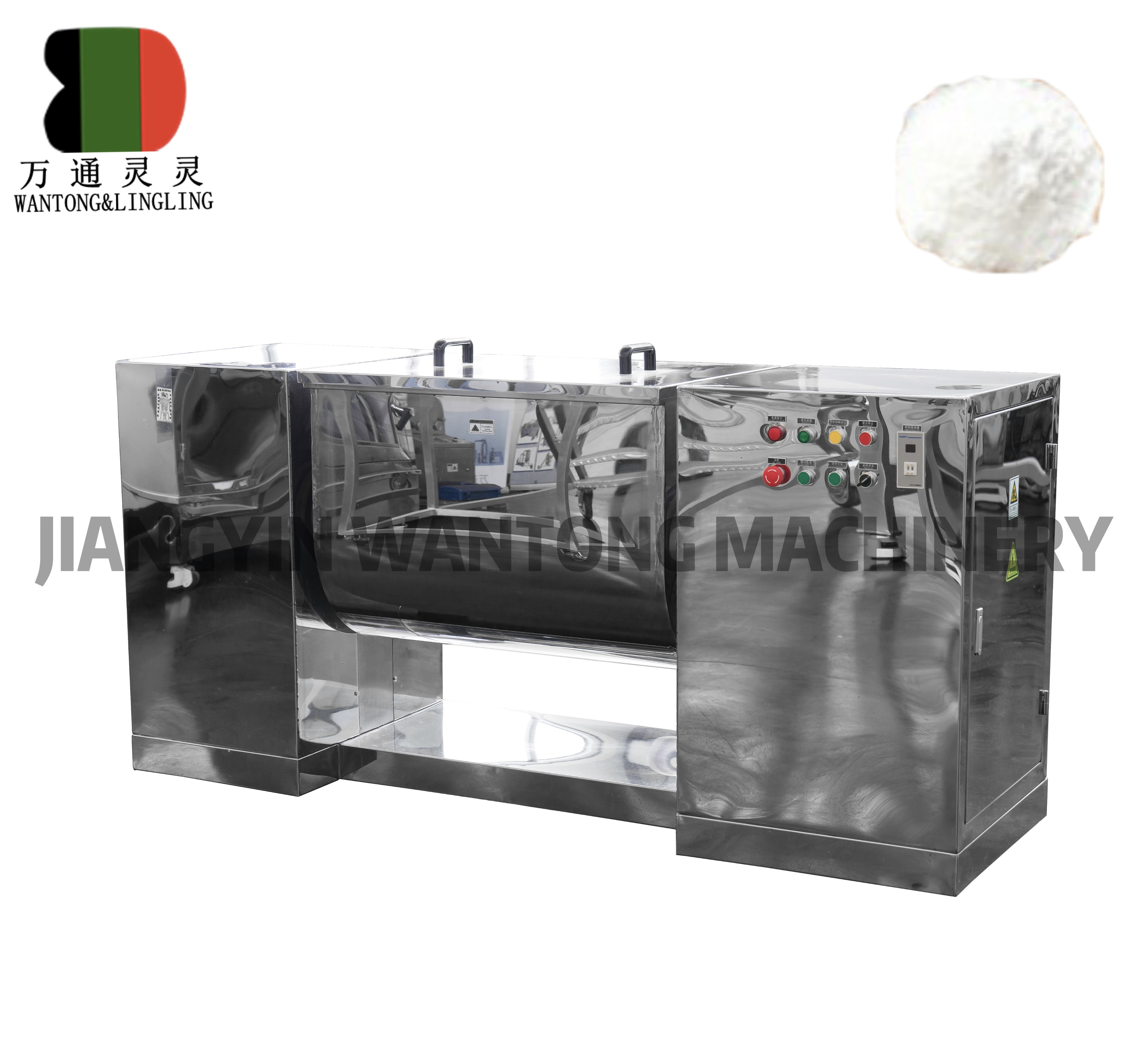

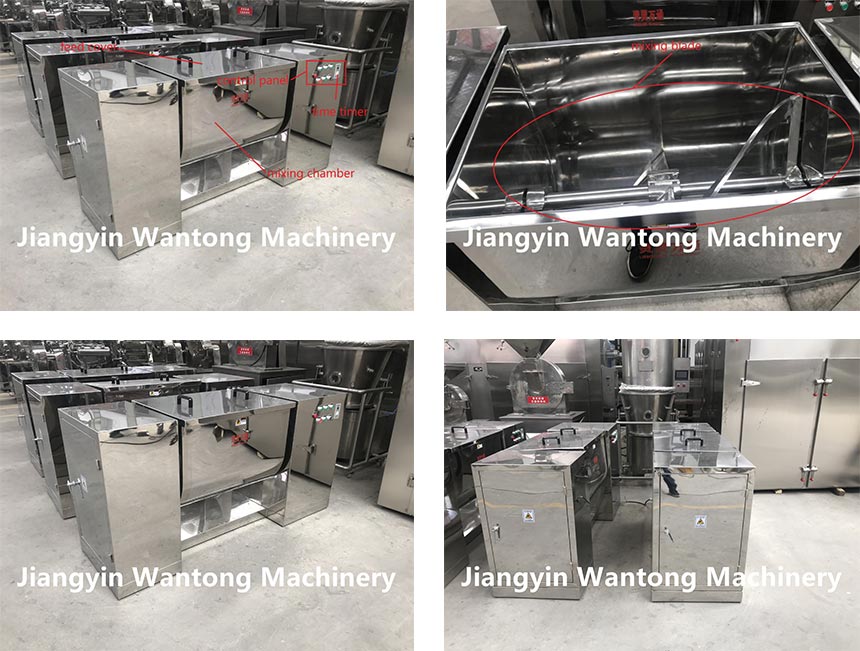

Products Picture

CH Z Arm Mixer
