CH66 z arm mixer

The z arm mixer is made of stainless steel, its horizontal type mixer. The dry powder mixer blender z arm mixing blending machine is widely used for mixing of powdery or paste material in pharmaceutical, chemical, foodstuff.

Products Details

1.Main Application and Working Principle of CH z arm mixer

The z arm mixer is made of stainless steel, its horizontal type mixer. The z arm mixer is widely used for mixing of powdery or paste material in pharmaceutical, chemical, foodstuff.

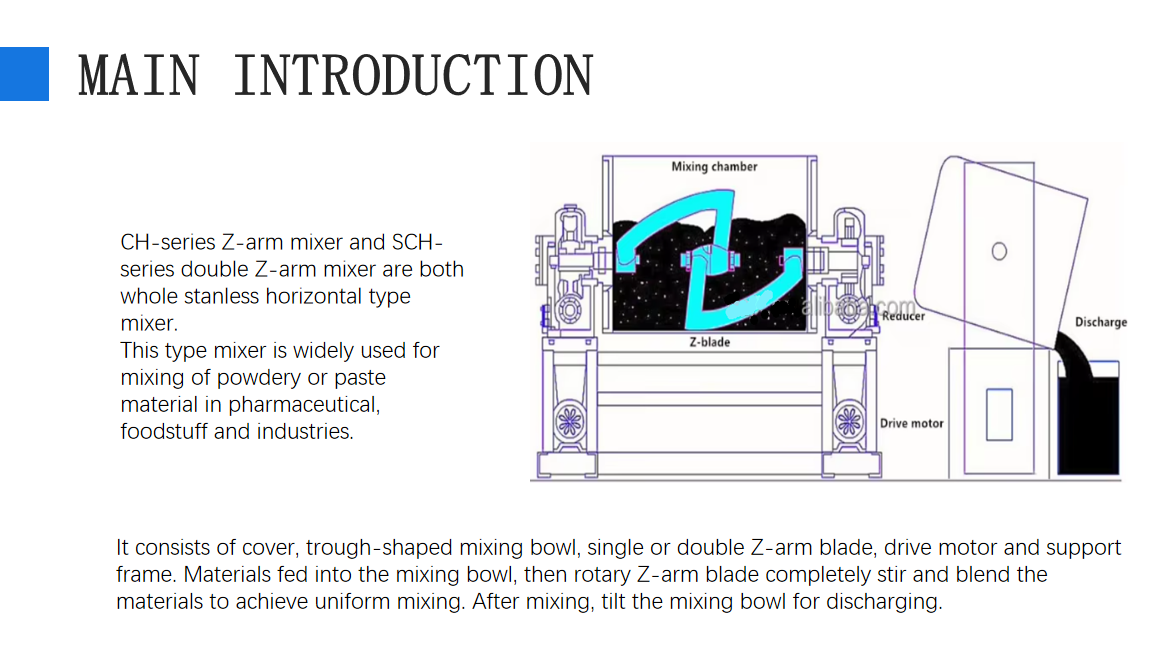

The Machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.

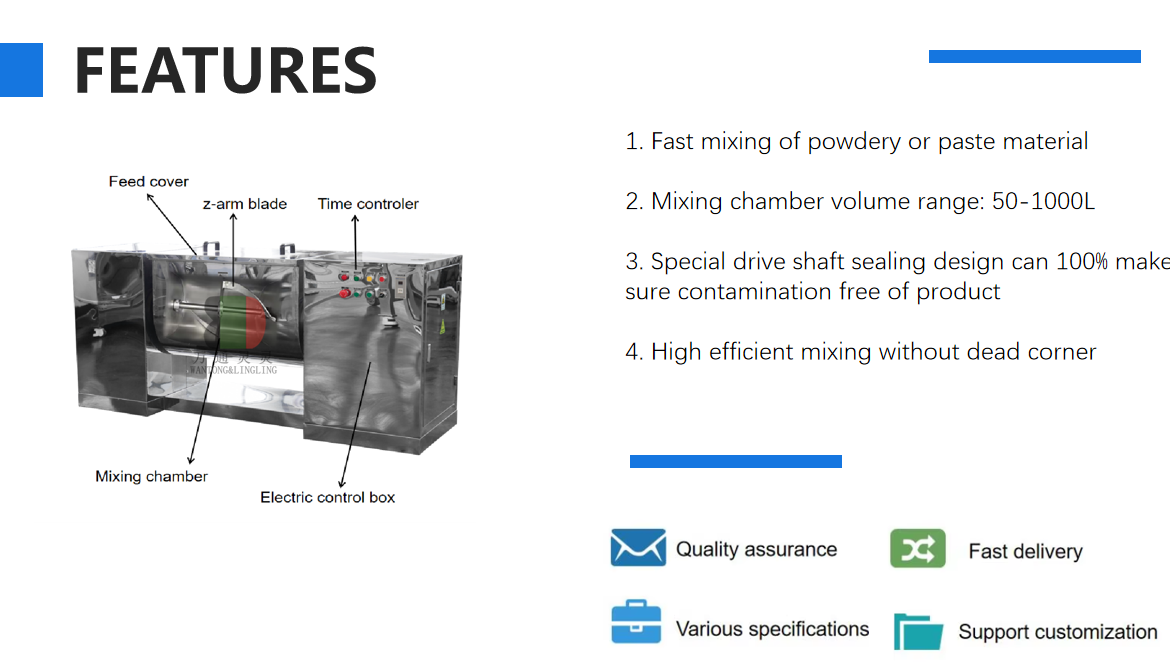

2.Structure Features of CH z arm mixer

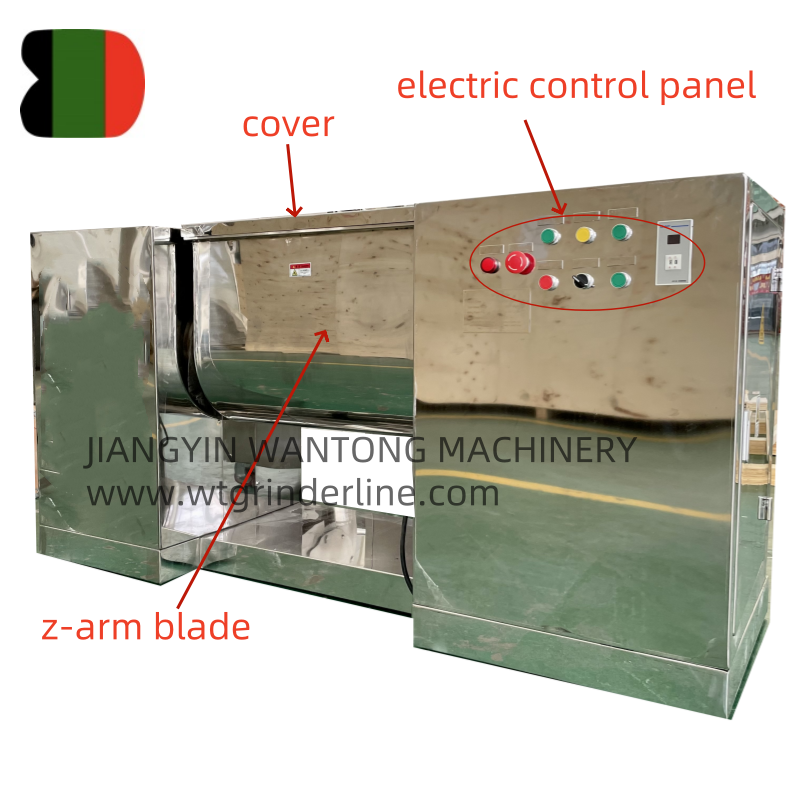

CH series groove mixer, mainly composed by the cell body and agitator, bracket, flip part, transmission part and electrical components.

The z arm mixer is made of stainless steel. The cell body is formed with thick plate dense welding, there are sealing pieces set at the both ends of agitating shaft to ensure the cleanliness of materials.

Mixing and automatic flip part are designed two independent power source, and in the automatic flip part is decorated with automatic positioning insurance device, make flip to discharge process within the corner 105°, thus ensuring safe and reliable of moving parts.

Stents part selects shape steel welding with sufficient rigidity, and decorate all the transmission parts, electronic components inside its frame, stents appearance using SUS304-2B plank packet. The z arm mixer has the characteristics like compact structure, simple operation, and beautiful shape; cover a small area, convenient to clean, mixing effect quantity is good and so on.



3.Technical Parameter of CH z arm mixer

Type50100150200300400500600
Paddle shapeS-style single paddle
Working volume(L)50100150200300400500600
Mixing speed(r/min)24
Flip angle<105°
Mixing power(kw)1.52.2345.55.57.511
Pouring motor power(kw)0.370.550.550.751.11.11.52.2
Overall size (mm)1200×500×9501400×580×10001800×600×11502000×650×12002200×700×12502280×750×12502350×800×13002400×850×1350
Weight(kg)280350410450520580680750

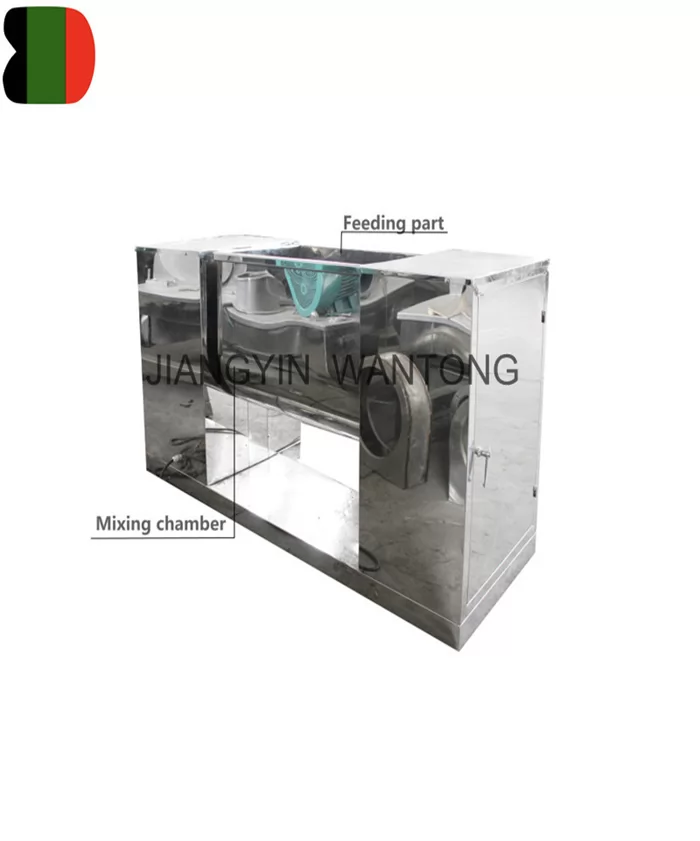

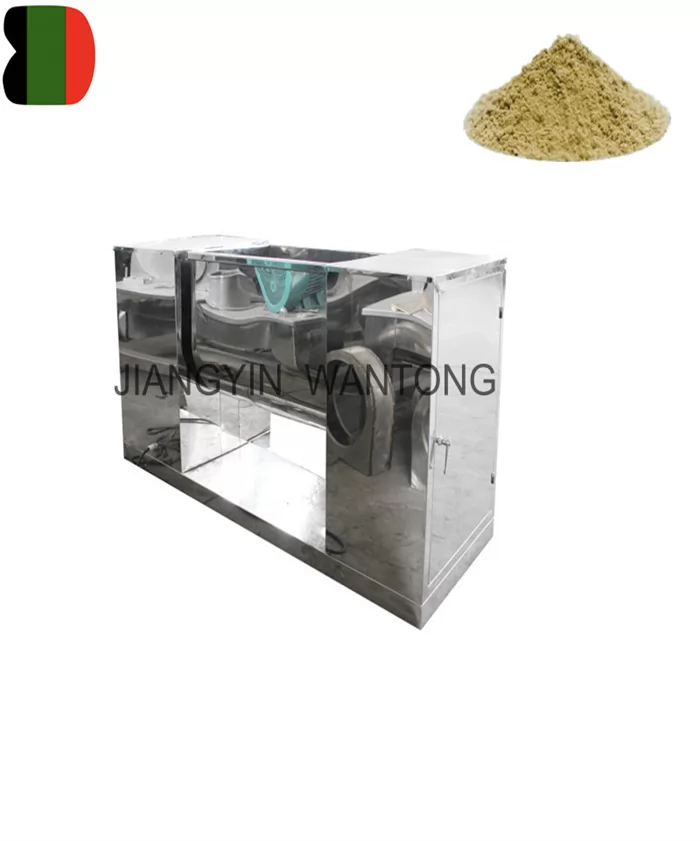

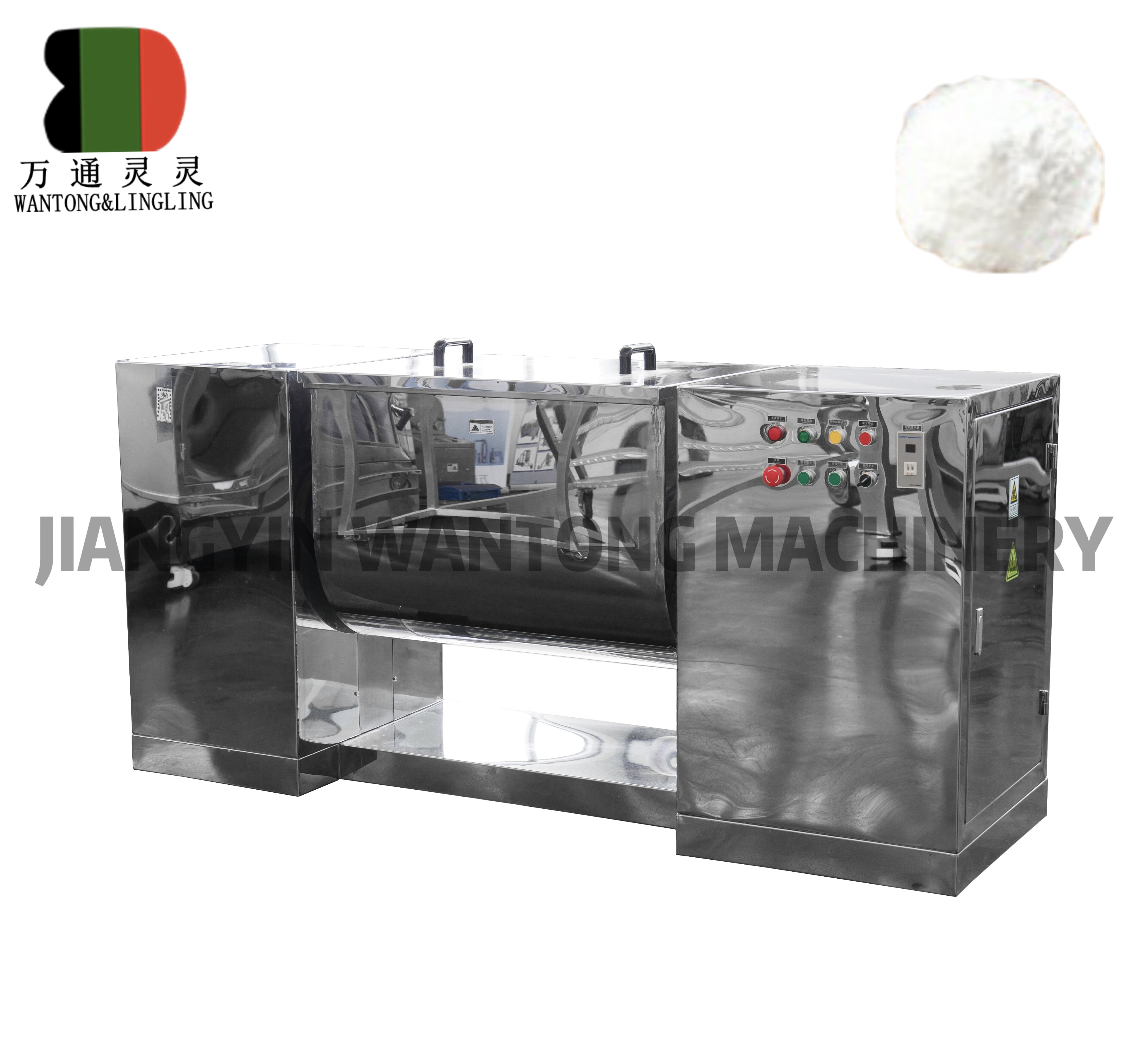

Products Picture



 CH66 washing powder mixer blender z arm mixing blending machine

CH66 washing powder mixer blender z arm mixing blending machine
