Continously Vibrating Fluid Bed Dryer
Home > Products > Dryer/Dehydrator/Drying Machine > ZG > Continously Vibrating Fluid Bed Dryer
  • continously vibrating fluid bed dryer

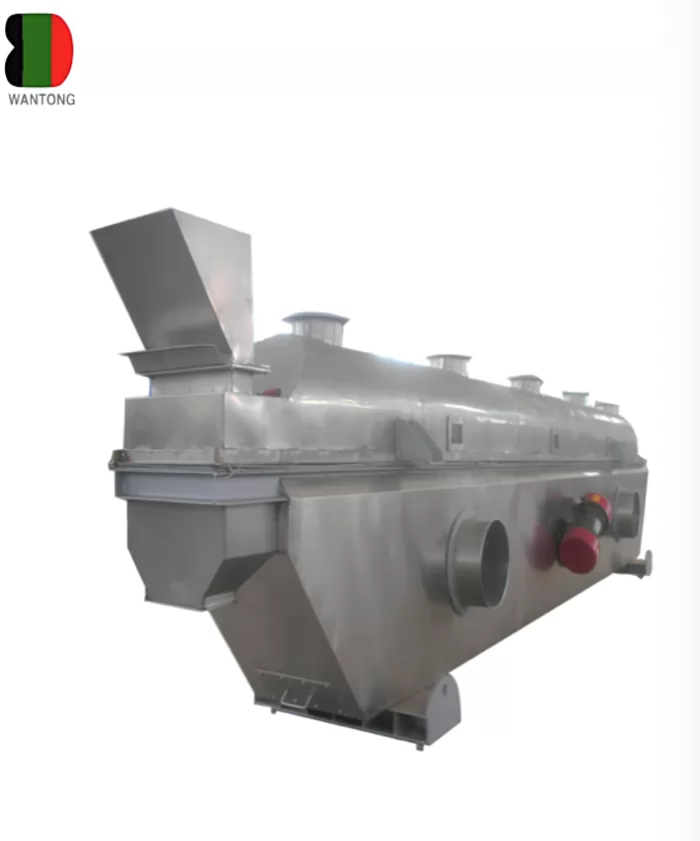

continously vibrating fluid bed dryer

This type is suitable for drying, cooling and humidifying of materials in various industries, such as chemical industry, pharmacy, food, fruit, beverage, seeds, slag, etc., and can also be used for drying, cooling and humidifying operations simultaneously.

Products Details

1.MAIN APPLICATION:

This type is suitable for drying, cooling and humidifying of materials in various industries, such as chemical industry, pharmacy, food, fruit, beverage, seeds, slag, etc., and can also be used for drying, cooling and humidifying operations simultaneously.

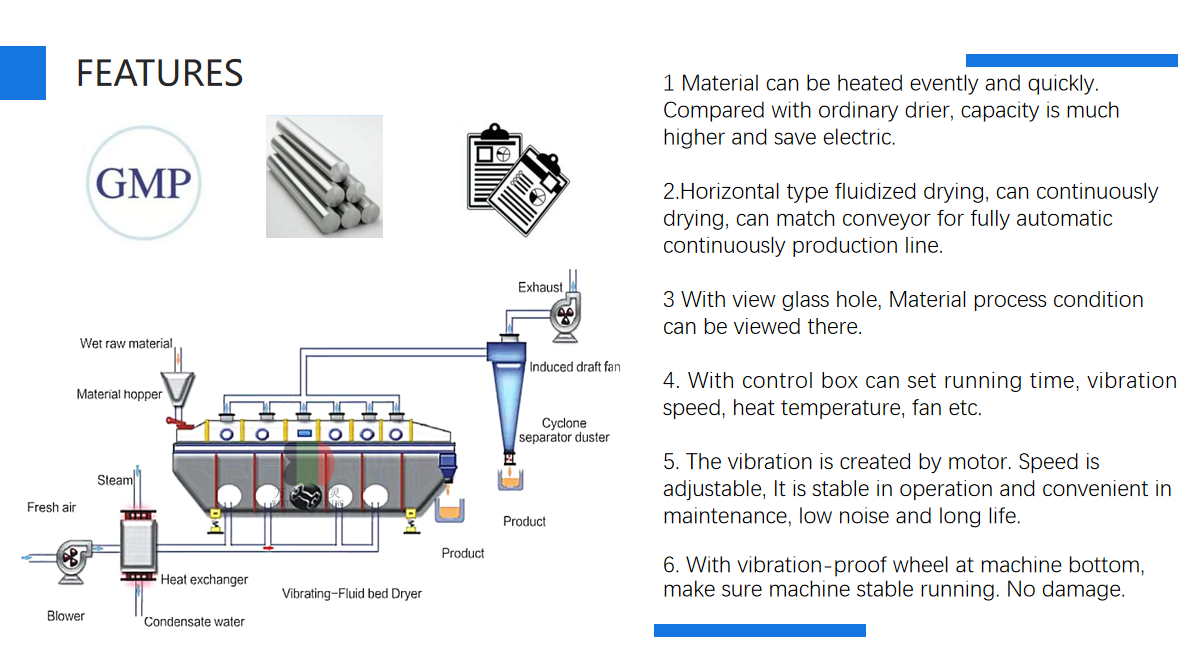

2.FEATURE:

1, Vibration adopts vibration motor drive, smooth operation, easy maintenance, low noise, long life.

2, Flow uniformity, no dead space and blow through phenomenon, can get uniform drying, cooling, humidification products.

3, Good adjustability, wide applicability. The thickness of the material layer and the moving speed in the machine as well as the change of the full amplitude can realize stepless regulation.

4, The damage to the surface of the material is small, can be used for the drying of brittle materials, material particles irregular also does not affect the work effect.

5, The structure of the whole seal, effectively preventing the material and ruined gas cross infection, clean working environment, continuous production.

6, High mechanical efficiency and high thermal efficiency, energy saving effect is better than the general drying can be set up energy saving 30%-60%.





3.TECHNICAL DATA:

ModelBed bodyDimensionVibrate power(kw)Weight(kg)

L×W(mm)L×W×H(mm)

3×303000×3003505×890×18302×0.751240
3×454500×3005005×1116×18302×0.751570
4.5×454500×4505005×1132×19001.1×21670
6×606000×6006510×1286×19402×1.52743
6×757500×6008010×1286×19402×2.22886
9×606000×9006510×1830×21102×2.23540
9×757500×9008010×1830×21102×3.74219
12×757500×12008010×2400×24502×5.55223
15×757500×15008010×2850×25702×5.56426
18×808000×18008520×3250×31002×7.58600











4.EQUIPMENT CONFIGURATION

No.ItemSpecificationQty.Supplie
1Bed body bracket16#
SELF
2Bed body sealing materialA3, s=2mm1MARKET
3Duct materialSUS304 s=2mm1MARKET
4Air ductSUS304 s=2mm
SELF
5Bed materialSUS304 s=3mm1MARKET
6Perforated plateSUS304 s=3mm1SELF
7Mat netSUS304  120mesh1SELF
8Blower (air door)
1MARKET
9Induced draft fan (air door)
1MARKET
10Vibrating motor
2MARKET
11Steam radiatorSUS304  1MARKET
12Soft connectionHeat resistant cloth5MARKET
13Adjusting damperSUS3041SELF
14Strong shock proof bowlRubber20MARKET
15Shock proof bowl support25#2SELF
16Vibration motor plateA3  2SELF
17Mirror glassØ150x126SELF
18Vibration motor plate bolt

MARKET
19Fixed boltM6x20
MARKET
20Bed sealsilicon rubber s=3mm
MARKET
21Air outlet pipeSUS3044SELF
22Intake ductSUS304
SELF
23Feed hopperSUS304 s=2mm
SELF
24Heating box connecting pipeSUS304  s=2mm
SELF
25An electric appliance

SIEMENS
26Electric boxA3  s=2mm1SELF
