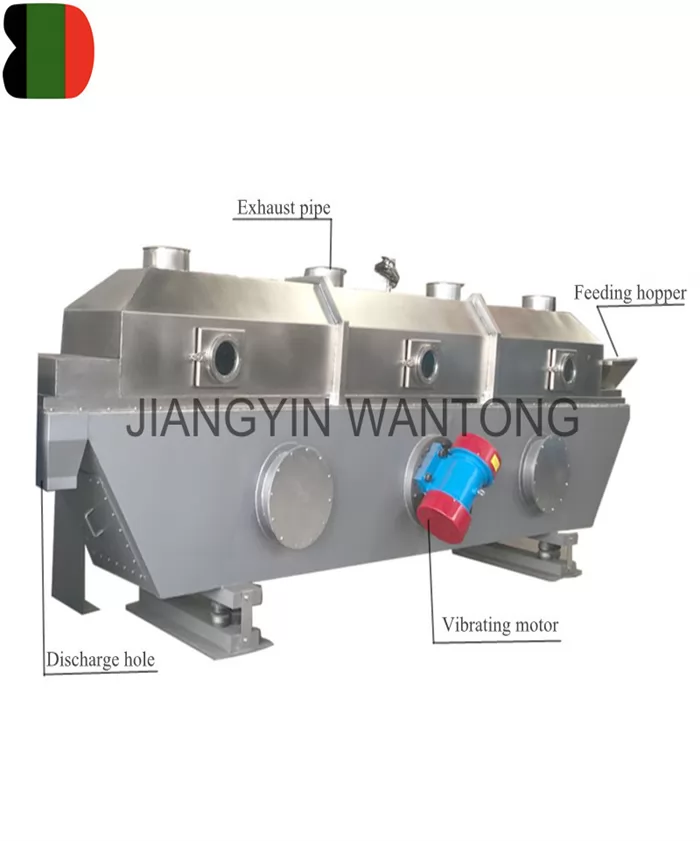

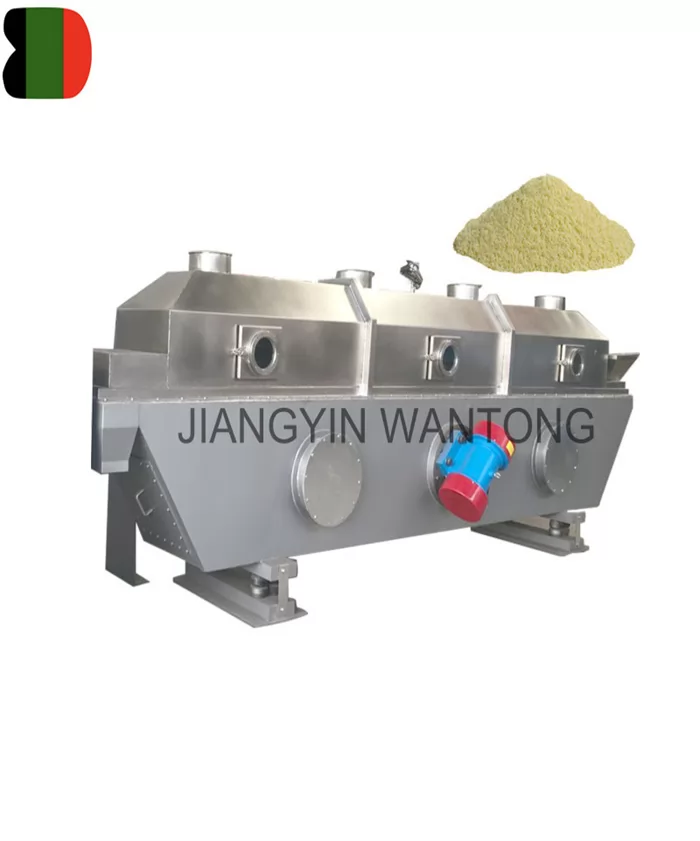

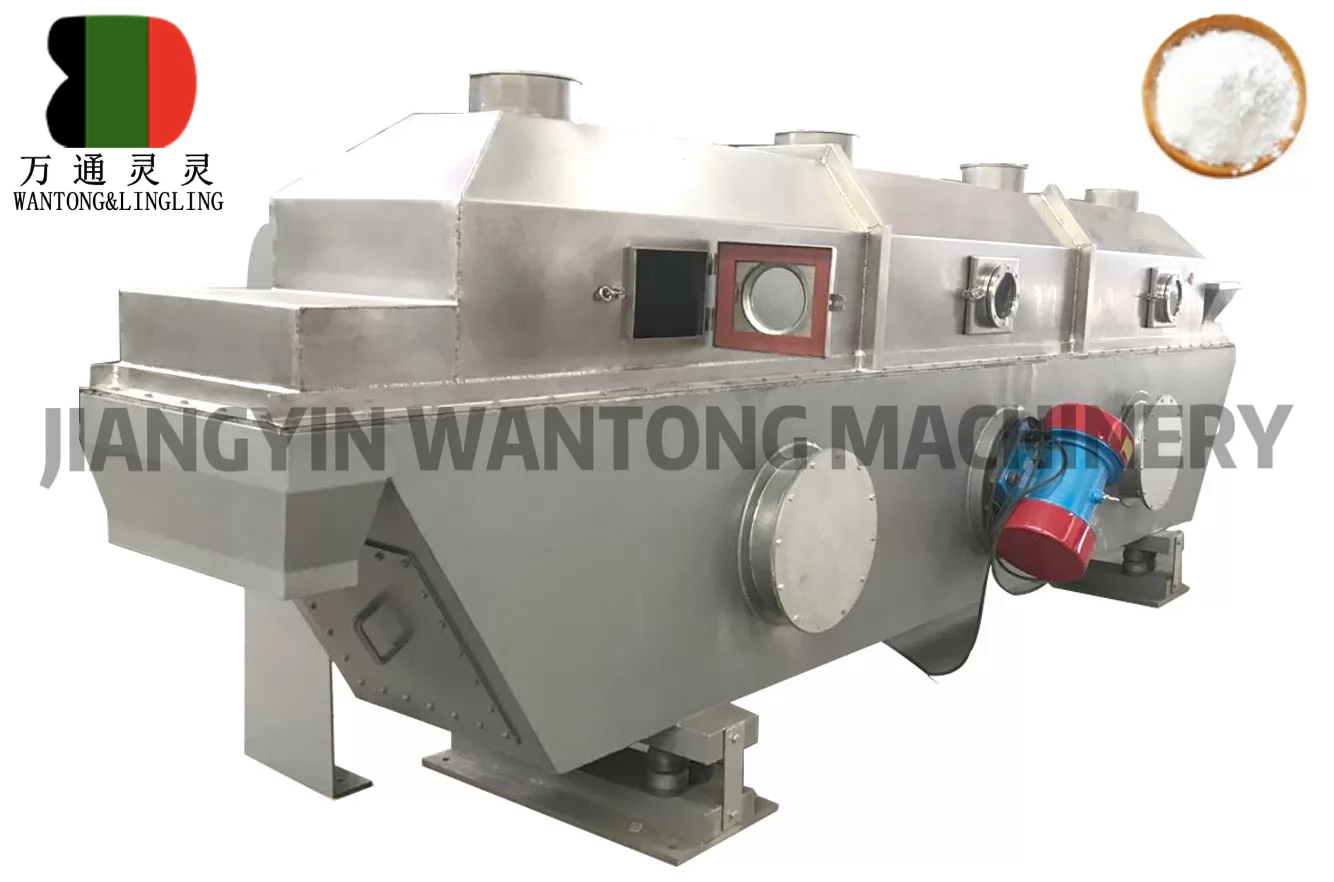

This rock salt vibrating fluid bed dryer drying machine is suitable for drying, cooling and humidifying of materials in various industries, such as chemical industry, pharmacy, food, fruit, beverage, seeds, slag, etc., and can also be used for drying, cooling and humidifying operations simultaneously.
Products Details
TECHNICAL DATA of ZG rock salt vibrating fluid bed dryer drying machine
Model | Bed body | Dimension | Vibrate power(kw) | Weight(kg) |
L×W(mm) | L×W×H(mm) | |||
3×30 | 3000×300 | 3505×890×1830 | 2×0.75 | 1240 |
3×45 | 4500×300 | 5005×1116×1830 | 2×0.75 | 1570 |
4.5×45 | 4500×450 | 5005×1132×1900 | 1.1×2 | 1670 |
6×60 | 6000×600 | 6510×1286×1940 | 2×1.5 | 2743 |
6×75 | 7500×600 | 8010×1286×1940 | 2×2.2 | 2886 |
9×60 | 6000×900 | 6510×1830×2110 | 2×2.2 | 3540 |
9×75 | 7500×900 | 8010×1830×2110 | 2×3.7 | 4219 |
12×75 | 7500×1200 | 8010×2400×2450 | 2×5.5 | 5223 |
15×75 | 7500×1500 | 8010×2850×2570 | 2×5.5 | 6426 |
18×80 | 8000×1800 | 8520×3250×3100 | 2×7.5 | 8600 |
