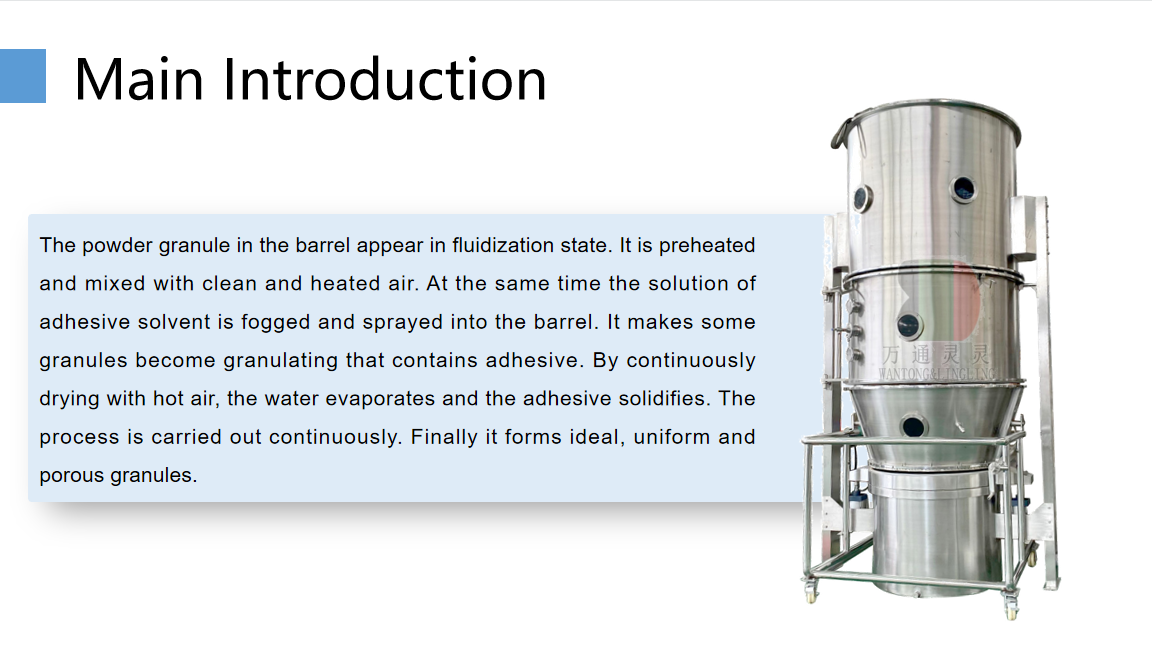

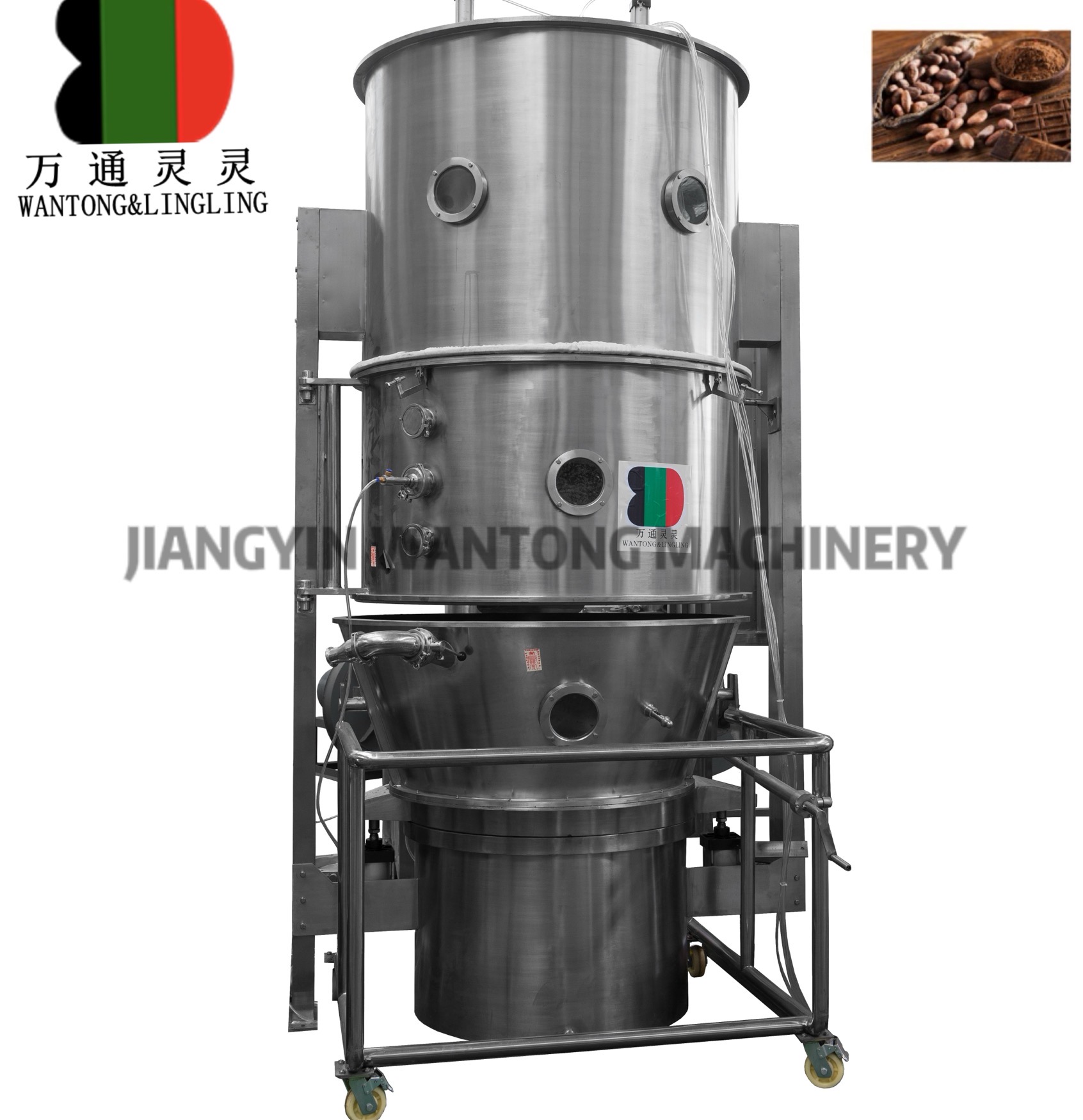

Fluidized bed granulation dryer for cocoa is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on.

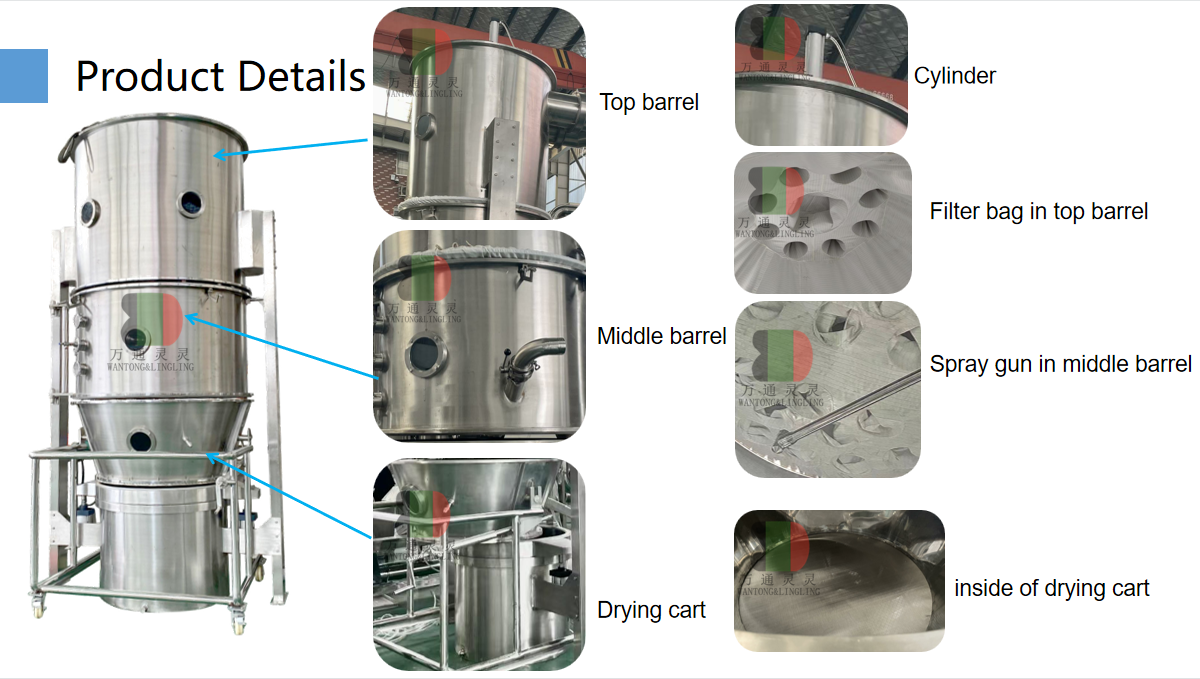

Products Details
TECHNICAL PARAMETERS of fluidized bed granulator for cocoa
| Model | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 200 | 300 | 500 | |
| Volume(L) | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 660 | 1000 | 1500 | |
| Steam amount (KG/H) | 0.5-1 | 1-3 | 2-5 | 6-15 | 7-18 | 10-23 | 15-50 | 20-60 | 40-80 | 70-150 | 100-200 | |
| Processing Amount (KG/batch) | 1.5-4.5 | 4-6 | 10-20 | 15-45 | 25-65 | 40-80 | 60-120 | 80-160 | 100-300 | 150-450 | 300-700 | |
| steam | Pressure(MPa) | 00.4-0.6 | ||||||||||
| Consumption(m3/min) | 12 | 223 | 42 | 70 | 99 | 141 | 169 | 211 | 282 | 366 | 451 | |
| Compressed air | Pressure(MPa) | 0.6 | ||||||||||
| Consumption(m3/min) | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 1.3 | 1.5 | |
| Temperature(℃) | 0-120 | |||||||||||
| Wind motor power(KW) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
| Noise(Decibel) | <75 (wind motor can separated) | |||||||||||
