FL cocoa granule making machine is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on.
Products Details

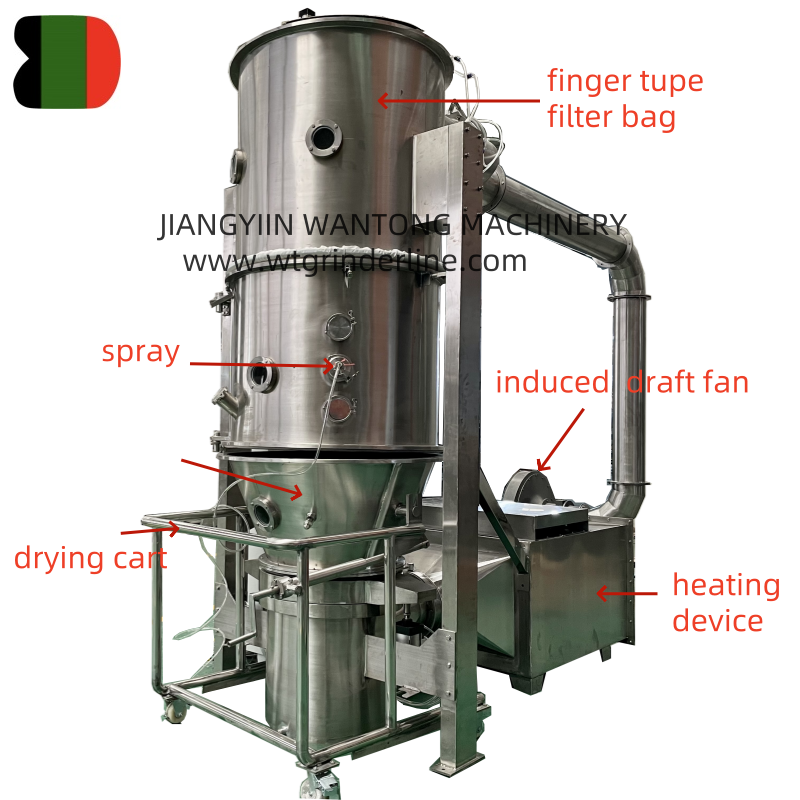

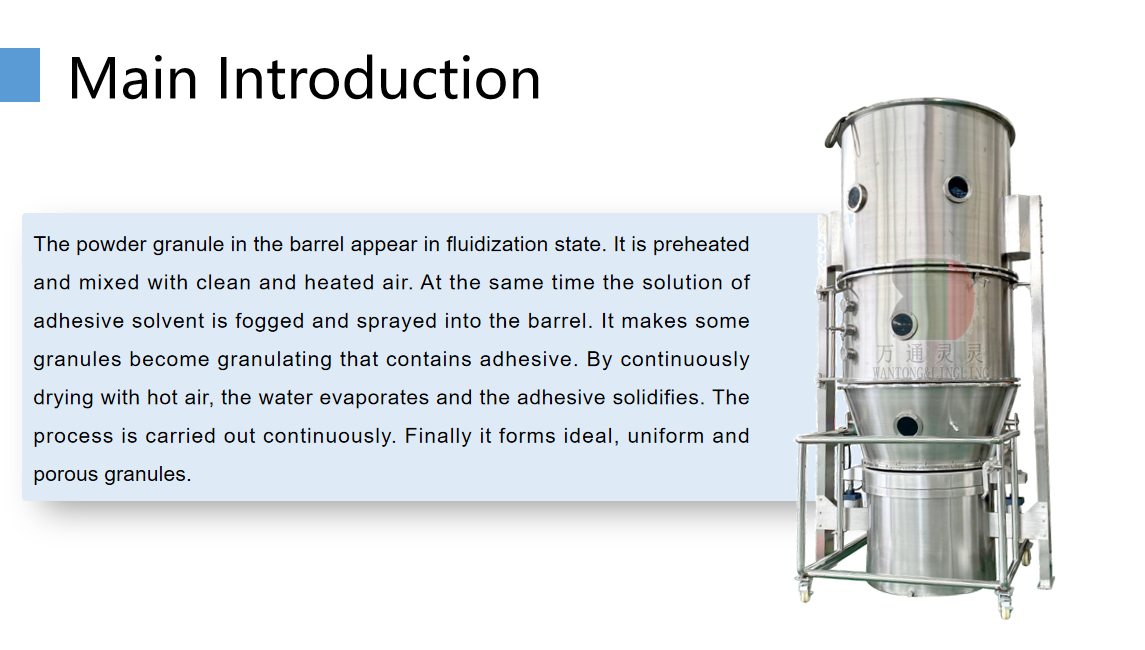

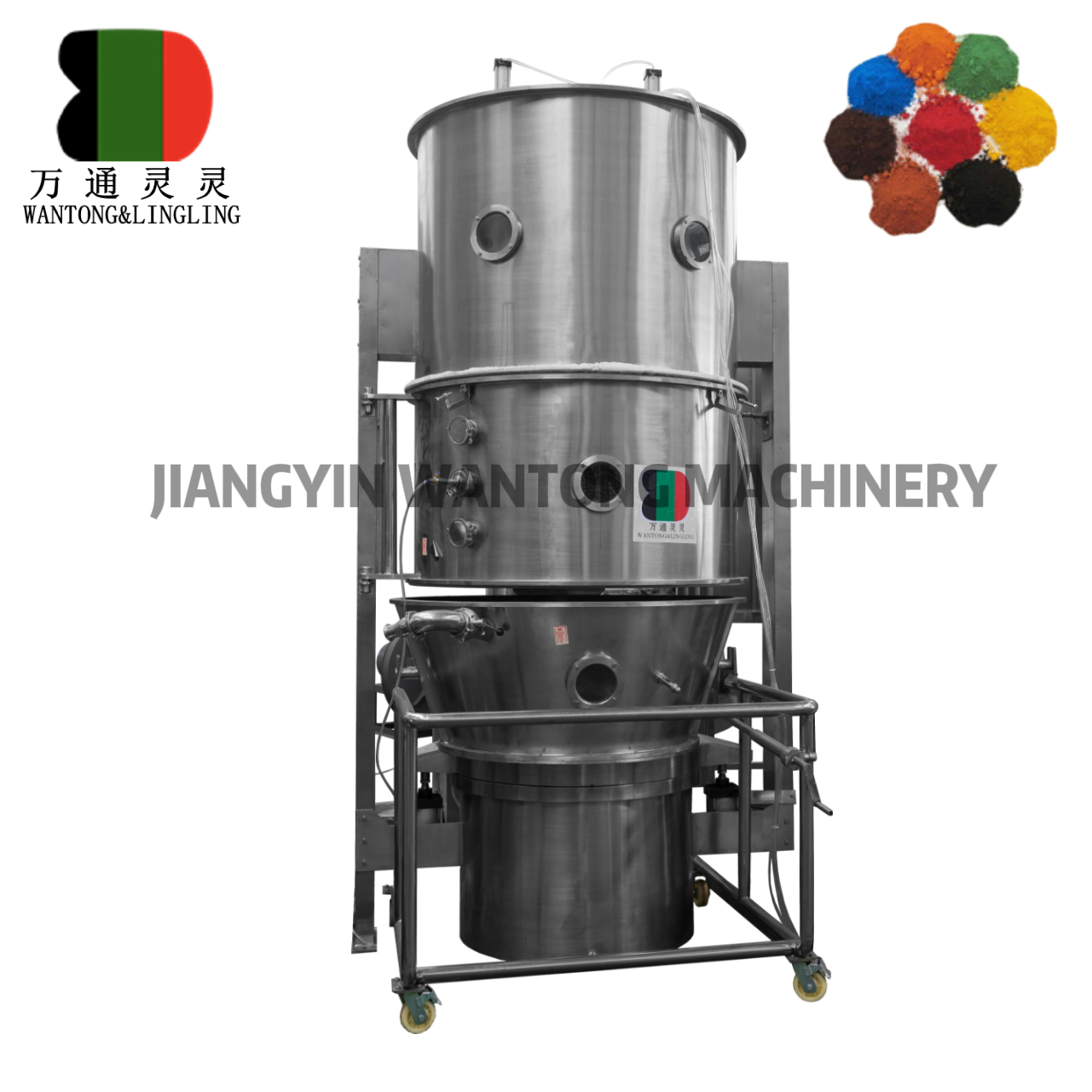

1.MACHINE INTRODUCTION of cocoa granule making machine
FL cocoa granule making machine coffee granulator machine is a new craft set combining the fluidized bed technology and spraying technology to make granules in pharmaceutical&medical industry, foodstuff, chemical industry and so on.

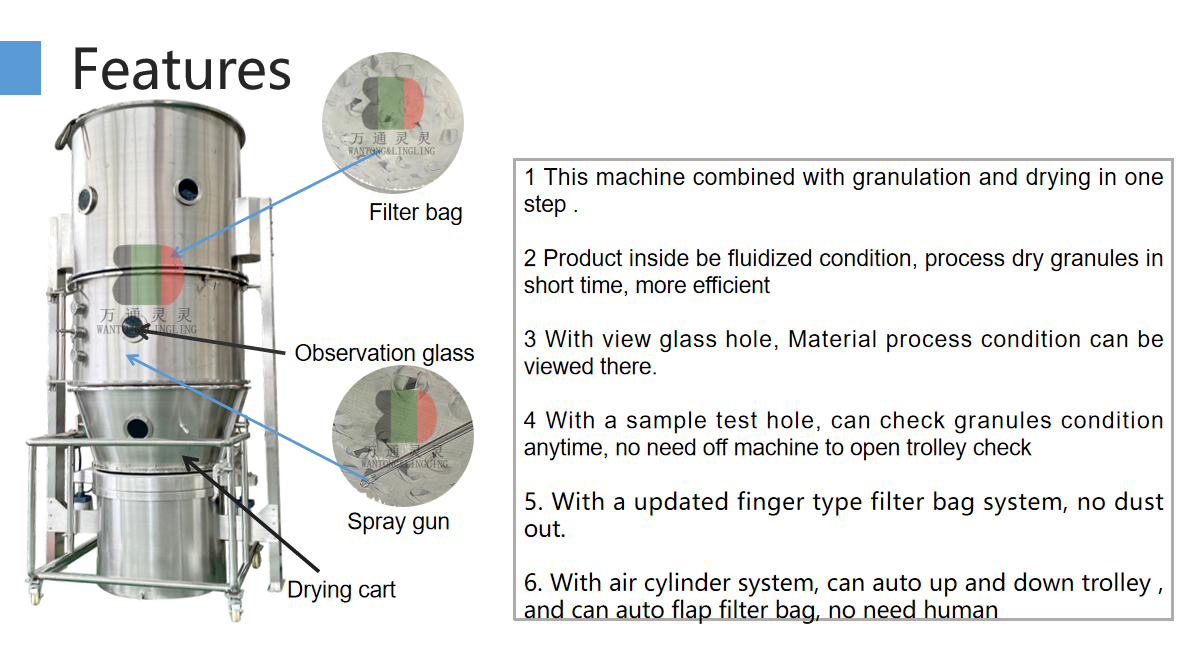

2.FEATURES of cocoa granule making machine
(1)The vertical fluid bed dryer has four functions: Mixing, drying, granulating and coating.FL cocoa granule making machine coffee granulator machine can make powder material into granules by one step directly, dry the material, and quickly fluidizing granulate.
(2) under airtight negative pressure condition, clearance, no dead angle.
(3) making use of the fluidized material as wet sticky thing to make granules can save much alcohol and bring down the cost, and can produce small, no coffee or low coffee medical particle.
(4) the final products can be easy fusion and decomposed.
3.TECHNICAL PARAMETERS of cocoa granule making machine
| Model | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 200 | 300 | 500 | |
| Volume(L) | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 660 | 1000 | 1500 | |
| Steam amount (KG/H) | 0.5-1 | 1-3 | 2-5 | 6-15 | 7-18 | 10-23 | 15-50 | 20-60 | 40-80 | 70-150 | 100-200 | |
| Processing Amount (KG/batch) | 1.5-4.5 | 4-6 | 10-20 | 15-45 | 25-65 | 40-80 | 60-120 | 80-160 | 100-300 | 150-450 | 300-700 | |
| steam | Pressure(MPa) | 00.4-0.6 | ||||||||||
| Consumption(m3/min) | 12 | 223 | 42 | 70 | 99 | 141 | 169 | 211 | 282 | 366 | 451 | |
| Compressed air | Pressure(MPa) | 0.6 | ||||||||||
| Consumption(m3/min) | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 1.3 | 1.5 | |
| Temperature(℃) | 0-120 | |||||||||||
| Wind motor power(KW) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
| Noise(Decibel) | <75 (wind motor can separated) | |||||||||||
