  • FL66 fluidized bed granulator
  • FL66 fluidized bed granulator

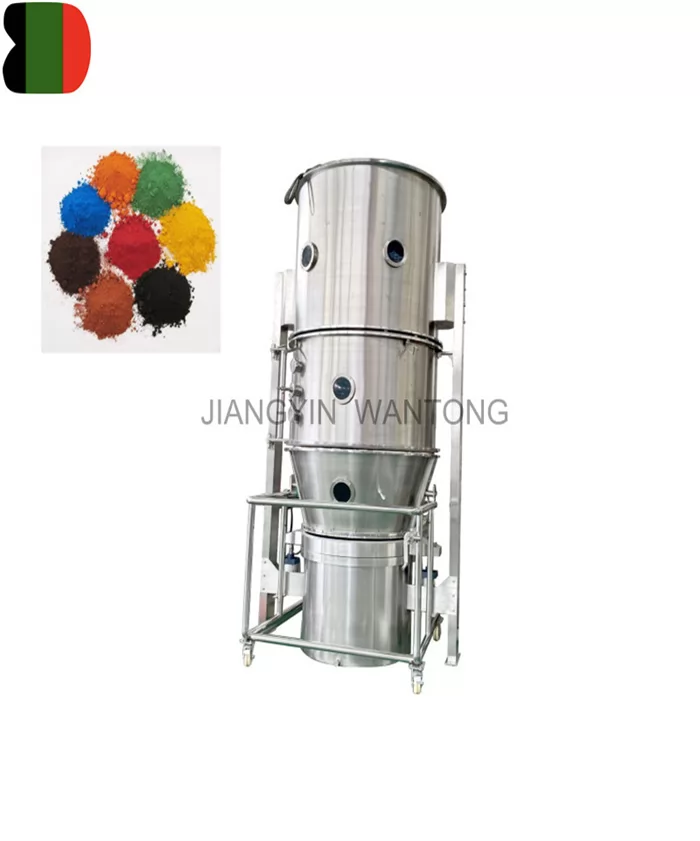

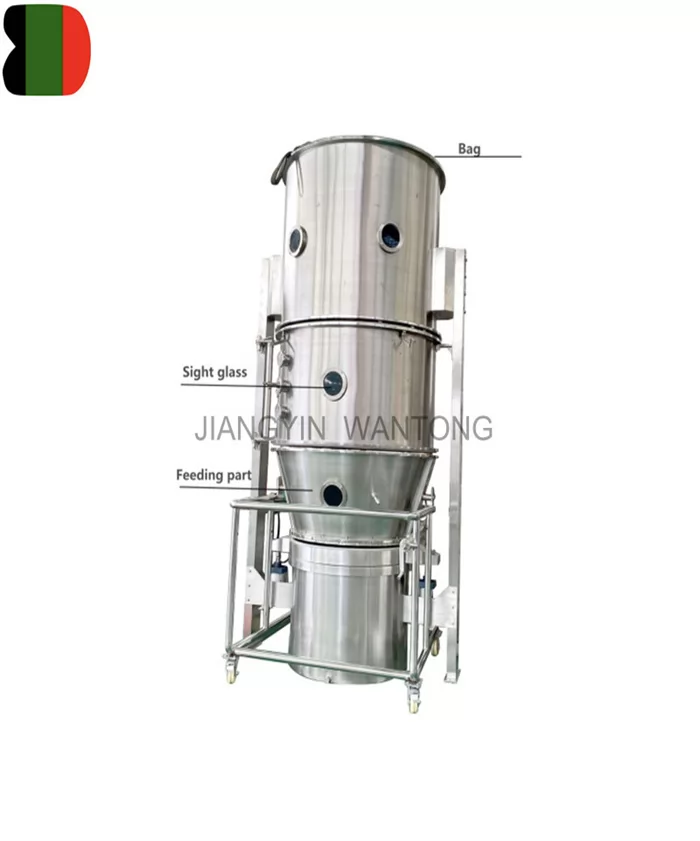

FL66 fluidized bed granulator

FL fluidized bed granulator machine is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on.



Products Details

1.MACHINE INTRODUCTION of fluidized bed granulator

FL fluid bed dryer granulator coffee granulator machine is a new craft set combining the fluidized bed technology and spraying technology to make granules in  pharmaceutical&medical industry, foodstuff, chemical industry and so on.


2.FEATURES of fluidized bed granulator

(1)The vertical fluid bed dryer has four functions: Mixing, drying, granulating and coating.FL fluid bed dryer granulator coffee granulator machine can make powder material into granules by one step directly, dry the material, and quickly fluidizing granulate.

(2) under airtight negative pressure condition, clearance, no dead angle.

(3) making use of the fluidized material as wet sticky thing to make granules can save much alcohol and bring down the cost, and can produce small, no coffee or low coffee medical particle.

(4) the final products can be easy fusion and decomposed.


3.TECHNICAL PARAMETERS of fluidized bed granulator

Model351530456090120200300500
Volume(L)12224510015522030042066010001500
Steam amount (KG/H)0.5-11-32-56-157-1810-2315-5020-6040-8070-150100-200
Processing Amount (KG/batch)1.5-4.54-610-2015-4525-6540-8060-12080-160100-300150-450300-700
steamPressure(MPa)00.4-0.6

Consumption(m3/min)12223427099141169211282366451
Compressed airPressure(MPa)0.6

Consumption(m3/min)0.30.30.30.40.40.60.60.90.91.31.5
Temperature(℃)0-120
Wind motor power(KW)2.2345.57.5111518.5223045
Noise(Decibel)<75 (wind motor can separated)



Products Picture

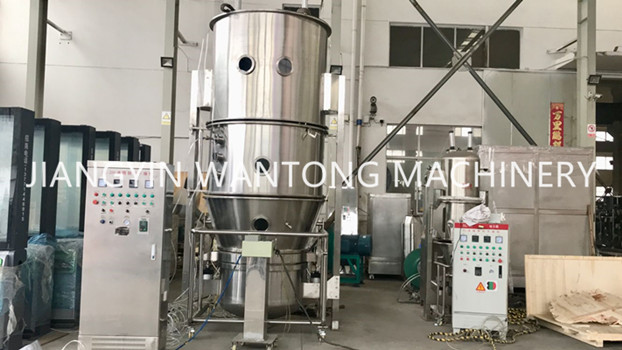

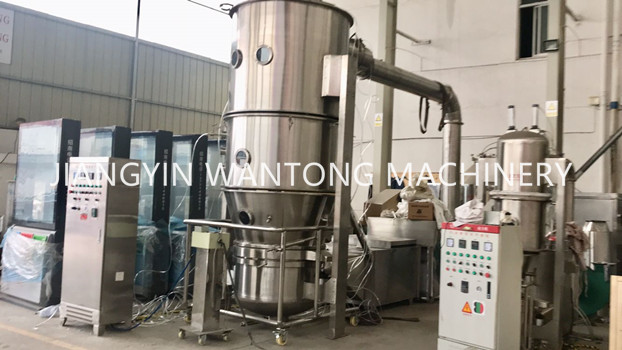

FL66 fluid bed dryer granulator sugar granulator machine

FL66 fluid bed dryer granulator sugar granulator machine
