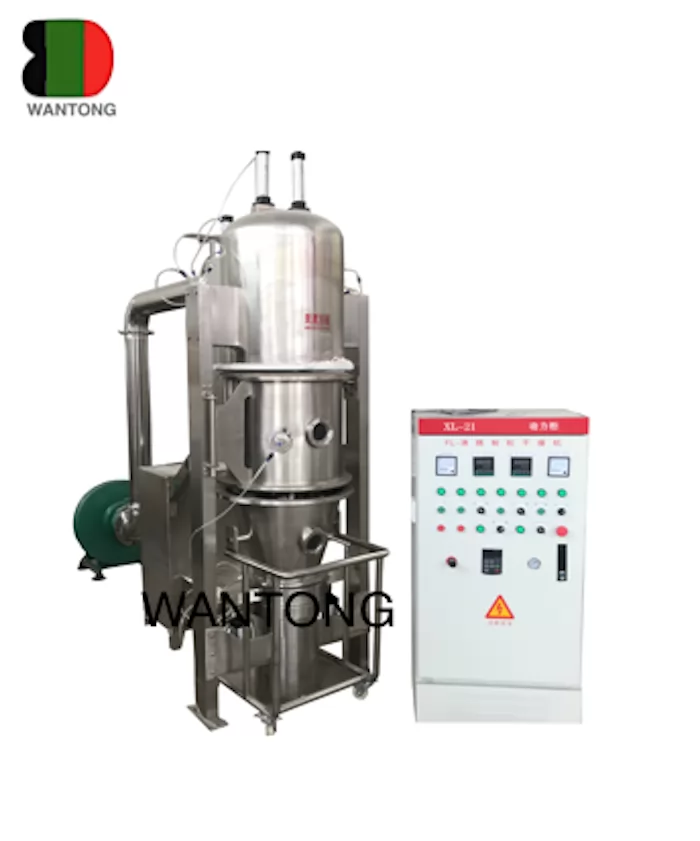

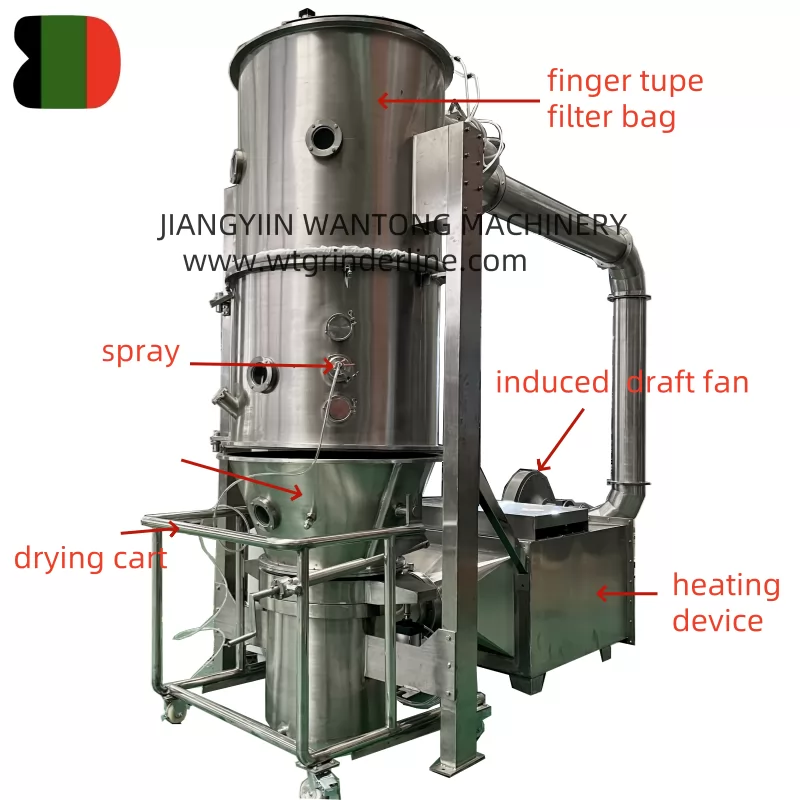

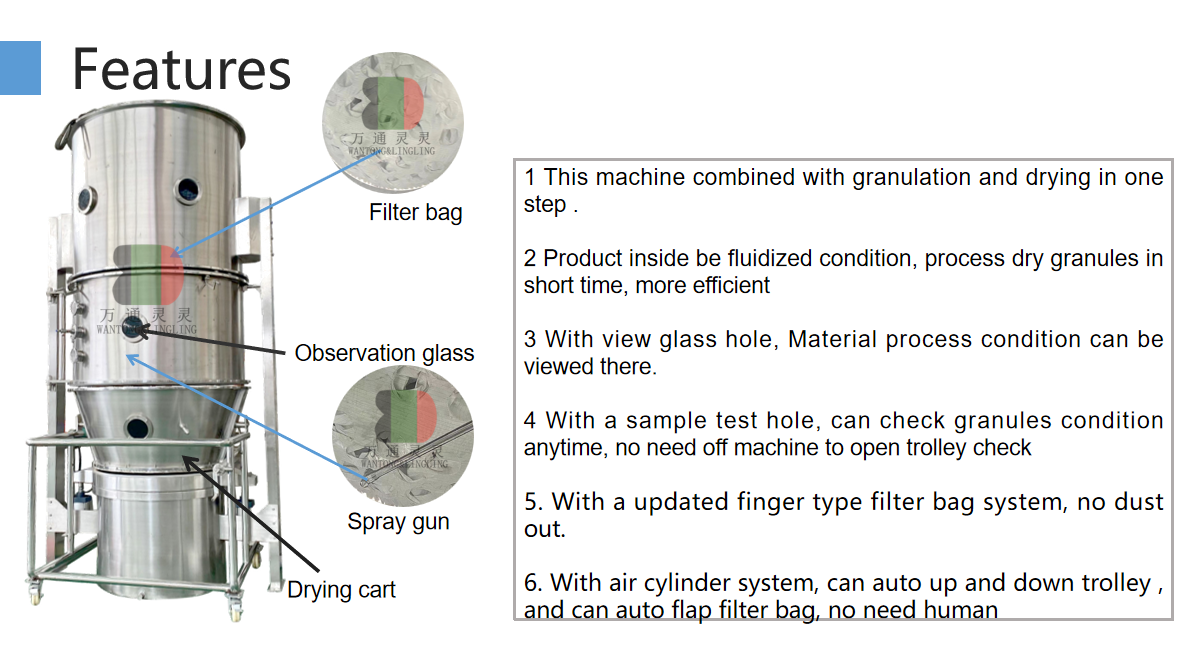

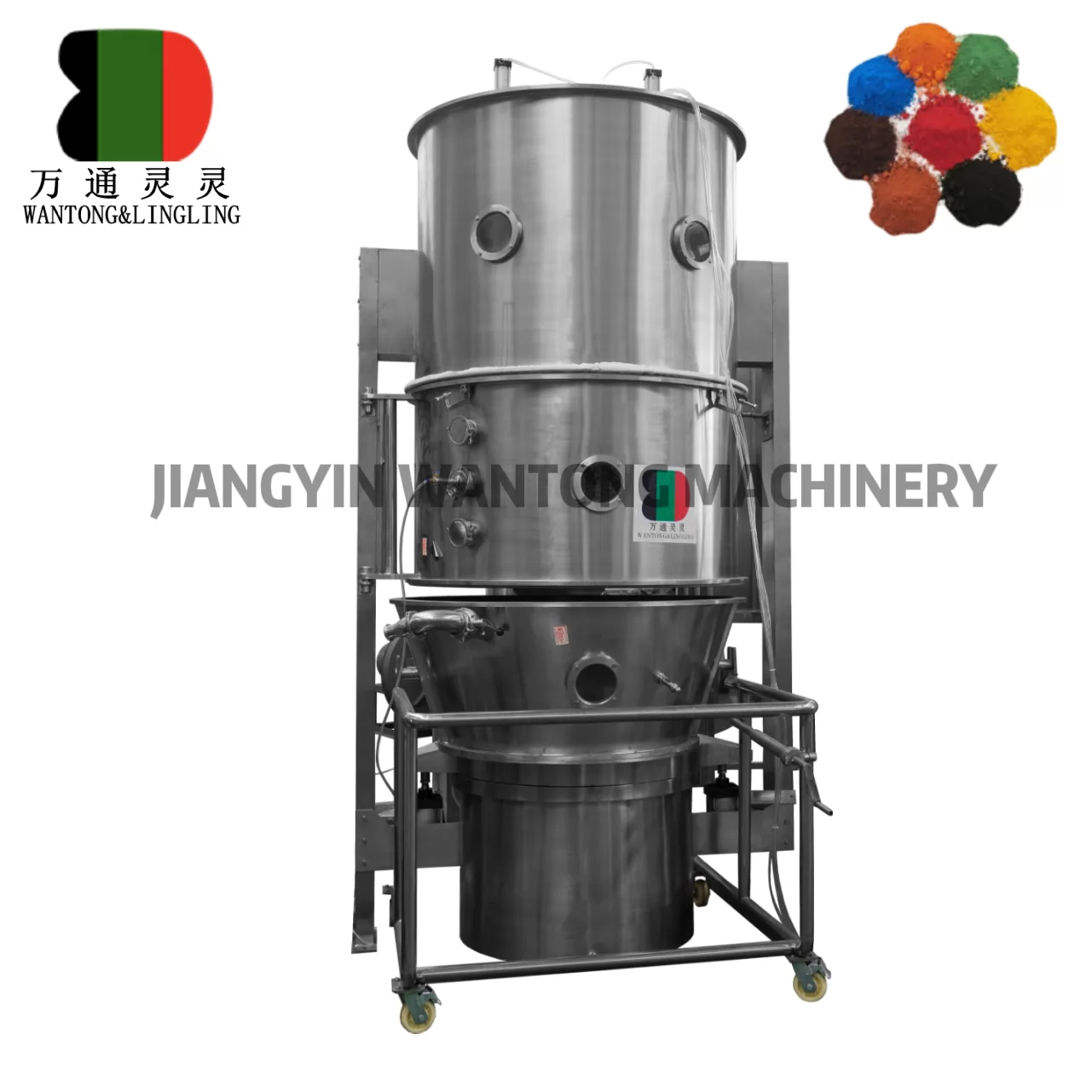

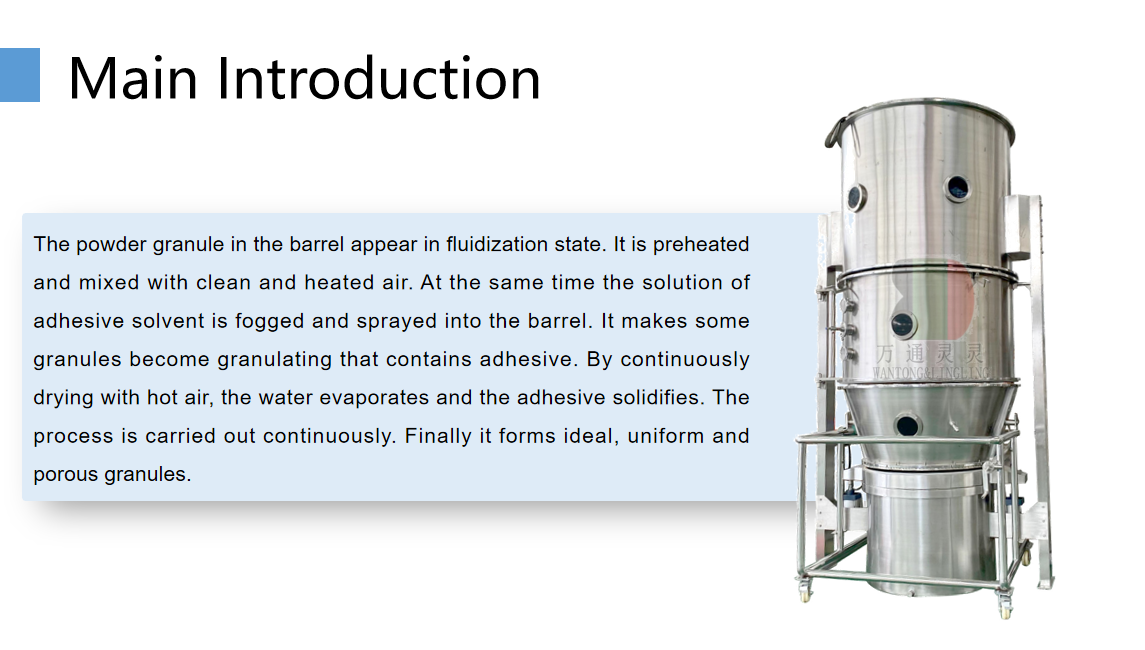

FL type fluidized granulator is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on.
Products Details
TECHNICAL PARAMETERS:
| Model | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 200 | 300 | 500 | |
| Volume(L) | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 660 | 1000 | 1500 | |
| Steam amount (KG/H) | 0.5-1 | 1-3 | 2-5 | 6-15 | 7-18 | 10-23 | 15-50 | 20-60 | 40-80 | 70-150 | 100-200 | |
| Processing Amount (KG/batch) | 1.5-4.5 | 4-6 | 10-20 | 15-45 | 25-65 | 40-80 | 60-120 | 80-160 | 100-300 | 150-450 | 300-700 | |
| steam | Pressure(MPa) | 00.4-0.6 | ||||||||||
| Consumption(m3/min) | 12 | 223 | 42 | 70 | 99 | 141 | 169 | 211 | 282 | 366 | 451 | |
| Compressed air | Pressure(MPa) | 0.6 | ||||||||||
| Consumption(m3/min) | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 1.3 | 1.5 | |
| Temperature(℃) | 0-120 | |||||||||||
| Wind motor power(KW) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
| Noise(Decibel) | <75 (wind motor can separated) | |||||||||||
