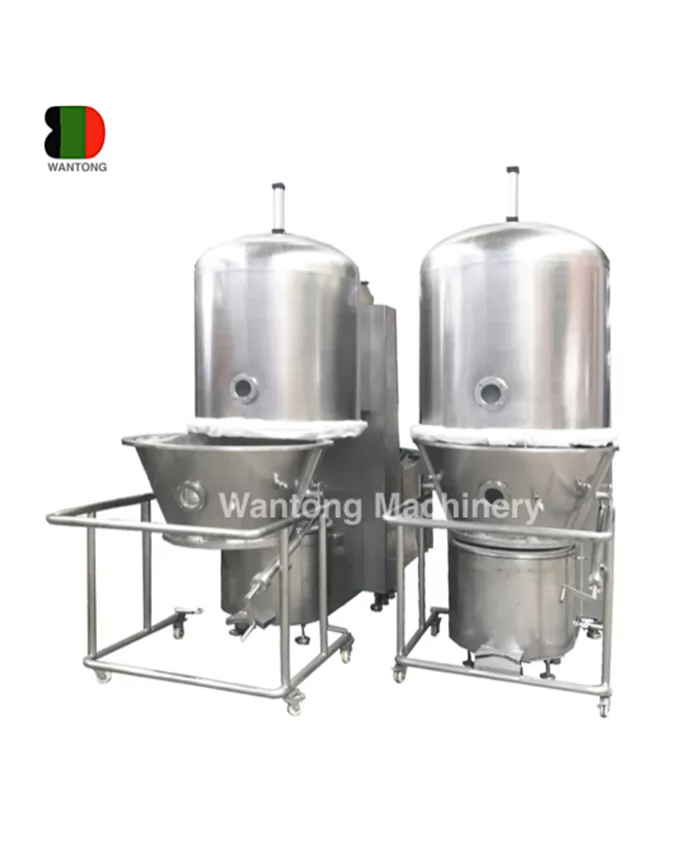

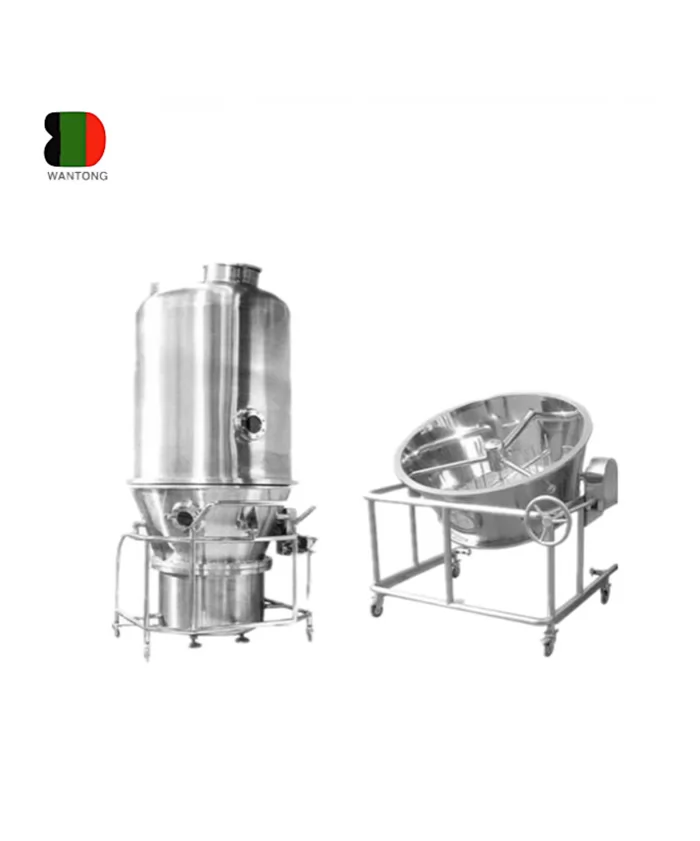

  • GFG Fluid Fluidized Bed Dryer
  • GFG Fluid Fluidized Bed Dryer
  • GFG Fluid Fluidized Bed Dryer

GFG Fluid Fluidized Bed Dryer

GFG Type High Efficient Fluidized dryer has more fluidized range than traditional horizontal XF fluidized drier and can be easily cleaned. When fluidized, the material is stirred slowly avoiding the block. So it has special advantages for the high wet and sticky material.

Products Details

1.MAIN APPLICATION

GFG High Efficient fluid bed dryer has more fluidized range than traditional horizontal ZG Vibrating fluidized bed dryer and can be easily cleaned. When fluidized, the material is stirred slowly avoiding the block. So it has special advantages for the high wet and sticky material. Can widely used in drying glatt, artemia cyst, cheese, milk powder, pharmaceutical powder, chemical powder, food powder etc

2.USAGE:

a. dry granule and powder materials in medicine, food, feed, chemical industry, etc.

b, screw extrusion particles, shaking particles and high-speed mixing granulation drying.

c, large particles, small blocks, sticky block material.

3.WORKING PRINCIPLE

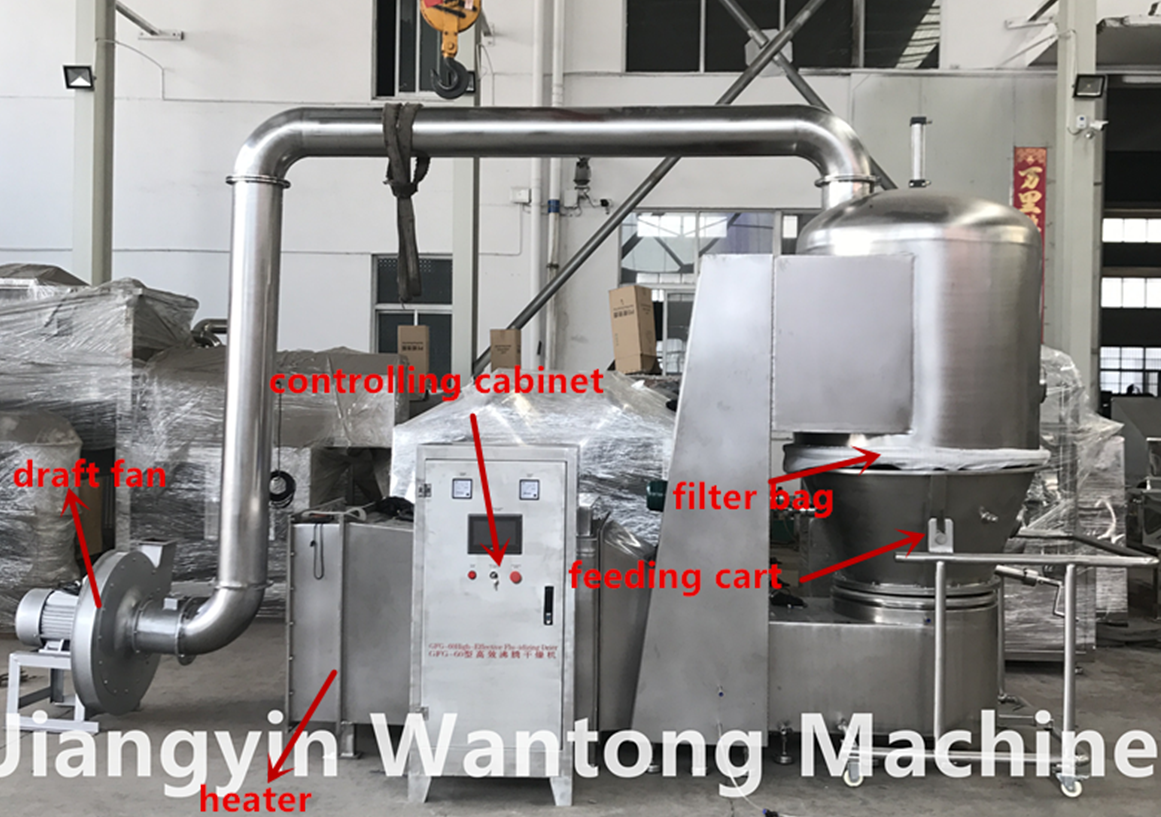

Put the material (granule or powder) into the charging hopper. Meanwhile filter the dust in the air by the filter and heat the material to the demanded temperature by the heater. When the air gets through the Dutch sieve, the material is fluidized and dried. The steam is drawn by the fan through the dedust bags. The superfine powder will be collected by the filter bags and can be shaken back to the container after fluidizing by the upper shaking cylinder.

In the work room, Fluidization by stirring and negative pressure, water is evaporated and removed quickly, fast drying material.

4.FEATURES

This Vertical fluidized bed drying equipment charging hopper is cylindraceous with no dead angle, even drying and easy cleaning.

The filter pocket, adopting the antistatic fiber, has well ventilation and excellent dedust effect. So it is safe and reliable.

The discharged by turning over convenient, rapid and thorough.

This Fluidized bed dryer machine is equipped with stirring set in the bed avoiding the block of the material. It features the great fluidized range and quick drying speed.

Seal negative pressure operation, according to GMP specification design

The separation chamber of the bag is a circular structure, The upper and lower flange of the hopper is an inflatable seal.

We will give you factory wholesale price.

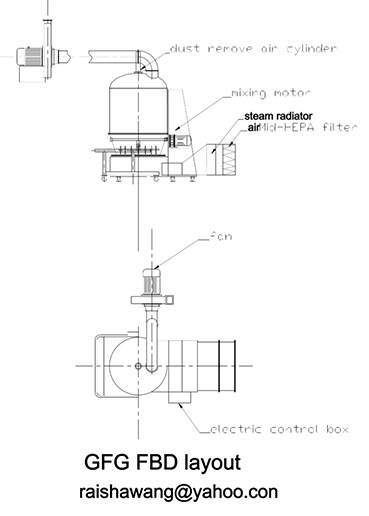

5.MACHINE LAYOUT

GFG fluid fluidized bed dryer

6.TECHNICAL PARAMETERS

ModelGFG-60GFG-100GFG-150GFG-200GFG-300GFG-500
Batch charging(kg)60100150200300500
BlowerAir flow(m3/h)2361348849016032780010800
Air pressure(mm)(H2O)494533679787950950
Power(kw)7.51115223045
Agitating speed(rpm)11
Steam consumption(kg/h)141170240282366451
Operating time(min)~15-30 (According to the material)
Operating temp. ~120℃(controllable)
Height(mm)Round270029002900310036003850

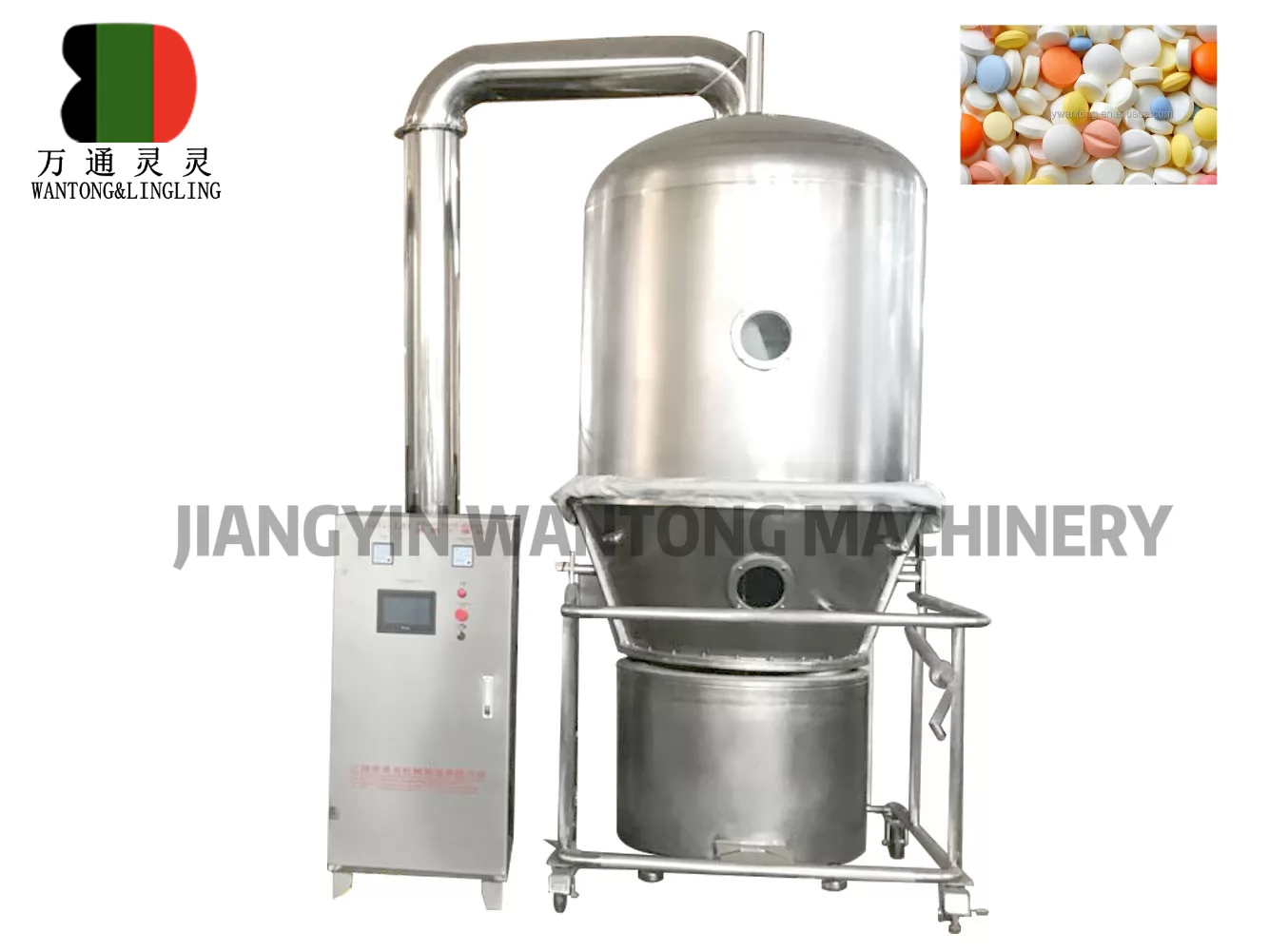

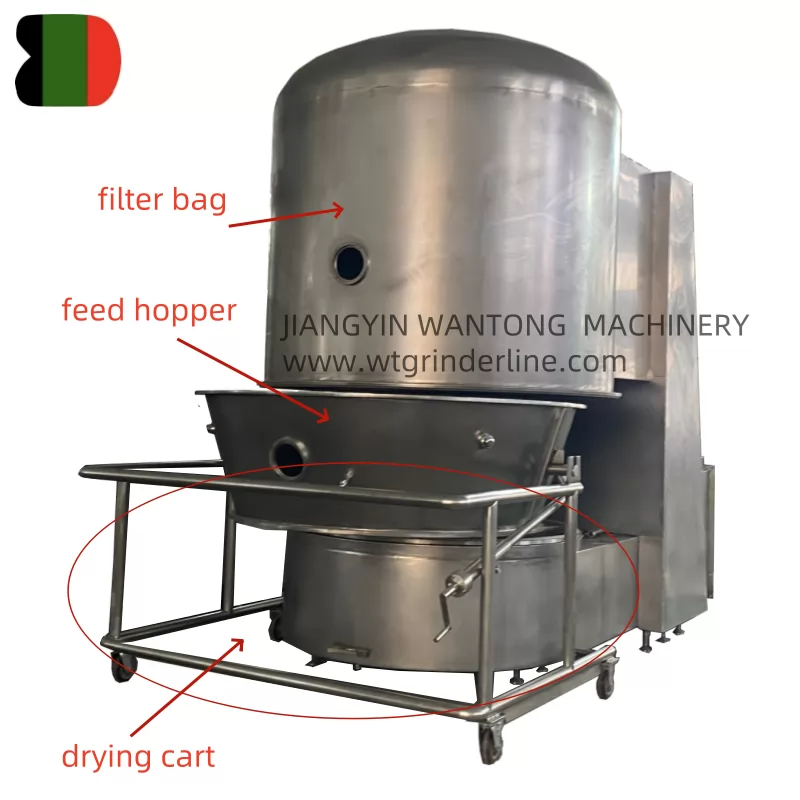

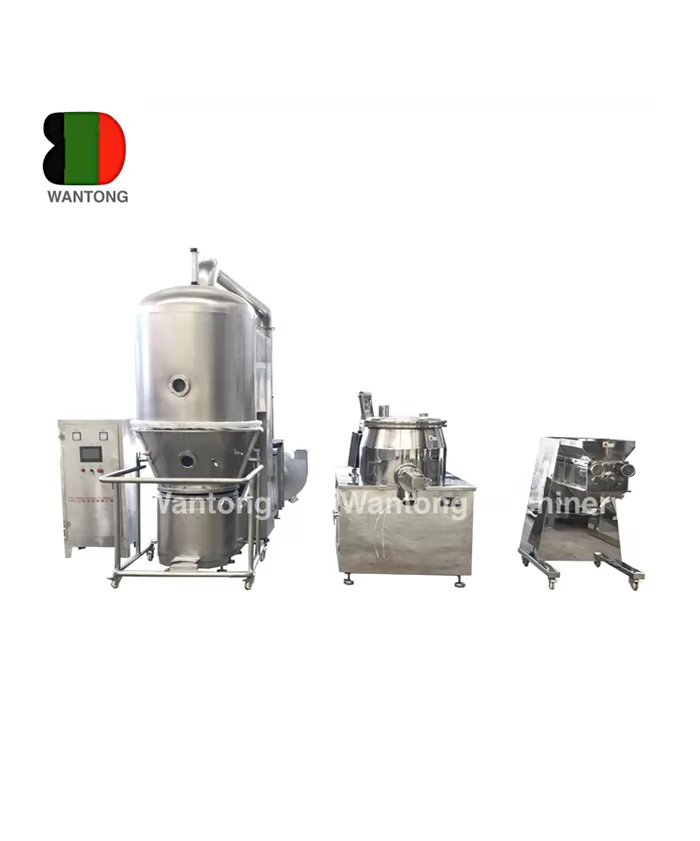

Products Picture

GFG fluid fluidized bed dryer
