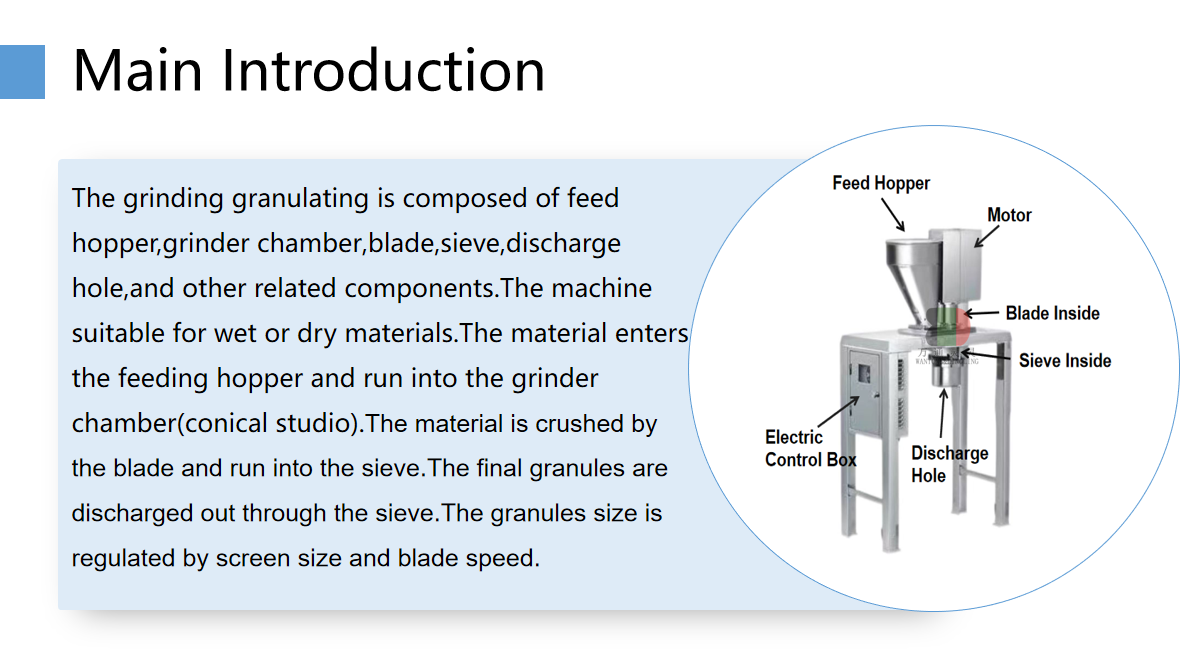

This grinding granulator machine is suitable for food,medicine and chemical industry.It can be uesd for raw material crushing,wet material granulation,dry material whole grain,biscuit crushing recycling and so on.
The size of the discharge particles can be adjusted by the mesh number of the screen, the distance between the rotary knife and the screen, and the speed of the rotary speed.

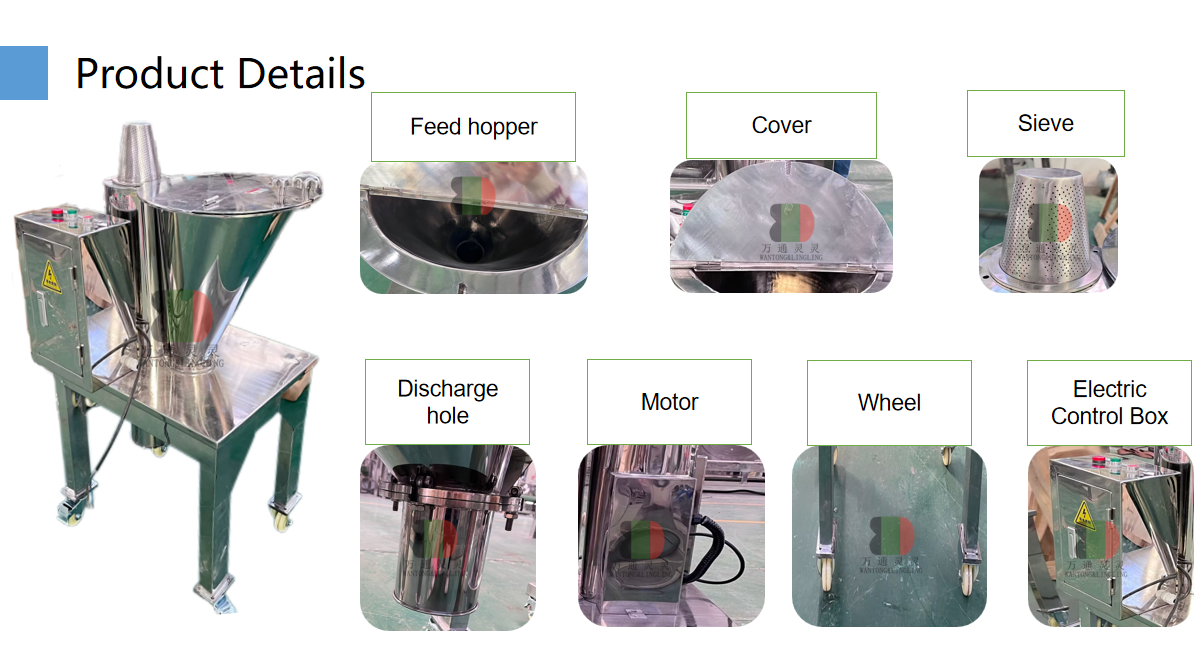

Products Details
Technical Parameters of Grinding Granulator
| Item/Model | FZ-150 | FZ-300 | FZ-450 | FZ-700 | FZ-1000 |
| Production capacity(kg/h) | 15-150 | 30-300 | 45-450 | 70-700 | 100-1000 |
| Granularity (mesh) | 6-80 | ||||
| Temperature of transmission seat(mm) | < 30 | ||||
| Regulating speed of speed | Single speed 2800rpm Frequency conversion 300-3600rpm | ||||
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 5.5 |
| Overall size(L*W*H)(mm) | 850×480×1400 | 810×445×1345 | 920×445×1430 | 1000×500×1530 | 1100×560×1785 |
| Height from discharging gate to ground(mm) | 650 | 650 | 690 | 690 | 720 |
The above is our technical data. We can also design and manufacture different standards upon customer's request.
