GK dry granules making Compactor Granulator machine

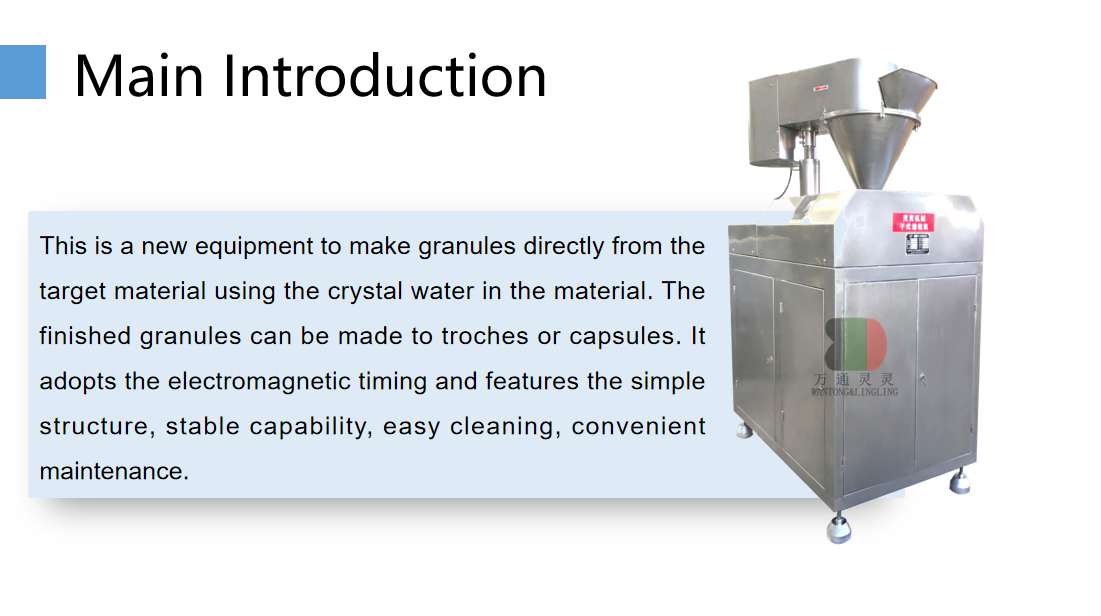

This is a new equipment to make granules directly from the target material using the crystal water in the material. The finished granules can be made to troches or capsules. It adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, convenient maintenance.

Products Details




TECHNICAL DATA:

MODEL80100120200
CAPACITY(Kg/h)20-20050-40060-500100-800
ROLL SIZE(mm)200×80200×100200×120250×200
Roll Max Pressure(T)10×210×215×225×2
ROLL SPEED(rpm)2-20(adjustable)
FEEDING SPEED(rpm)6-60(adjustable)
Roll Drive Motor(Kw)47.51115
Feed Drive Motor(Kw)1.12.22.23
Granule Drive Motor(Kw)1.12.22.23
Oil Pump Drive Motor(Kw)0.751.11.12.2
MAX WORKING PRESSURE OF HYDRAULIC(Mpa)20253050
Roller And Feed Speed Regulation TypeElectromagnetic speed/variable frequency speed control
