GK66 pigment dry granulator granules making machine

GK pigment dry granulator granules making machine is a new equipment to make granules directly from the target material using the crystal water in the material. The finished granules can be made to troches or capsules. GK pigment dry granulator granules making machine adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, convenient maintenance.

Products Details

1.MAIN INTRODUCTION of GK pigment dry granulator granules making machine

GK pigment dry granulator granules making machine is a new equipment to make granules directly from the target material by using the crystal water in the material. The finished granules can be made to troches. GK pigment dry granulator granules making machine adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, easy maintenance.


2.MAIN APPLICATION of GK pigment dry granulator granules making machine

Medicine: pellet granule, capsule filling granule;

Food: food manufacturing particles, seasoning particles, etc..

Plastic: all kinds of plastic molding particles;

Chemical: catalyst, pigment, detergent and other particles.

The mechanism of the particles can be compressed agent, do granules, capsules, etc.. GK pigment dry granulator granules making machine is mainly used in pharmaceutical, food, chemical and other industries. The method is especially suitable for granulating materials which can not be solved by wet process.


3.TECHNICAL DATA of GK pigment dry granulator granules making machine

MODEL80100120200
CAPACITY(Kg/h)20-20050-40060-500100-800
ROLL SIZE(mm)200×80200×100200×120250×200
Roll Max Pressure(T)10×210×215×225×2
ROLL SPEED(rpm)2-20(adjustable)
FEEDING SPEED(rpm)6-60(adjustable)
Roll Drive Motor(Kw)47.51115
Feed Drive Motor(Kw)1.12.22.23
Granule Drive Motor(Kw)1.12.22.23
Oil Pump Drive Motor(Kw)0.751.11.12.2
MAX WORKING PRESSURE OF HYDRAULIC(Mpa)20253050
Roller And Feed Speed Regulation TypeElectromagnetic speed/variable frequency speed control



Products Picture

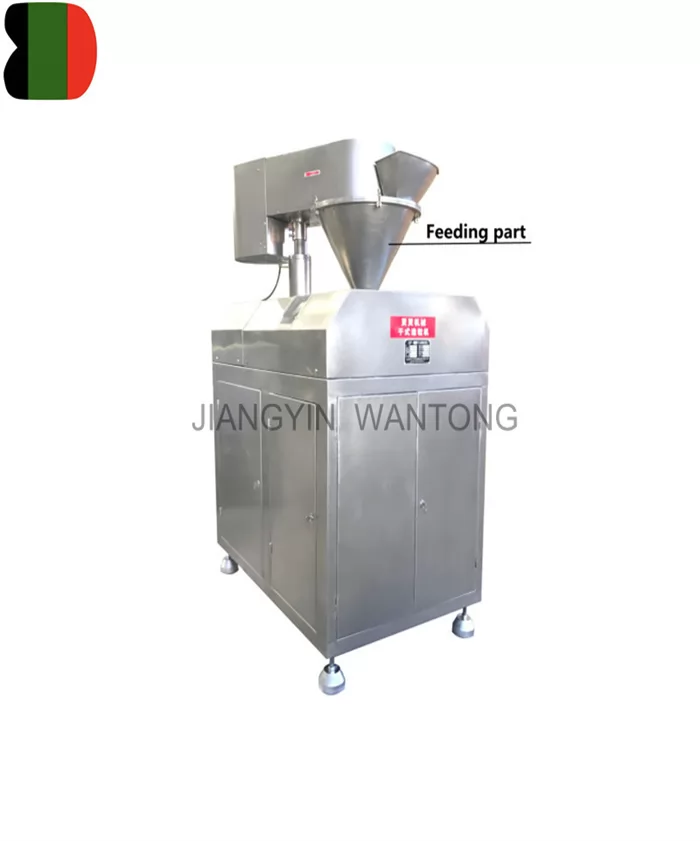

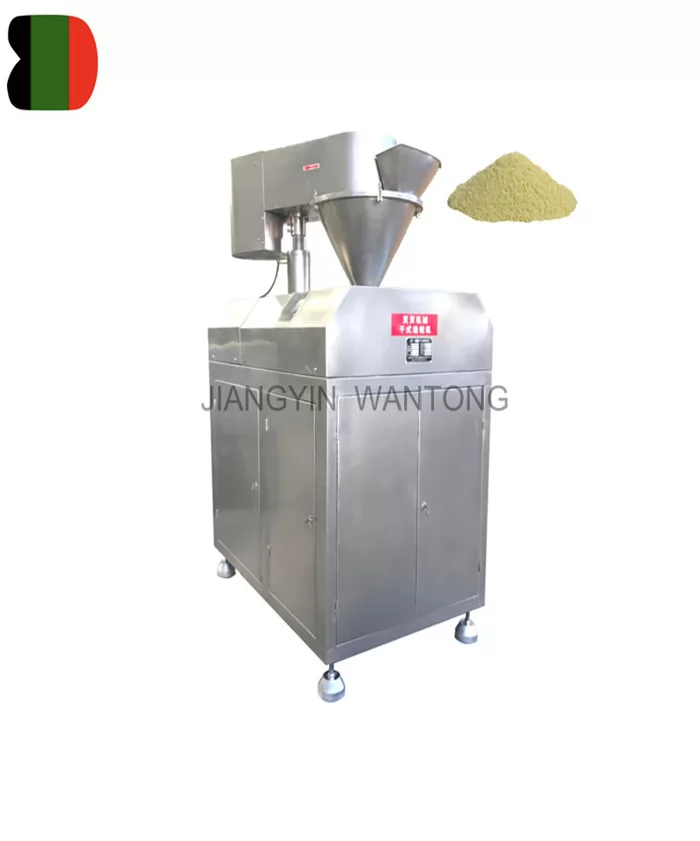

GK66 fertilizer dry granulator granules making machine

GK66 fertilizer dry granulator granules making machine
