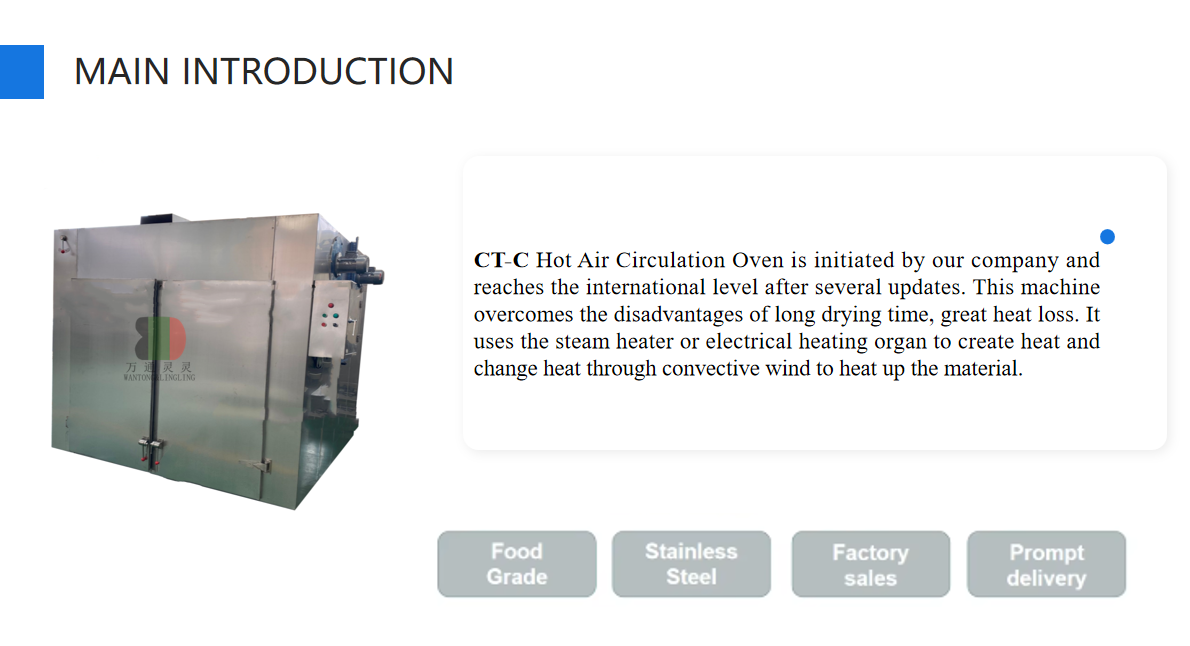

CT-C Hot Air banana fuit tray dryer drying machine oven is initiated by our company and reaches the international level after several updates. This hot air banana fruit tray dryer drying machine overcomes the disadvantages of long drying time, great heat loss. CT hot air banana fruit tray dryer drying machine uses the steam heater or electrical heating organ to create heat and change heat through convective wind to heat up the material.
Products Details
3.TECHNICAL PARAMETERS of CT hot air banana fruit tray dryer drying machine
Note: we also can design other model upon client's request.
| Model | Evaporated area(m²) | Effective volume((m³) | Capacity(kg/batch) | Radiator Area(m²) | Steam (kg/h) | Electric Power (kw) | FanVolume (m³/h) | Fan Power (kw) | Inner Temp. Difference(℃) | Overall(mm) | CarNo. | TrayNo. | Weight(kg) |
| CT-C-0 | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 | ±1 | 1380×1200×2000 | 1 | 24 | 820 |
| CT-C-Ⅰ | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 | ±2 | 2360×1200×2000 | 2 | 48 | 1580 |
| CT-C-Ⅱ | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45 ×2 | ±2 | 2260×2200×2000 | 4 | 96 | 1800 |
| CT-C-Ⅲ | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | ±2 | 3240 ×2200 ×2000 | 6 | 144 | 2210 |
| CT-C-IV | 56.5 | 10.3 | 500 | 96 | 80 | 60 | 18040 | 0.45×4 | ±2 | 4280 ×2200×2770 | 8 | 192 | 2800 |
