  • SZG low temperature milk powder food rotary double cone dryer
  • SZG low temperature milk powder food rotary double cone dryer

SZG low temperature milk powder food rotary double cone dryer

The milk powder food rotary double cone dryer drying machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical industry, foodstuff industry, metallurgy industry, construction, etc. SZG milk powder food rotary double cone dryer drying machine can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.

Products Details

1.Main Application of SZG milk powder food rotary double cone dryer drying machine

SZG Rotary vacuum dryer mixer machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical, industrial, foodstuff industry, metallurgy industry, construction, etc. The milk powder food dryer drying machine can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.

This Planetary double cone rotary vacuum dryer mixer can save energy sources with low labor and high efficiency, and it only needs 2-4 hours to dry the material (<100% humidity).

This milk powder food rotary double cone dryer drying machine is suitable for chemical, pharmaceutical, food and other industries powder, granular and fibrous material concentration, mixing, drying and low moisture drying materials (such as biochemical products, etc.), more suitable for easy oxidation, volatile, heat sensitive strong stimulation, Toxic materials and materials that are not allowed to break the crystals.


2. Feature of SZG milk powder food rotary double cone dryer drying machine

1. Oil heating, the use of automatic temperature control, you can dry biochemical products and mineral raw materials, the temperature can be between 20-160 ℃, temperature ± 2 ℃ or less.

2. High thermal efficiency, than the average oven to improve more than 2 times.

3. Indirect heating, the material will not be contaminated, in line with "GMP" requirements. Equipment maintenance is simple, easy to clean.

4. Double conical rotary vacuum dryer blender machine can customized material upon client needs. like SS304, SS316L, PTFE, GLASS LINER, ETC


3. Technical Parameters of SZG milk powder food rotary double cone dryer drying machine

ModelSZG-100SZG-350SZG-500SZG-750SZG-1000SZG-1500SZG-2000SZG-3000SZG-5000
Total volume (L)10035050075010001500200030005000
Loading volume (L)≦50≦175≦250≦375≦500≦750≦1000≦1500≦2500
Rotary speed (r/min)3-13
Motor power (kw)0.751.11.523345.511
Rotary height (m)1.752.12.252.492.82.942.993.333.9
Tank inner pressure (Mpa)-0.09-0.15
Clip set pressure (Mpa)≦0.3
Working temp.(℃)Inner≤85, jacket≤140
Heating waySteam, Hot water, Heat transfer oil heating
Weight (kg)80011001200150028003300360043005500
Floor area (L*W)2160*8002260*8002350*8002550*10002860*13003260*14003760*18003900*20004770*2300


Note: these data only for reference. We can design and manufacture different model upon customers' request.


Products Picture

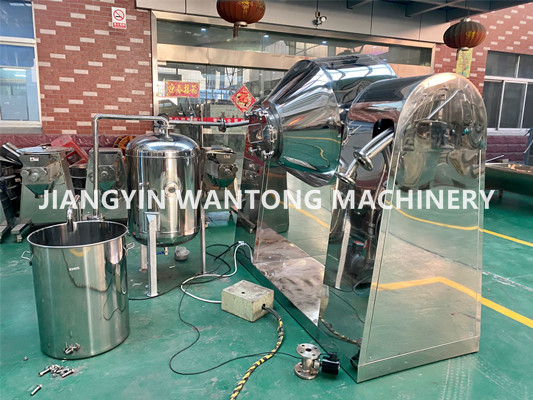

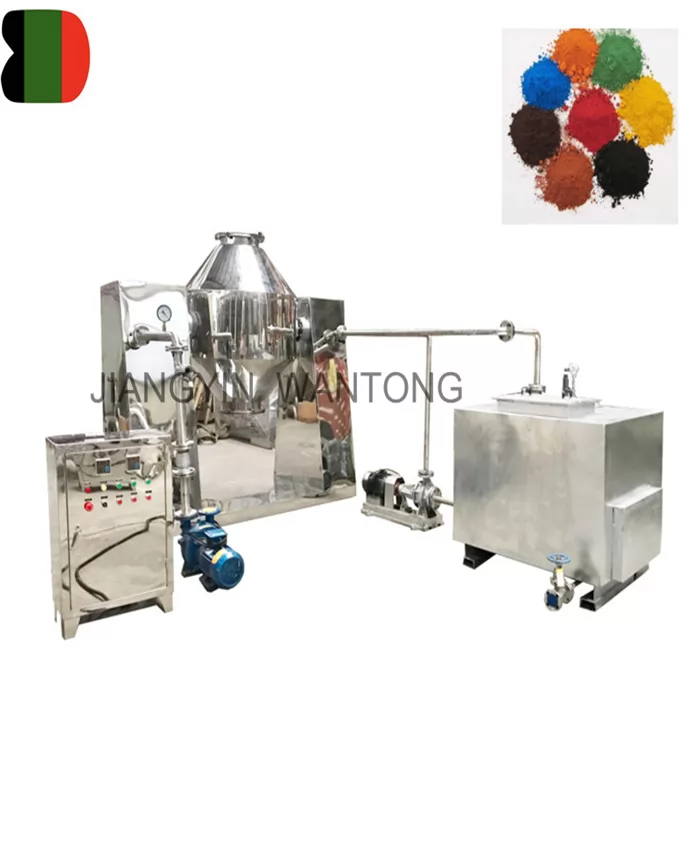

SZG low temperature milk powder food rotary double cone dryer

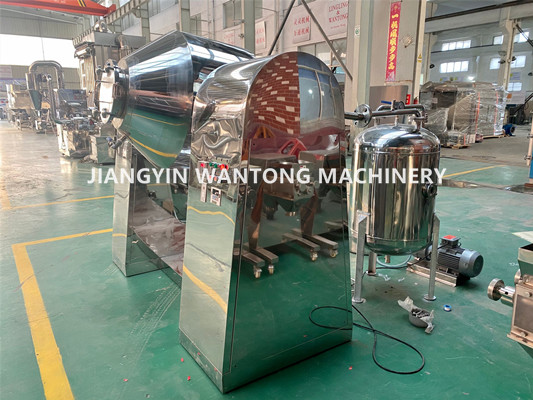

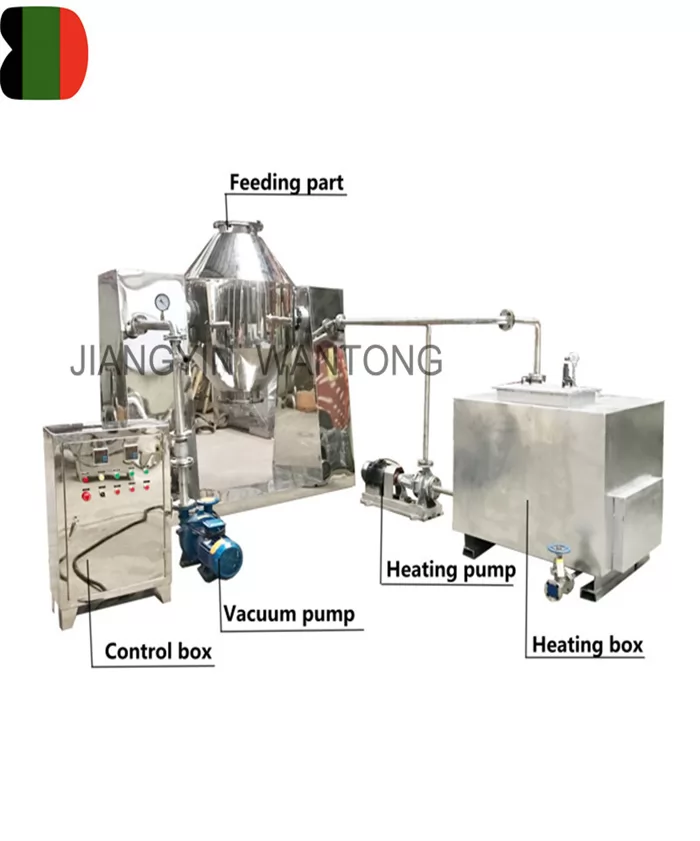

SZG low temperature milk powder food rotary double cone dryer
