Rotary Double Cone Vacuum Mixer Dryer
Home > Products > Drying Machine > SZG > Rotary Double Cone Vacuum Mixer Dryer
  • SZG Rotary Double Cone Vacuum Mixer Dryer

Glass liner double cone vacuum conical mixer dryer drying machine

The machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical industry, foodstuff industry, metallurgy industry, construction, etc. It can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.

Products Details

1.Main Application

SZG Rotary vacuum dryer mixer machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical, industrial, foodstuff industry, metallurgy industry, construction, etc. It can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.

This Planetary double cone rotary vacuum dryer mixer can save energy sources with low labor and high efficiency, and it only needs 2-4 hours to dry the material (<100% humidity).

This machine is suitable for chemical, pharmaceutical, food and other industries powder, granular and fibrous material concentration, mixing, drying and low moisture drying materials (such as biochemical products, etc.), more suitable for easy oxidation, volatile, heat sensitive strong stimulation, Toxic materials and materials that are not allowed to break the crystals.

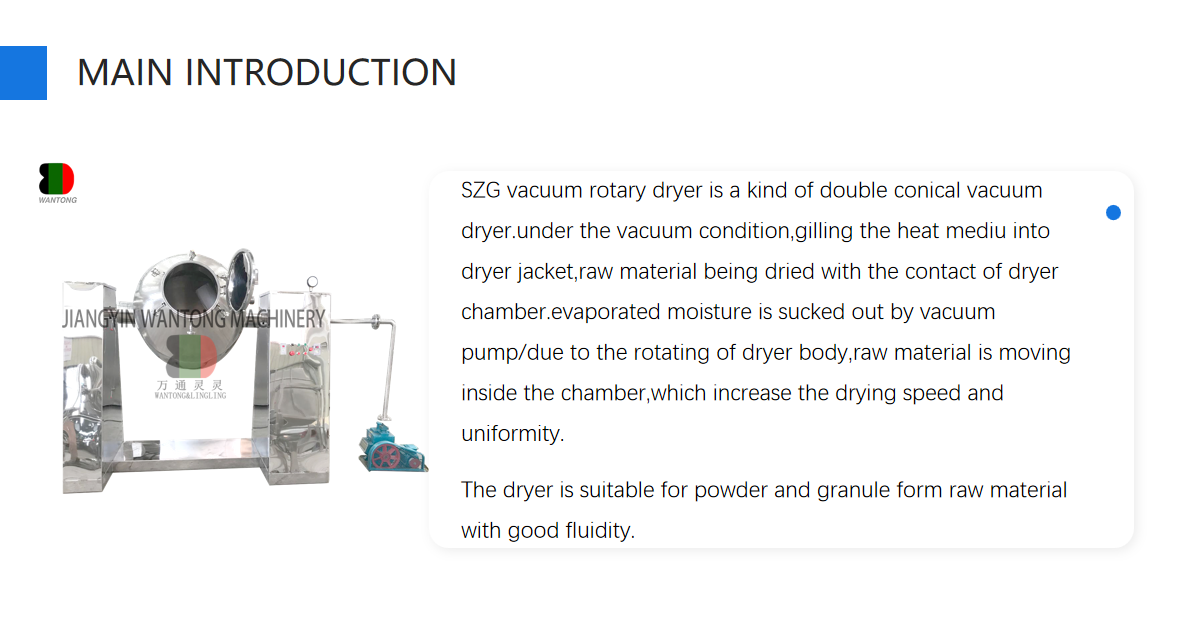

2. Working Principle

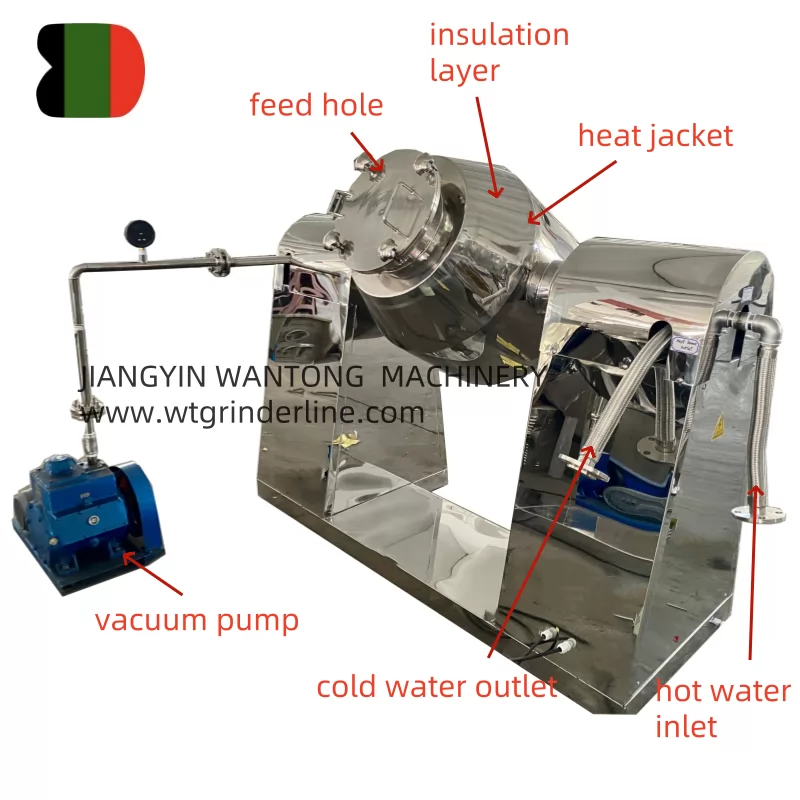

Put the material in the vacuum and heat the material indirectly by the fixture coat. When dried, it rotates slowly, and refreshes the heating surface continuously to enhance the dry speed. The vacuum pump can absorb the moisture continuously and the steam impregnate can be reclaimed by the cooler.

In the closed sandwich through the heat energy (such as hot water, low pressure steam or heat transfer oil), the heat through the inner shell to the dry material. In the power-driven, the tank for the slow rotation, the contents of the tank are constantly mixed, so as to achieve the purpose of strengthening the dry.

Material in a vacuum state, the vapor pressure drop on the surface of the material moisture (solvent) to saturation and evaporation, and timely discharge by the vacuum pump recovery. Material within the water (solvent) continue to surface penetration, evaporation, discharge, the three processes continue, the material in a very short period of time to achieve the purpose of drying.

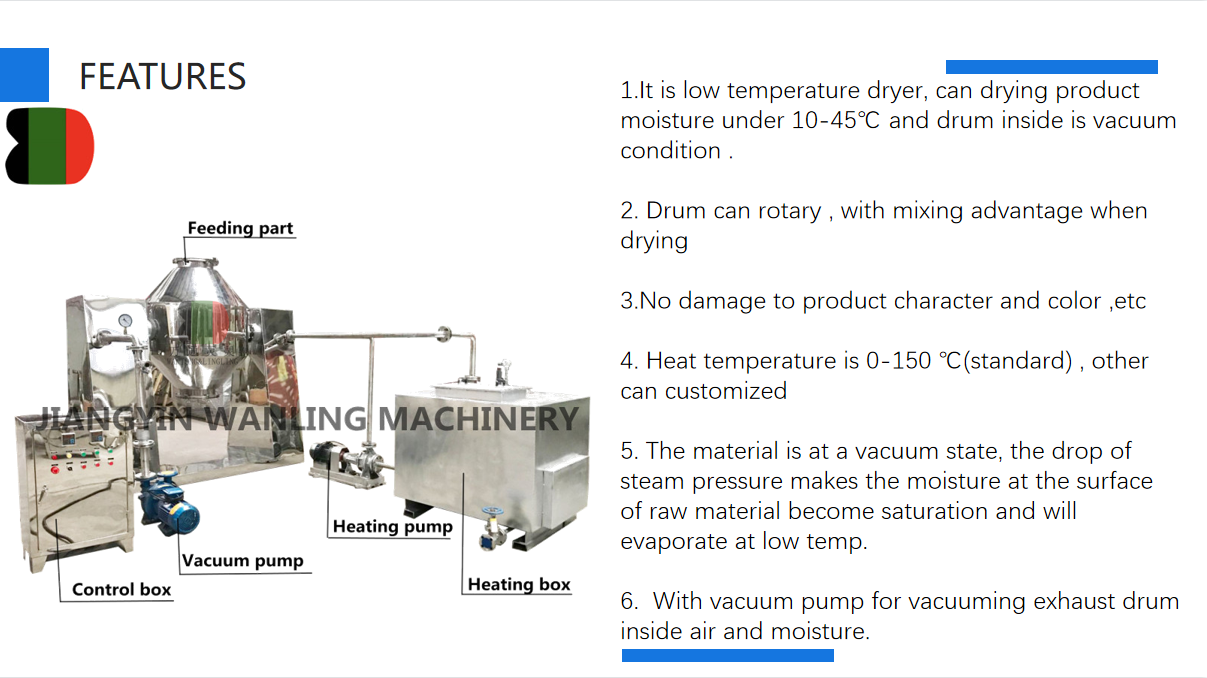

3. Feature

1. Oil heating, the use of automatic temperature control, you can dry biochemical products and mineral raw materials, the temperature can be between 20-160 ℃, temperature ± 2 ℃ or less.

2. High thermal efficiency, than the average oven to improve more than 2 times.

3. Indirect heating, the material will not be contaminated, in line with "GMP" requirements. Equipment maintenance is simple, easy to clean.

4. Double conical rotary vacuum dryer blender machine can customized material upon client needs. like SS304, SS316L, PTFE, GLASS LINER, ETC


Technical Parameters

ModelSZG-100SZG-350SZG-500SZG-750SZG-1000SZG-1500SZG-2000SZG-3000SZG-5000
Total volume (L)10035050075010001500200030005000
Loading volume (L)≦50≦175≦250≦375≦500≦750≦1000≦1500≦2500
Rotary speed (r/min)3-13
Motor power (kw)0.751.11.523345.511
Rotary height (m)1.752.12.252.492.82.942.993.333.9
Tank inner pressure (Mpa)-0.09-0.15
Clip set pressure (Mpa)≦0.3
Working temp.(℃)Inner≤85, jacket≤140
Heating waySteam, Hot water, Heat transfer oil heating
Weight (kg)80011001200150028003300360043005500
Floor area (L*W)2160*8002260*8002350*8002550*10002860*13003260*14003760*18003900*20004770*2300


Note: these data only for reference. We can design and manufacture different model upon customers' request.

SZG series double cone vacuum dryer configuration

No.ItemSpecificationSupplier
1Rack sealing materialSUS304MARKET
2Liner plateSUS304MARKET
3Jacket plateA3MARKET
4Tank outsourcedSUS304MARKET
5Explosion-proof motorsUpon modelMARKET
6ReducerUpon modelMARKET
7SpindleUpon modelSELF
8Rotary joint
SELF
9Vacuum systemSUS304SELF
10Bearing
MARKT
11BeltA typeMARKET
12Electrical appliances
MARKET
13SprocketUpon modelSELF
14Thermometer, pressure gauge
MARKET
15TetrafluoroethyleneVacuum sideSELF


5.Machine Structure Drawing:

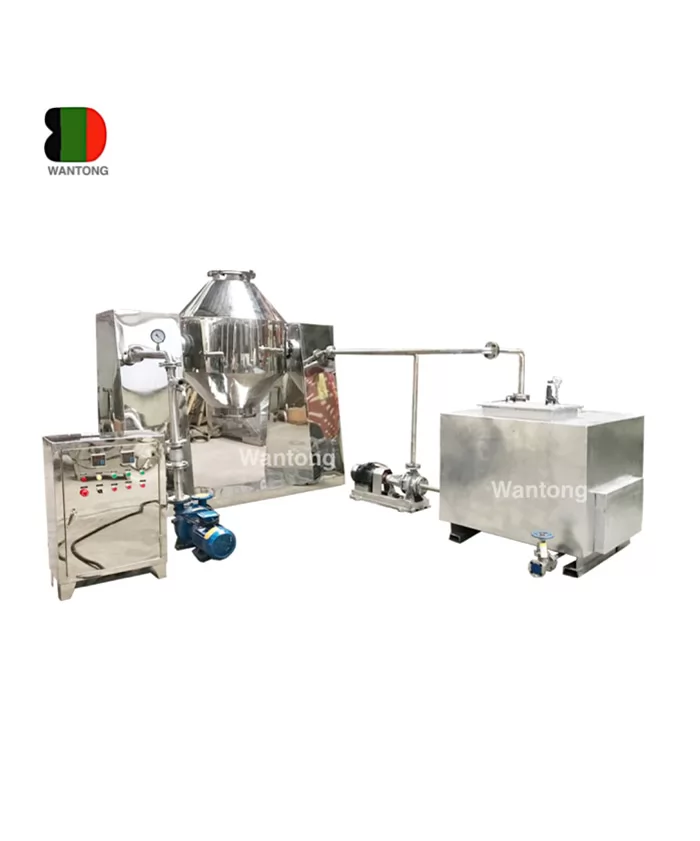

SZG Rotary Double Cone Vacuum Mixer Dryer

Products Picture

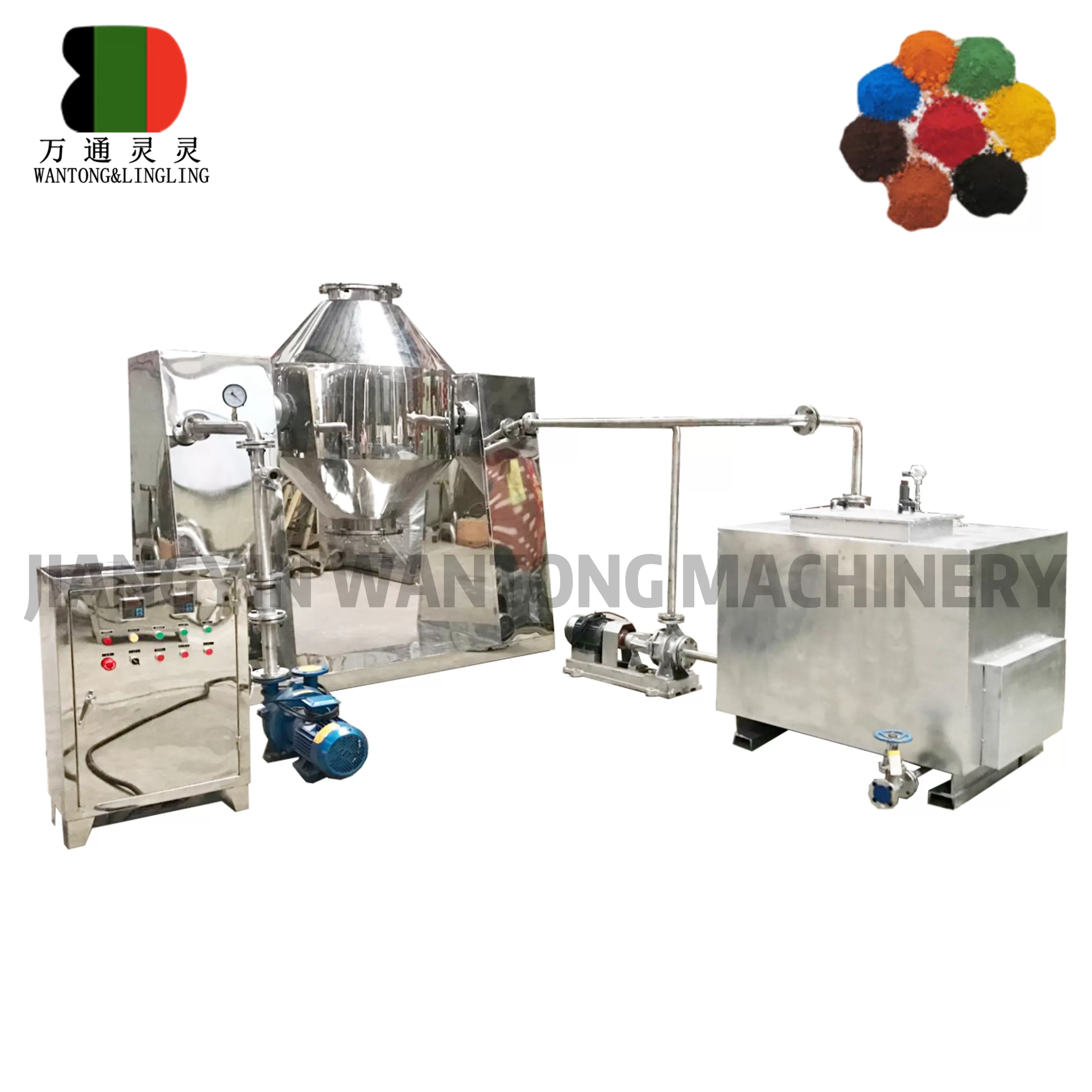

   SZG Rotary Double Cone Vacuum Mixer Dryer
