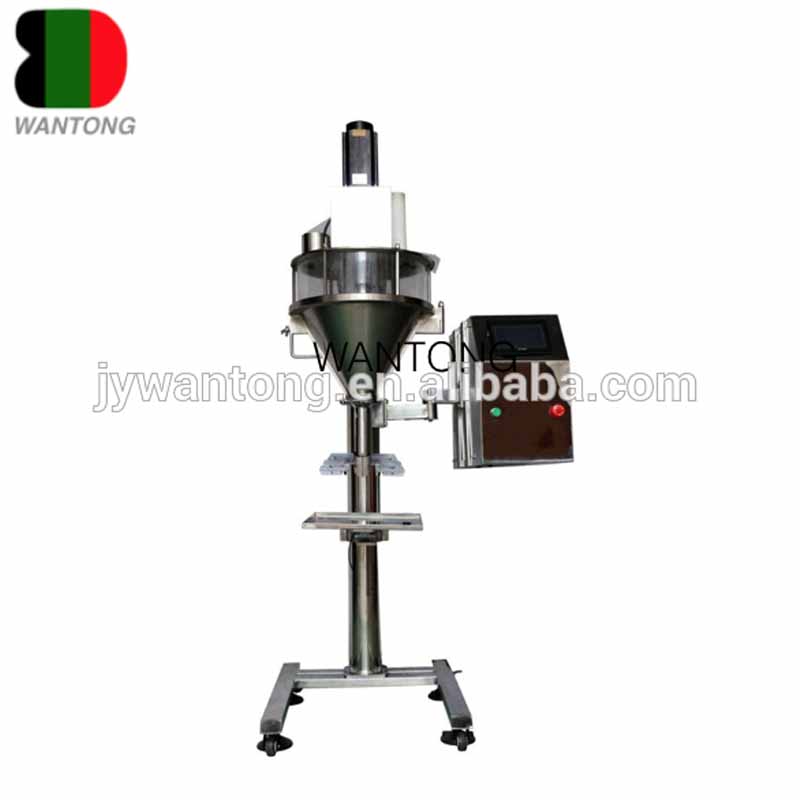

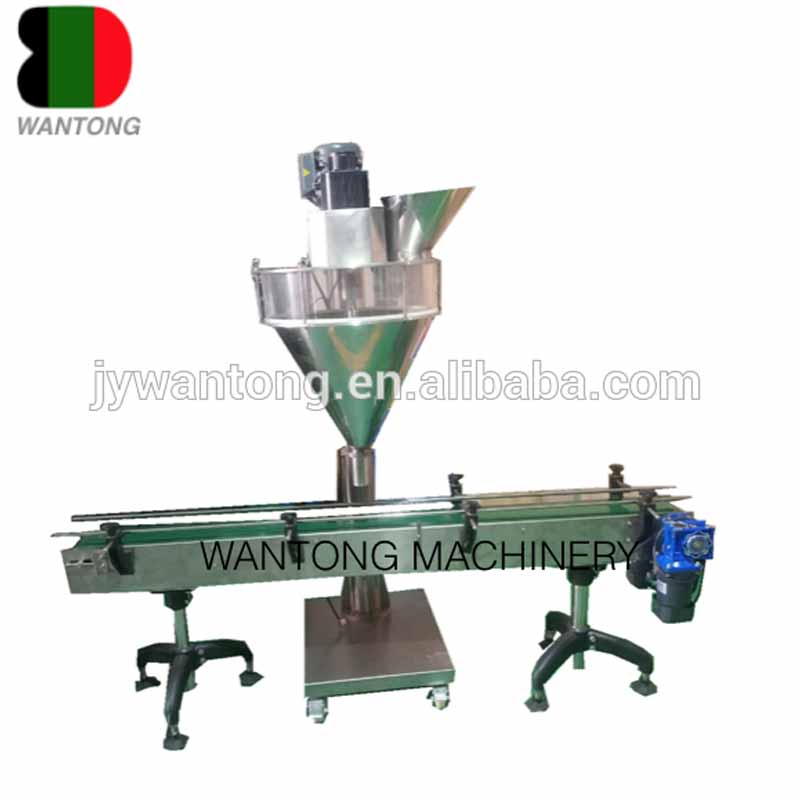

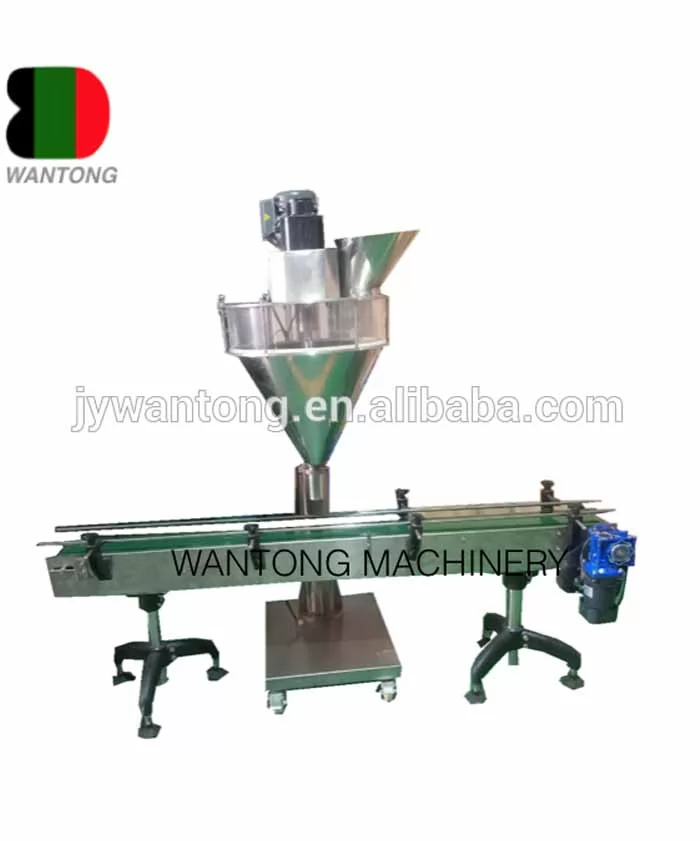

WTB HALF AUTOMATIC POWDER granules FILLING pack MACHINE

PURPOSE:

This machine is mainly used for quantitative packaging of powdery materials in food, biology, medicine, chemical industry, etc.

CHARACTERISTIC:

Step motor technology is used for control; photoelectric switch is used for control of blanking, and packaging containers (bags and cans) are unlimited. The whole machine adopts casting technology, which makes the equipment performance more stable. It can count automatically by computer. There are 1-7 speed grades to choose according to the fluidity of different circulating materials. It can be equipped with feeding machine to control the material level automatically, which is more convenient to use and improves the production efficiency.

TECHNICAL PARAMETERS:

Measurement range: 1-2000g

Accuracy class: 1.0

Packing speed: 20-40 bags / min

Power supply: 220 V, 50-60HZ, 1PHASE

Power: 1.8kw

Operating weight: 120kg

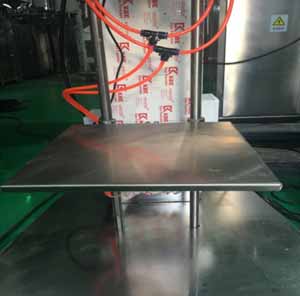

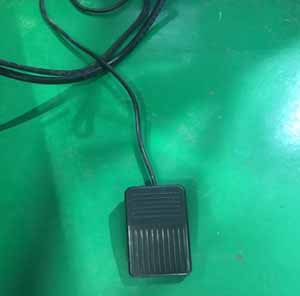

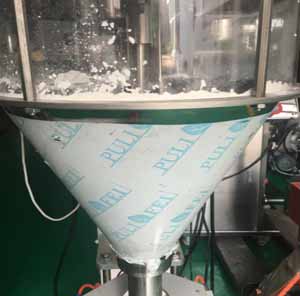

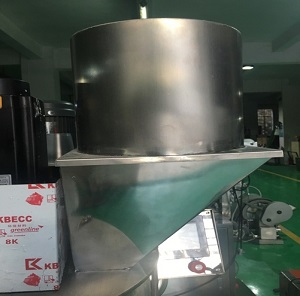

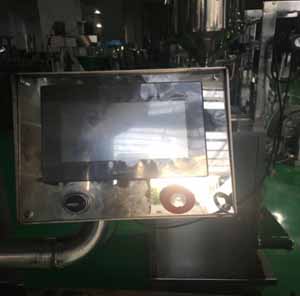

MACHINE DETAILED PICS：
