SHJ66 double screw mixer

The double screw mixer is widely used for the mixing of powder materials in the industry of pharmacy, chemical industry, food and so on; as well as for quick and even mixing of various materials in different granule size and gravity.

Products Details

1. MAIN APPLICATION of SHJ double screw mixer
The double screw mixer is widely used for the mixing of powder materials in the industry of pharmacy, chemical industry, food and so on; as well as for quick and even mixing of various materials in different granule size and gravity.

2.FEATURES of SHJ double screw mixer
With its unique three-dimensional swing, parallel moving and rolling methods, the double screw mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. SHJ double screw mixer also has the advantages of smooth running, low noise, high loading quantity and short mixing time as well.

3.WORKING PRINCIPLE of SHJ double screw mixer

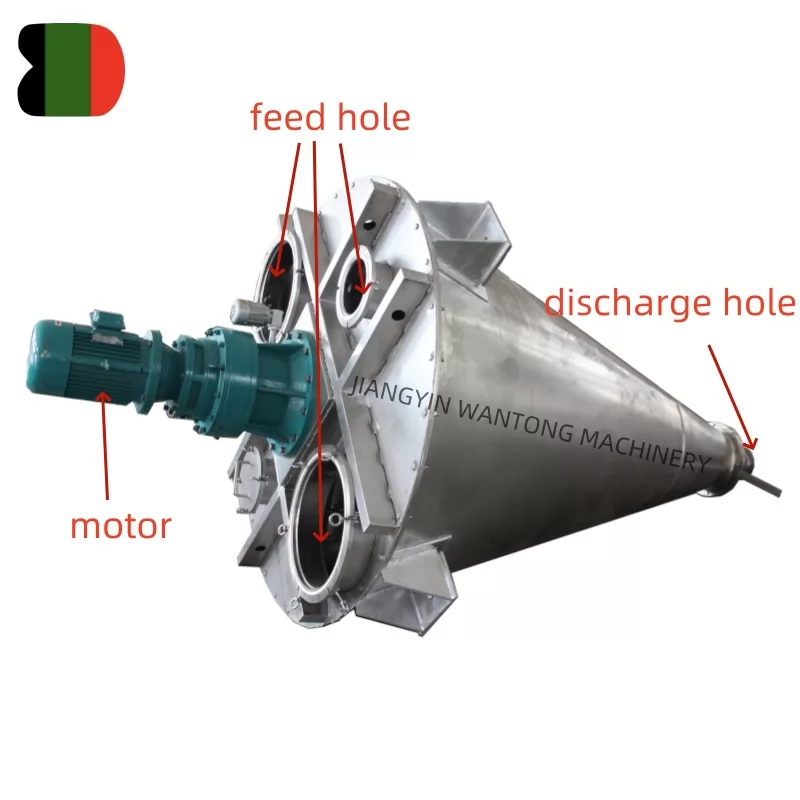

The double screw mixer is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circular, radical and axially, achieving uniform mixing of different varieties of material.

4.TECHNICAL PARAMETERS of SHJ double screw mixer

Model

SHJ-200

SHJ-500

SHJ-1000

SHJ-2000

SHJ-4000

SHJ-10000

SHJ-15000

Capacitykg

100

190

380

720

1800

4000

6000

Total volume (m3)

0.2

0.5

1

2

4

10

15

Loading Ratio

0.6

Loose density

0.8

 Particle sizemesh

20-250

Motor power(kw)

2.2

2.2

4

5.5

11

18.5

22

Mixing time(min)

6-10

6-10

8-10

Overall size

(Diam.*h)(φ/mm)

900*1905

1160*2250

1450*2700

1850*3450

2260*4210

3050*5810

3576*6310

Weightkg

600

800

1200

1800

2500

5000

6200


Products Picture

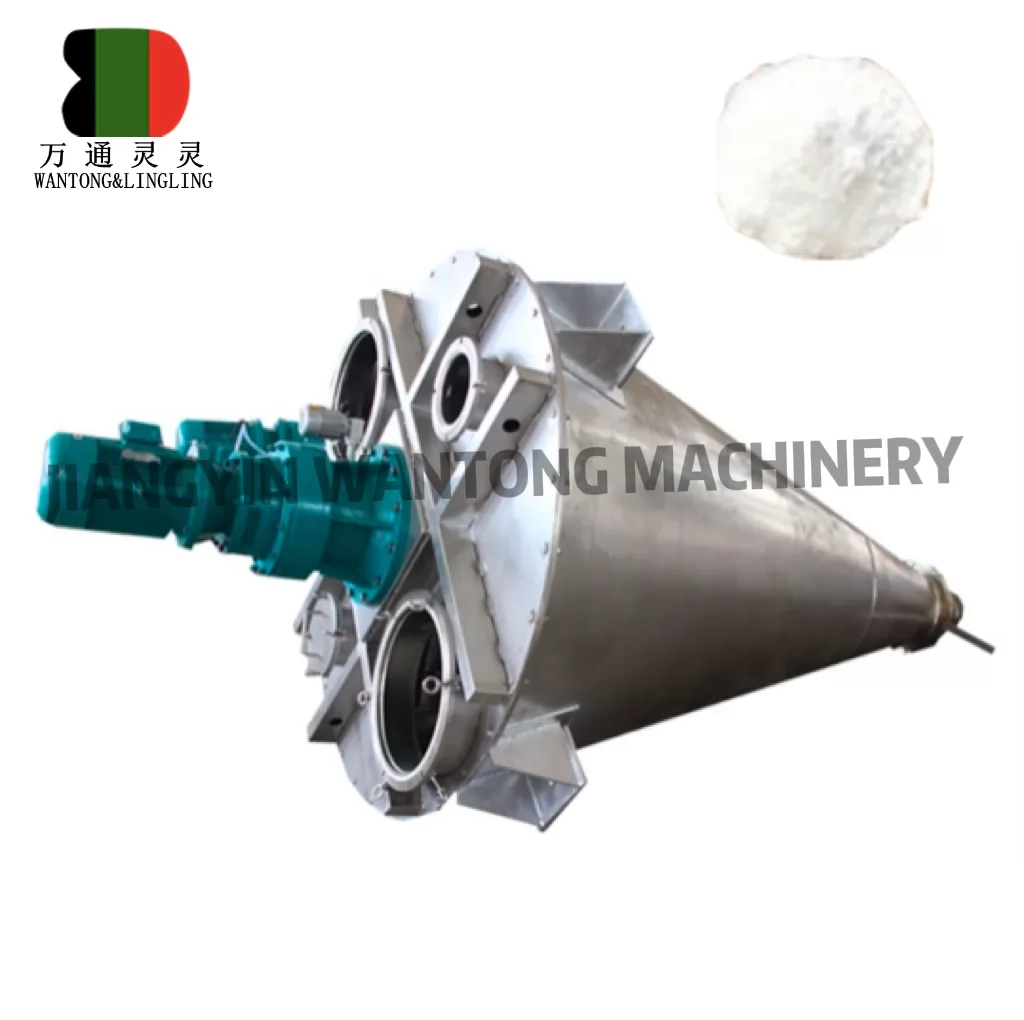

SHJ66 vertical dry powder feeds mixer blender machine

SHJ66 vertical dry powder feeds mixer blender machine
