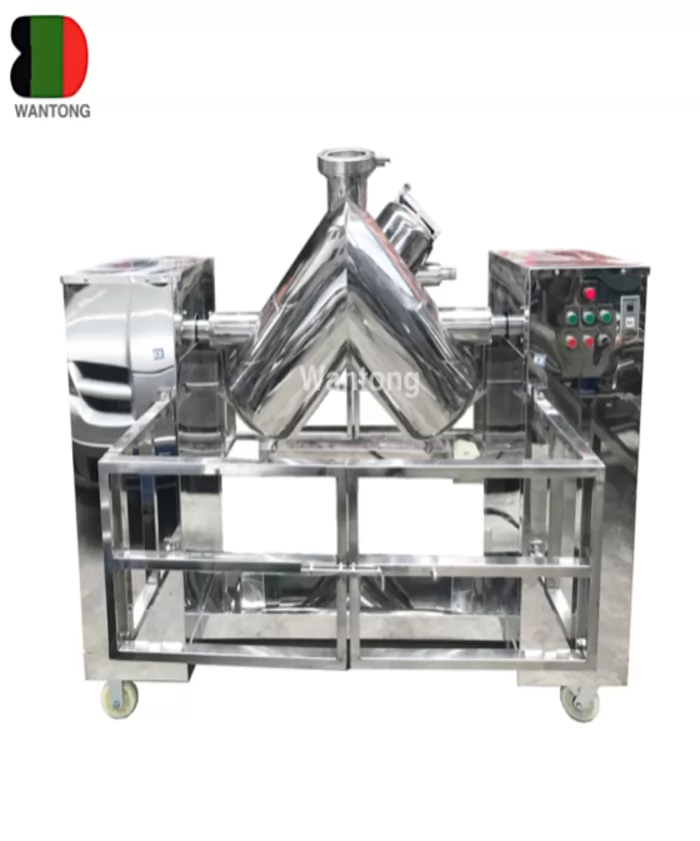

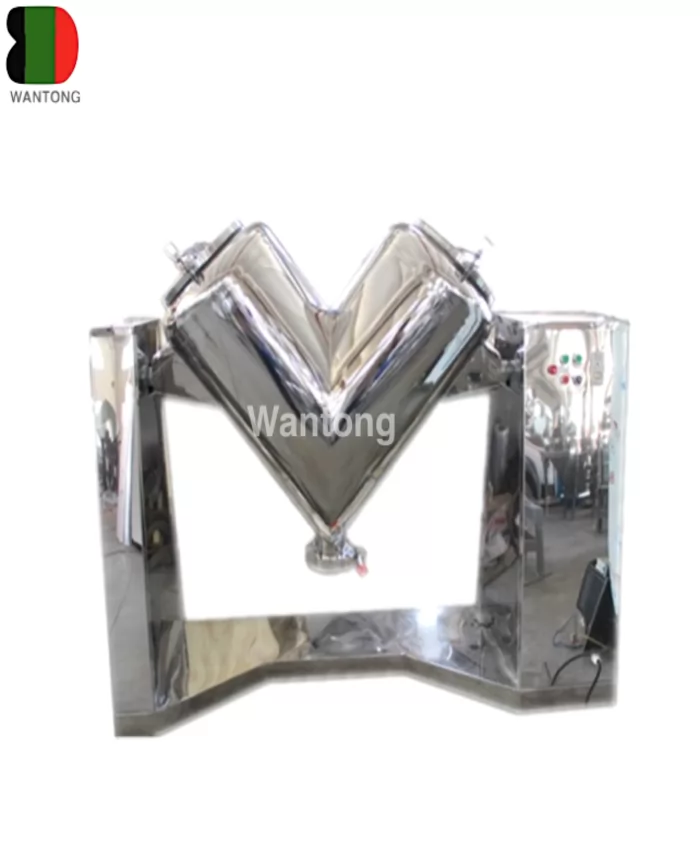

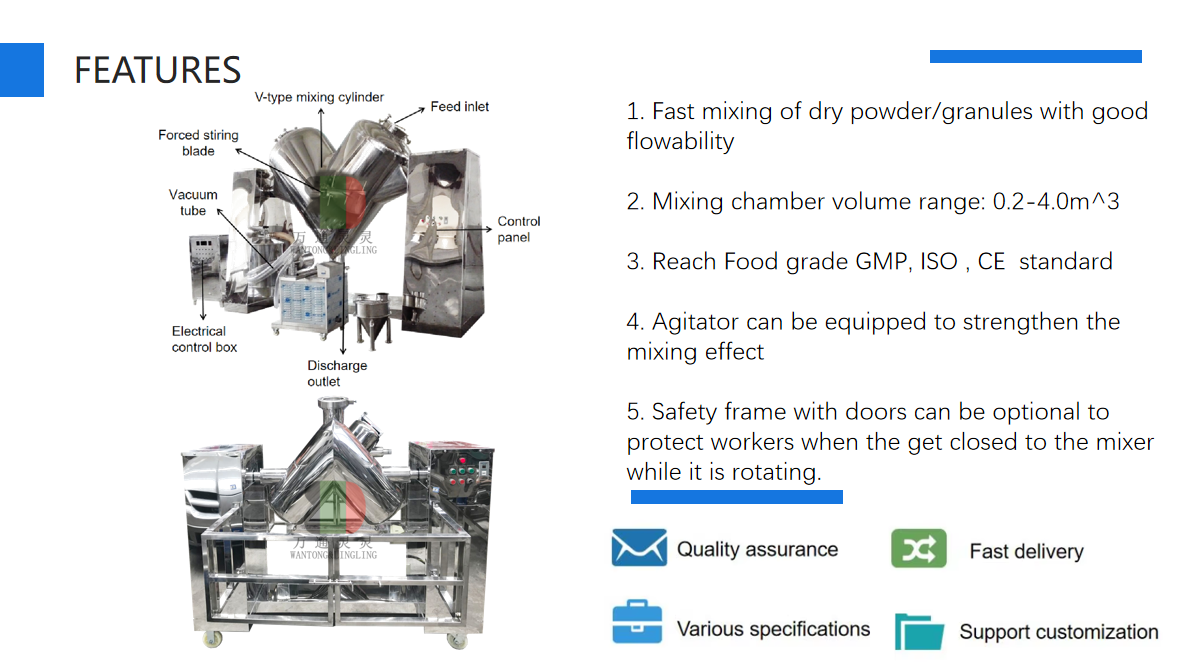

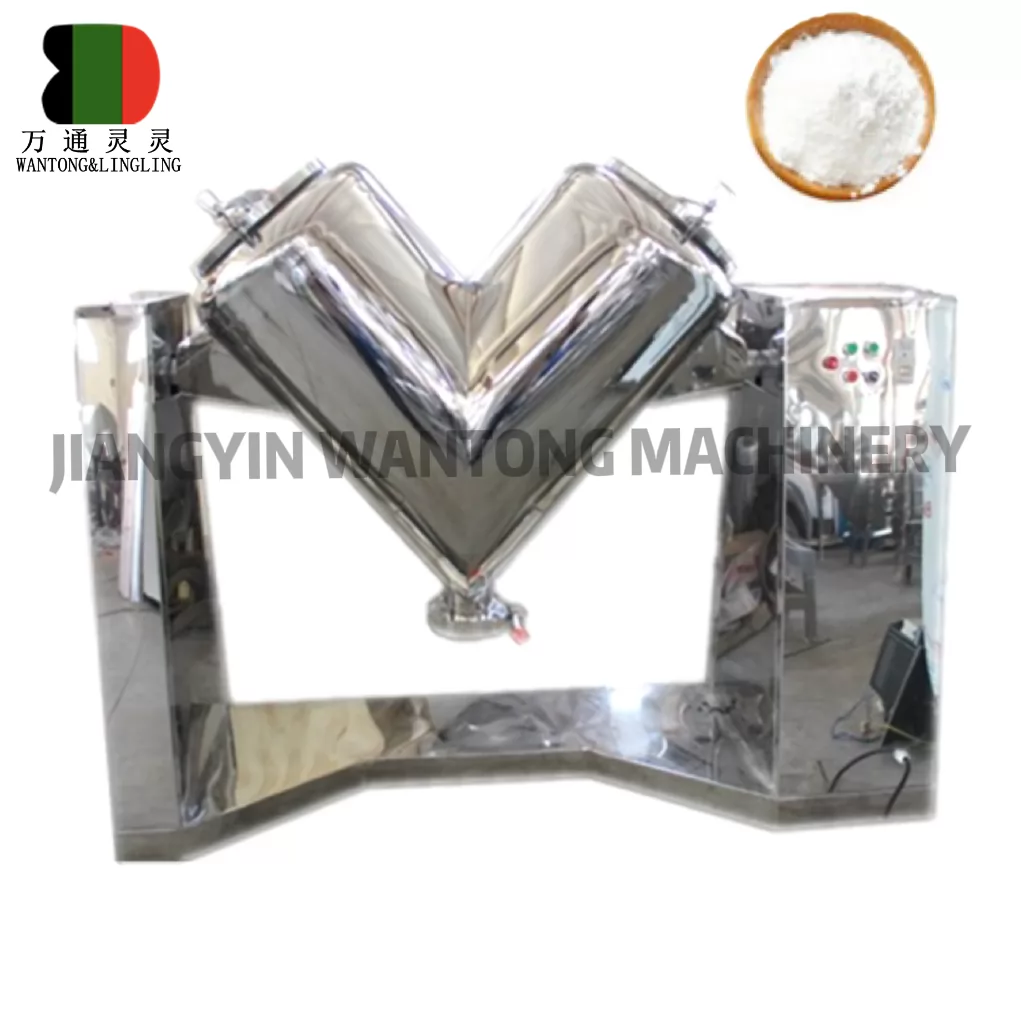

This machine is applicable to mix dry powder and granule material for the pharmacy and other relative industries.
Products Details
TECHNICAL PARAMETERS
| Type | V-200 | V-300 | V-500 | V-1000 | V-2000 | V-3000 | V-4000 | ||
| Barrel Volume(m3) | 0.2 | 0.3 | 0.5 | 1.0 | 2.0 | 3 | 4 | ||
| Capacity(kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 | 800 | ||
| Mixing time(min) | 3-8 | 6-10 | |||||||
| Blending speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 | 8 | ||
| Power（KW） | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 | 15 | ||
| Overall Size（L*W*H）(mm) | 2000*400*1600 | 2050*710*1700 | 2370*1000*1850 | 2900*1350*2450 | 3340*1650*2980 | 4690*2200*4000 | 4950*2200*4230 | ||
| Weight(kg) | 290 | 300 | 550 | 850 | 2040 | 2500 | 2800 | ||
