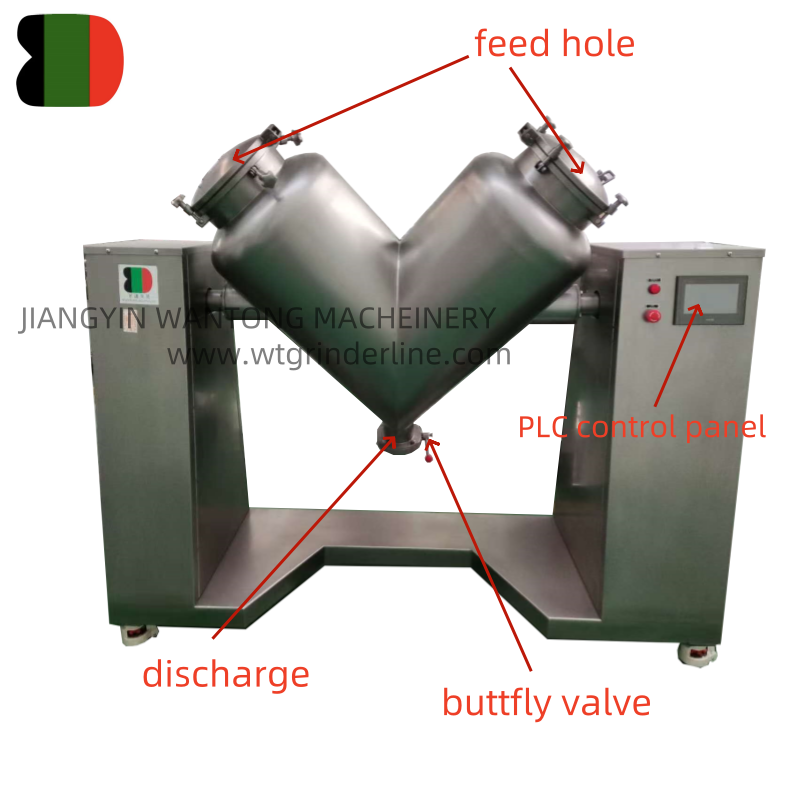

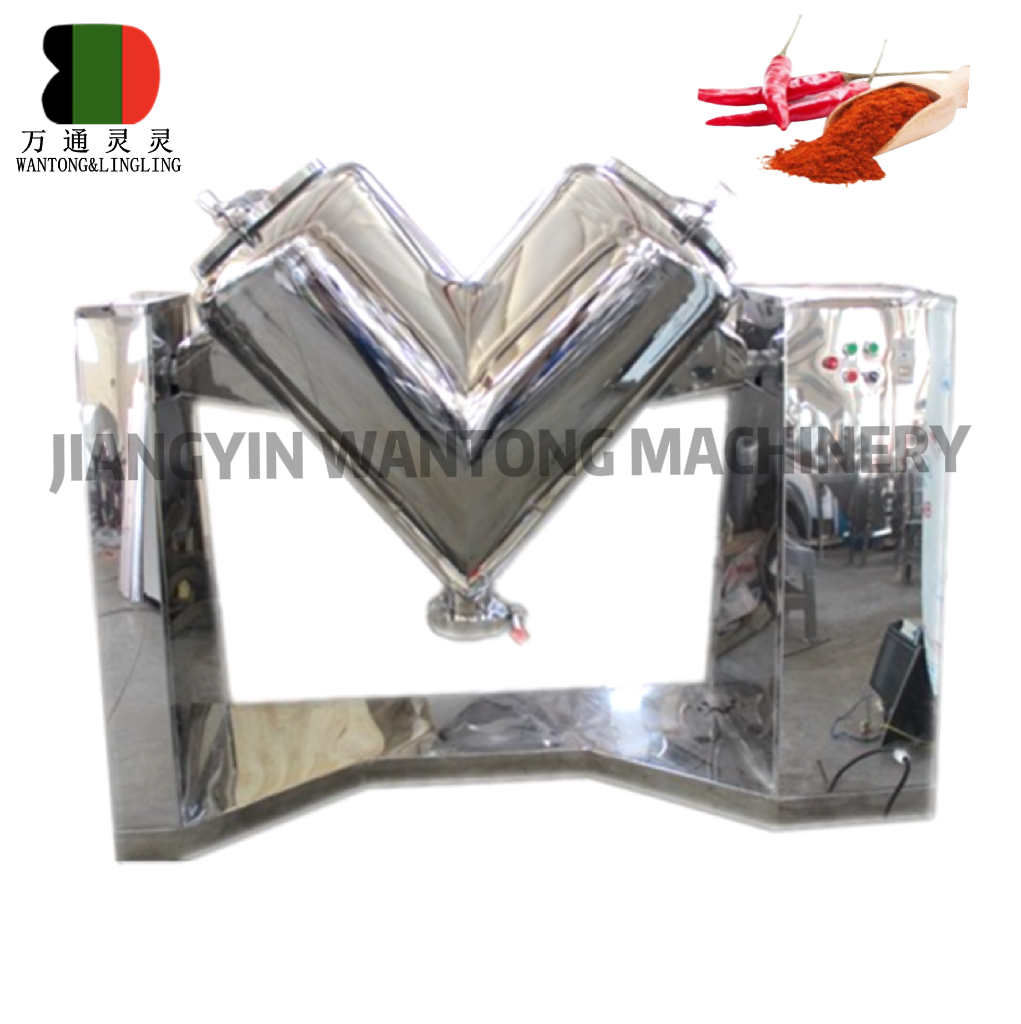

This v mixer is applicable to mix dry powder and granule material for the pharmacy and other relative industries.v shaped spice powder mixer blender mixing blending machine can mixing dry small food, industrial, spice powder very evenly. like tea,matcha, sugar, additives, supplement,potein powder etc
Products Details
TECHNICAL PARAMETERS of v mixer
| Type | V-200 | V-300 | V-500 | V-1000 | V-2000 | V-3000 | V-4000 | ||
| Barrel Volume(m3) | 0.2 | 0.3 | 0.5 | 1.0 | 2.0 | 3 | 4 | ||
| Capacity(kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 | 800 | ||
| Mixing time(min) | 3-8 | 6-10 | |||||||
| Blending speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 | 8 | ||
| Power（KW） | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 | 15 | ||
| Overall Size（L*W*H）(mm) | 2000*400*1600 | 2050*710*1700 | 2370*1000*1850 | 2900*1350*2450 | 3340*1650*2980 | 4690*2200*4000 | 4950*2200*4230 | ||
| Weight(kg) | 290 | 300 | 550 | 850 | 2040 | 2500 | 2800 | ||
