  • W Double Cone Mixng Machine

W Double Cone dry pills powder granules flour mixing mixer machine

This machine is used in pharmaceutical, chemical, food and other industries more than two kinds of dry powder and particles evenly mixer.

Watch the test video,pls click this link:

https://www.youtube.com/watch?v=f0pXCy7SvDM

Products Details

1.MAIN USE

This machine is used in pharmaceutical, chemical, food and other industries more than two kinds of dry powder and particles evenly mixer.

2.CHARACTERISTICS

This machine has the advantages of simple operation, uniform mixing, feeding can be equipped with vacuum suction device. The machine can also be based on user requirements set up a forced mixing mechanism, can be fine powder, the material after the clot or more than two kinds of powder and some water containing materials can be mixed. The other can trace phases and additives can also achieve the mixing effect (refers to only small amount of mixing the ingredients).

This machine is made of stainless steel butterfly valve, which is convenient for loading and unloading and cleaning. The tube material is made of stainless steel, the inner wall is smooth and clean, no dead angle, easy to clean, avoid mixing medicine, accord with the production and quality control of drug (GMP).

The mixing equipment uniform coefficient of variation is less than or equal to 4% degrees.

3.TECHNICAL DATA

Model1803005001000150020002500300040005000
Total volume(L)0.180.30.51.01.52.02.53.04.05.0
Capacity(kg/batch)40601002003004005006008001000
Mixing time(min)4-86-106-106-106-106-106-106-106-106-10
Rotate speed (rpm)151512121212127.87.87.8
Motor power(kw)1.11.12.245.57.57.57.51130
Overall size(L*W*H)(mm)1400
×800
×1850
1685
×800
×1850
1910
×800
×1940
2765
×1500
×2370
2960
×1500
×2480
3160
×1900
×3500
3386
×1900
×3560
4450×2200×36004750
×2500
×3680
5100
×2300
×3850
Weight(kg)28031055081098015002150250032003500

Addition: About the mixing time, because of the different kinds of materials with different elements, quantities, fineness, proportions, the mixing time varies much depending on the clients' practice.

4.EQUIPMENT CONFIGURATION

NO.ITEMSPECIFICATIONSUPPLIER
1Rack sealing materialSUS304MARKET
2Hybrid tube materialSUS304MARKET
3Hybrid motor
MARKET
4Hybrid reducerWPA-155MARKET
5principal axis2Cr13SELF
6Bearing
HAZHOU
7butterfly valveSUS304SELF
8BeltBtypeMARKET
9Electric appliance
MARKET

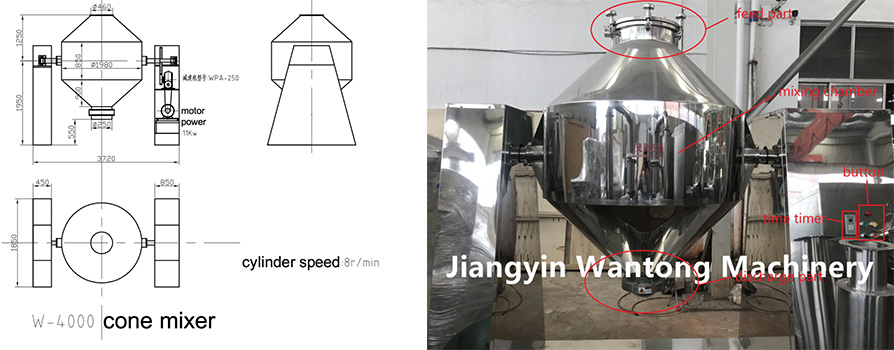

Products Picture

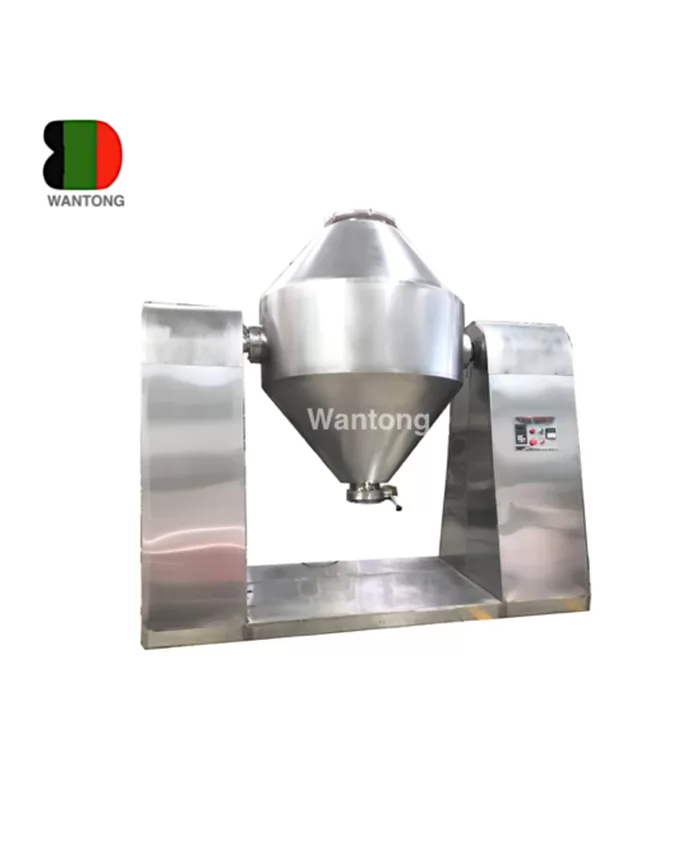

W Double Cone Mixng Machine

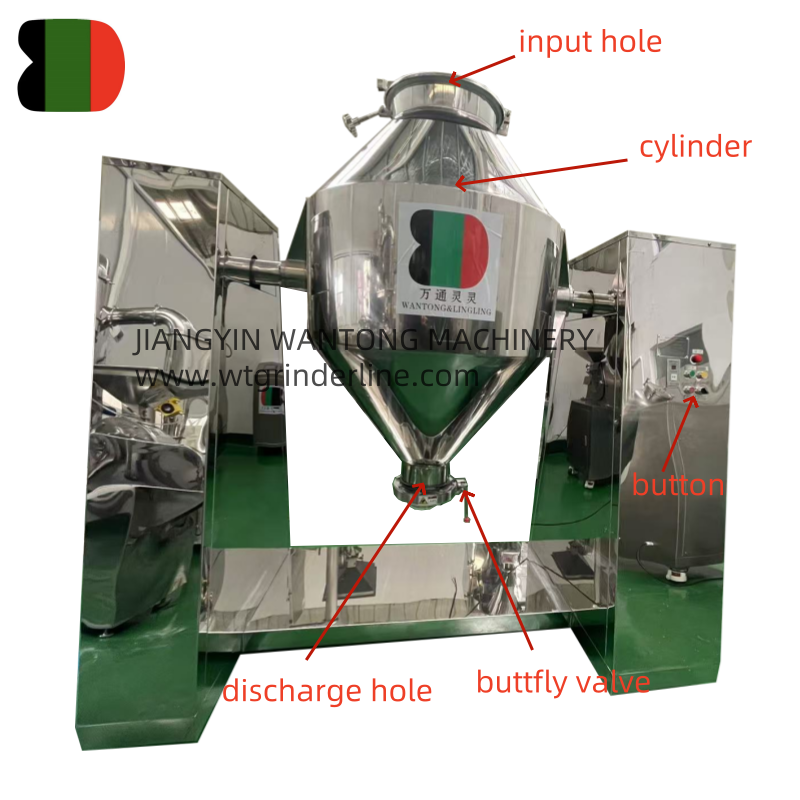

Ghl Series High Speed Mixing Granulator include: feed part, mixing chamber, button, time timer, discharge part.
