WF66 pepper chilli spice crushing grinding crusher grinder pulverizer machine

This pepper chilli spice crushing grinding crusher grinder pulverizer machine is mainly used in chemical industry, medicine (TCM), food, spices, resin powder, besmear powder etc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.


Products Details

1. MAIN APPLICATION

This pepper chilli spice crushing grinding crusher grinder pulverizer machine is mainly used in chemical industry, medicine (TCM) and food,including spices,chilli,coffee,herb,salt,pepper,tobacco,corn,leaf,cocoa,maize, supplement,turmeric,resin powder,besmear powder etc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.



2. WORKING PRINCIPLE

This pepper chilli spice crushing grinding crusher grinder pulverizer machine adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.

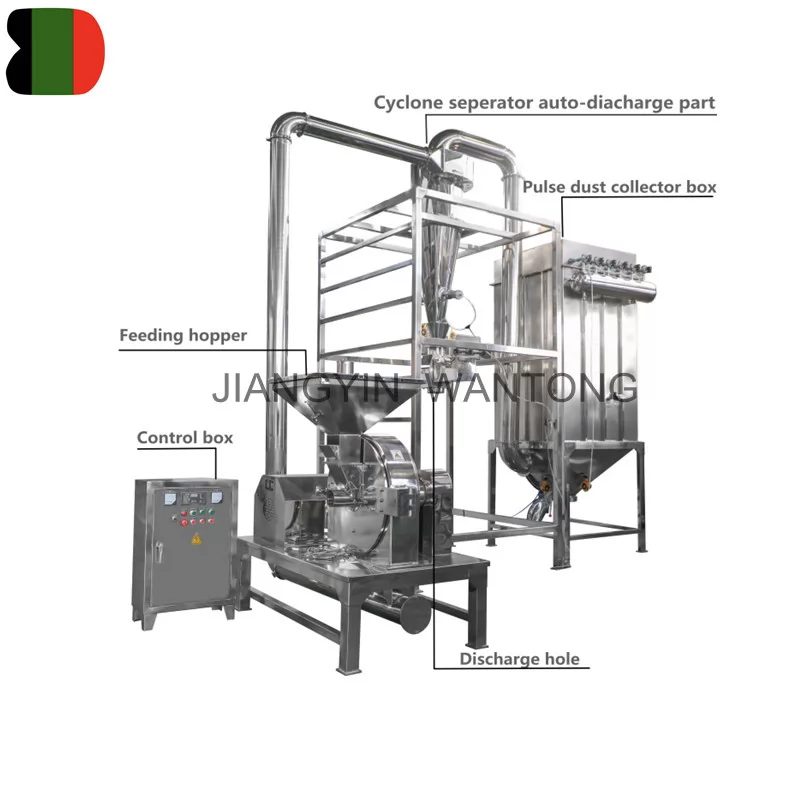

The pepper chilli spice crushing grinding crusher grinder pulverizer machine make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.



3. MAIN FEATURE

1. This pepper chilli spice crushing grinding crusher grinder pulverizer machine can match the turbine blade, it is also can match other different blade (if consumer need, we can design. so the consumer can change different blade to use)

2. This pepper chilli spice crushing grinding crusher grinder pulverizer machine has water cooling system.

3. This pepper chilli spice crushing grinding crusher grinder pulverizer machine can add the magnetic, to remove the Metal impurity (as consumer requirement)

4. This pepper chilli spice crushing grinding crusher grinder pulverizer machine can match the general dust absorption system, it also can match the pulse dust absorption system





4.  TECHNICAL PARAMETER& CONFIGURE

ModelCapacity (kg)Feed size (mm)Output size (mesh)Total power(kw)Main speed(r/min)Dimension(mm)Weight (kg)
WF-30C50-300<10  12-12011.75~38006000*1200*2900700
WF-40C80-400<1213.75~34006300*1300*29001000
WF-50C100-500<1217.25~29007000*1500*29001200
WF-60C300-800<1533.75~24007500*1500*36501500
WF-80C400-1500<1560.1~22008400*2500*48502000



Products Picture

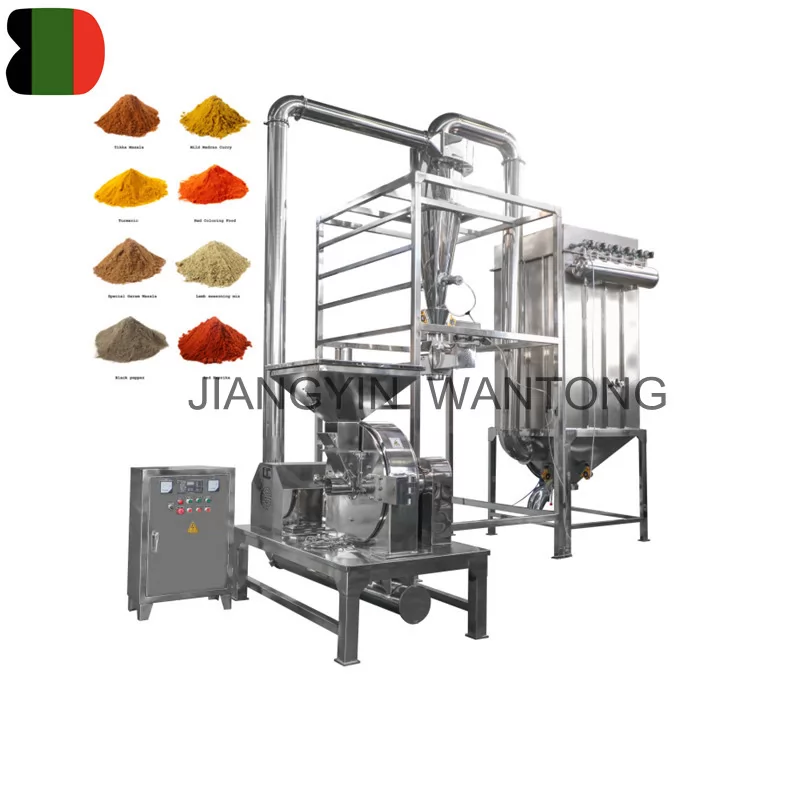

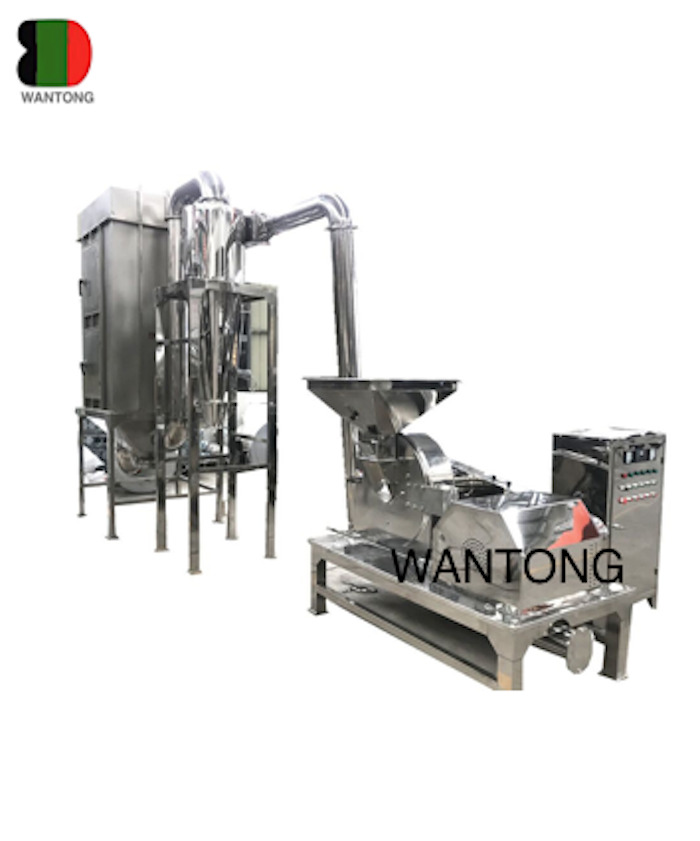

WF pepper chilli spice crushing grinding crusher grinder pulverizer machine
