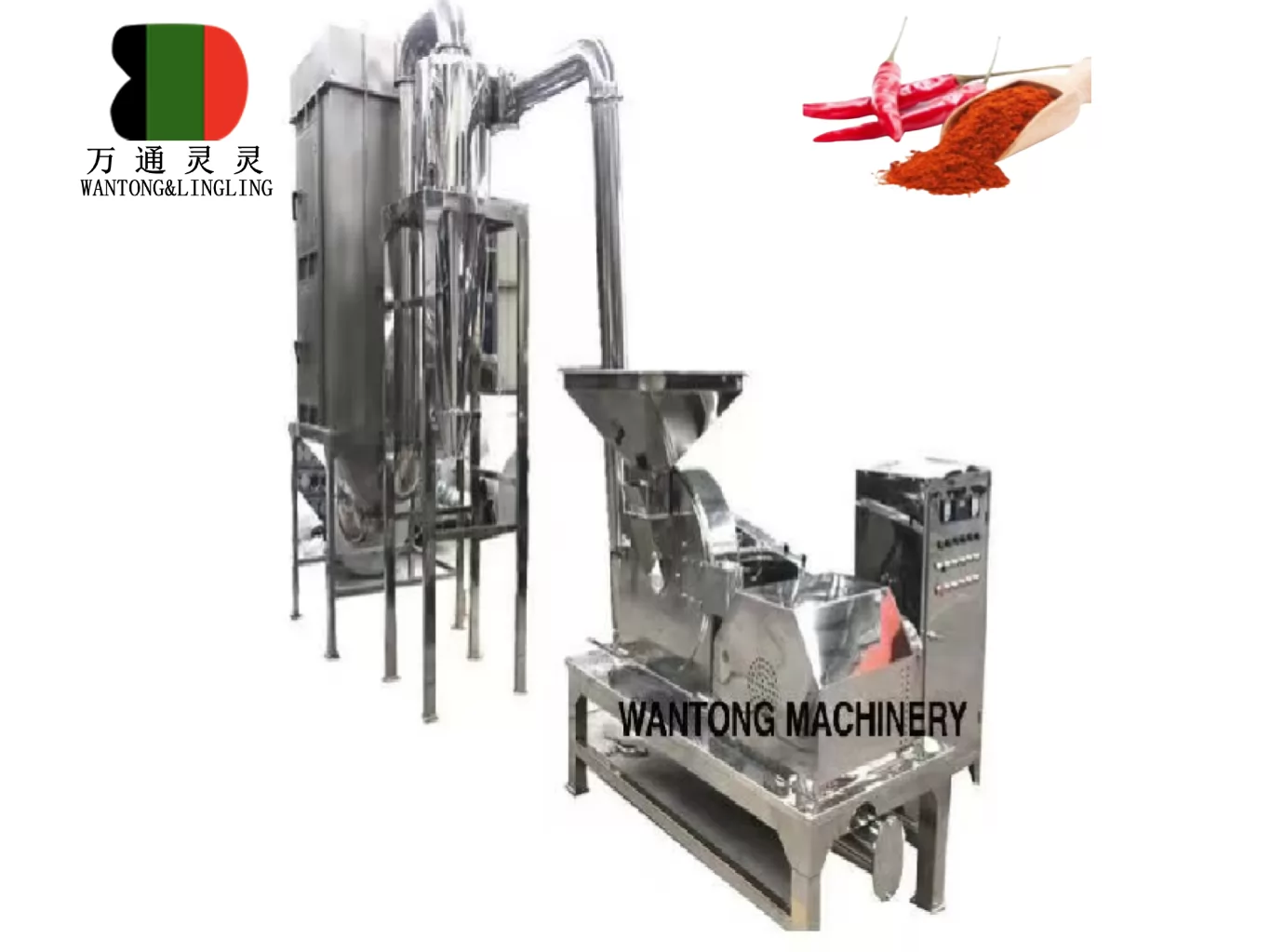

This beans crushing grinding crusher grinder pulverizer machine is mainly used in the chemical industry, medicine (TCM), food, spices, resin powder, besmear powder etc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.
Products Details
TECHNICAL PARAMETER& CONFIGURE
| Model | Capacity (kg) | Feed size (mm) | Output size (mesh) | Total power(kw) | Main speed(r/min) | Dimension(mm) | Weight (kg) |
WF- 30B | 50-300 | <10 | 12-120 | 11.75 | ~3800 | 6000*1200*2900 | 700 |
WF- 40B | 80-400 | <12 | 13.75 | ~3400 | 6000*1200*2900 | 1000 | |
WF- 50B | 100-500 | <12 | 17.25 | ~2900 | 7000*1500*2900 | 1200 | |
WF- 60B | 300-800 | <15 | 33.75 | ~2400 | 7500*1500*3650 | 1500 | |
WF- 80B | 400-1500 | <15 | 60.1 | ~2200 | 8400*2500*4850 | 2000 |
