WF66 potato pulverizer

This potato pulverizer is mainly used in chemical industry, medicine (TCM), food, spices, resin powder, besmear powderetc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.

Products Details

1.MAIN APPLICATION

This potato pulverizer is mainly used in chemical industry, medicine (TCM) and food,including spices,chilli,coffee,herb,salt,pepper,tobacco,corn,leaf,cocoa,maize,

supplement,turmeric,resin powder,besmear powder etc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.

2.WORKING PRINCIPLE AND CHARACTERISTIC

This white sugar spice powder making grinding milling grinder mill machine adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.

The potato pulverizer make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.

3.FEATURE

1. This potato pulverizer match the turbine blade, it is also can match other different blade (if consumer need, we can design. so the consumer can change different blade to use)

2. This potato pulverizer has water cooling system.

3. This potato pulverizer can add the magnetic, to remove the Metal impurity (as consumer requirement)

4. This potato pulverizer can match the general dust absorption system, it also can match the pulse dust absorption system

4.TECHNICAL PARAMETER

ModelCapacity (kg)Feed size(mm)Output size(mesh)Total power(kw)Main speed(r/min)Dimension (mm)Weight (kg)
WF-20B20-150<612-1204~4500550*600*1250250
WF-30B50-300<105.5~3800600*750*1450320
WF-40B100-400<127.5~3400750*900*1600450
WF-50B200-500<1511~2900850*900*1850580
WF-60B300-600<1522~2400950*1000*1850600
WF-80B500-1200<1537~22002400*1100*20001000

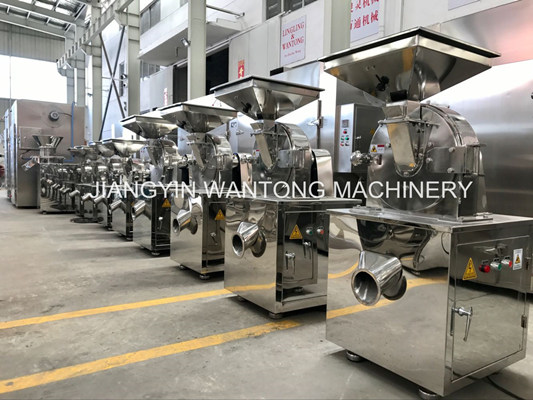

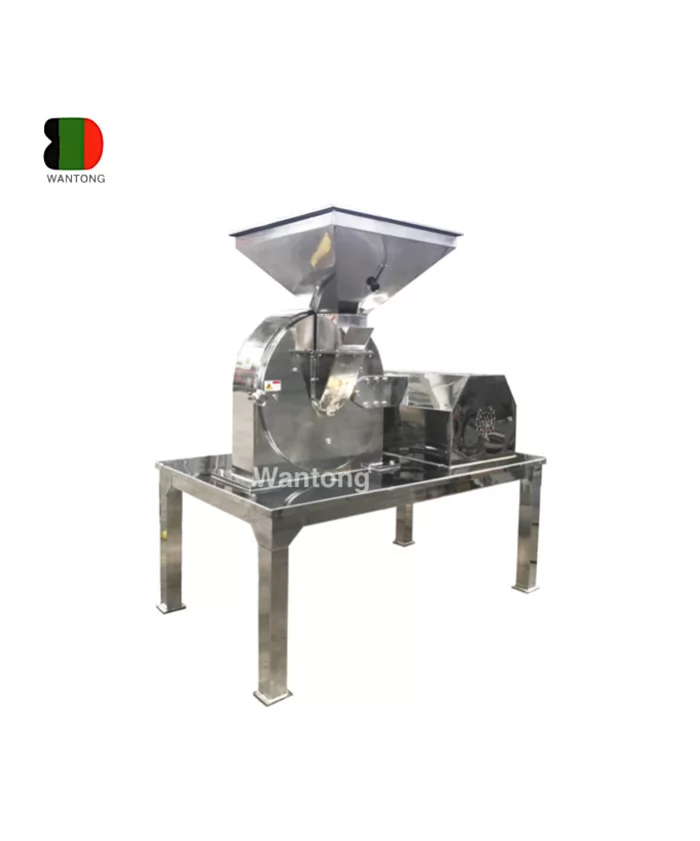

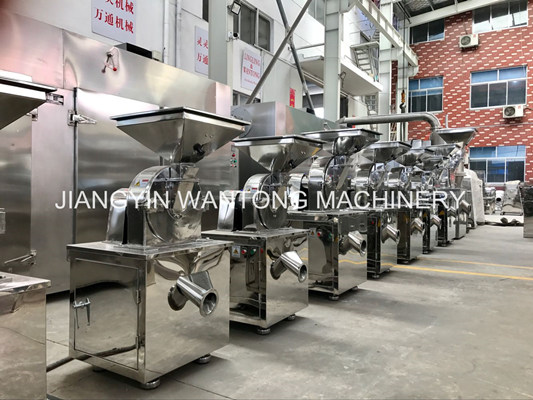

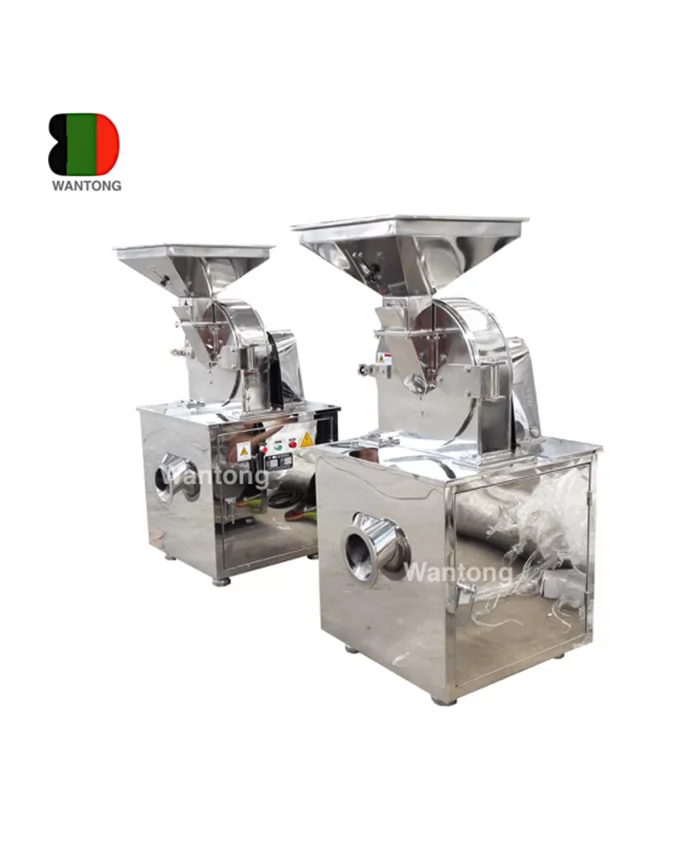

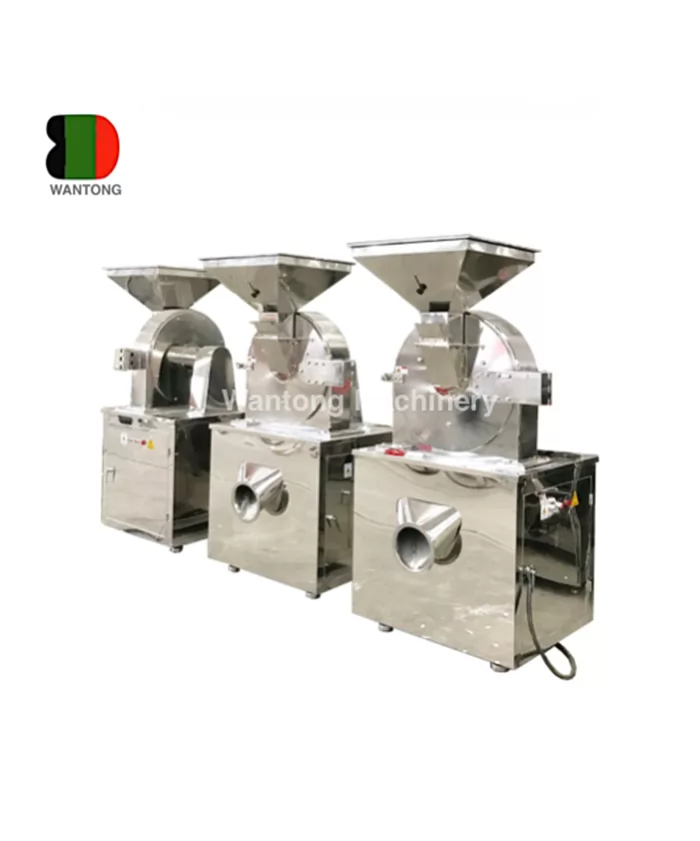

Products Picture


WF white sugar spice powder making grinding milling grinder mill machine

WF white sugar spice powder making grinding milling grinder mill machine
