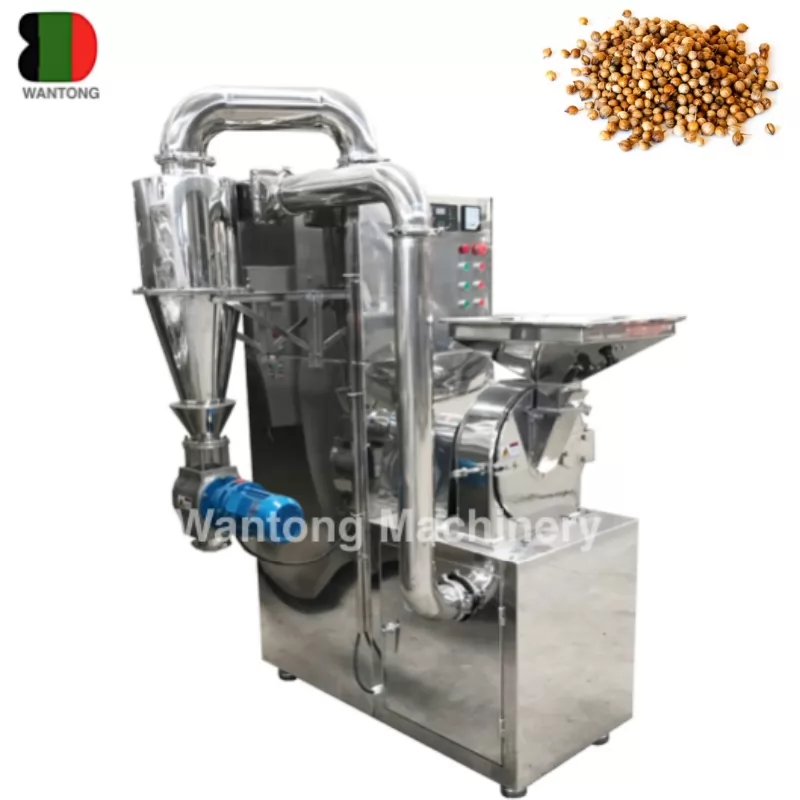

This coriander powder making machine is mainly used in chemical industry, medicine (TCM), food, spices, resin powder, besmear powderetc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.
Products Details
TECHNICAL PARAMETER
TYPE | 20B | 30B | 40B | 50B | 60B |
Capacity（kg/h） | 20-80 | 50-300 | 100-400 | 200-500 | 300-800 |
Main Speed (r/min) | 4500 | 3500 | 3400 | 2900 | 2900 |
Feed Size (mm) | 6 | 10 | 12 | 12 | 12 |
Discharge Size（mesh） | 20-150 | 20-150 | 20-150 | 20-150 | 20-150 |
Crush Power (kw) | 4 | 5.5 | 7.5 | 11 | 22 |
Fan Power(kw) | 2.2 | 2.2 | 2.2 | 3 | 3 |
Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Weight(kg) | 350 | 500 | 600 | 750 | 1000 |
Overall Dimensions(mm) | 1000*800*1600 | 1200*850*1780 | 1480*900* 1890 | 1580*1000* 2000 | 1800*1200*2250 |
