WFJ Super Micro Fine Grinder
Home > Products > Grinding Machine > WFJ Super Micro Fine Grinder
  • WFJ66 leaf leaves superfine powder making crushing crusher pulverizer machine
  • WFJ66 leaf leaves superfine powder making crushing crusher pulverizer machine

WFJ66 leaf leaves superfine powder making crushing crusher pulverizer machine

The leaf leaves superfine powder making grinding milling pulverizer machine is made up of three parts: main machine, auxiliary machine and electric control box. wfj leaf leaves superfine powder making grinding milling pulverizer machine has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the leaf leaves superfine powder making grinding milling pulverizer machine can undertake the grinding of chemical products. food medcine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.

Products Details

1.APPLICATION of wfj leaf leaves superfine powder making grinding milling pulverizer machine

The leaf leaves superfine powder making grinding milling pulverizer machine is made up of three parts: main machine, auxiliary machine and electric control box. wfj coffee bean superfine powder making grinding milling pulverizer machine has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the coffee bean superfine powder making grinding milling pulverizer machine can undertake the grinding of chemical products. food medcine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.

2.WORKING PRINCIPLE of wfj leaf leaves superfine powder making grinding milling pulverizer machine

Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades. The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation, both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.

3.MAIN FEATURE of wfj leaf leaves superfine powder making grinding milling pulverizer machine

1) Simple structure, easy in installation and maintenance.
2) Adopting advanced world famous brand motor, electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 600 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.

4.TECHNICAL PARAMETERS of wfj coffee bean superfine powder making grinding milling pulverizer machine

ModelWFJ-10WFJ-15WFJ-20WFJ-30WFJ-60WFJ-80WFJ-100
Production Capacity (kg)10~5050~10080~200200~400400~800500~1000600~1200
Feeding size (mm)<5<10<10<12<12<12<12
Crushing fineness (mesh)80-600
Motor power (kw)1213.3718.3742.577.596138
Spindle speed (rpm)4000580042003800320028002000
Weight (kg)500100012001800250030004000
Overall dimension
(L*W*H)(mm)
1700x1800x22004500x1250x27006000x1250x29007100x1300x36508000x2300x45008500x2500x460010000x2800x5000

*The above specifications are provided for reference only. We can also design and manufacture different standard upon customer's request.

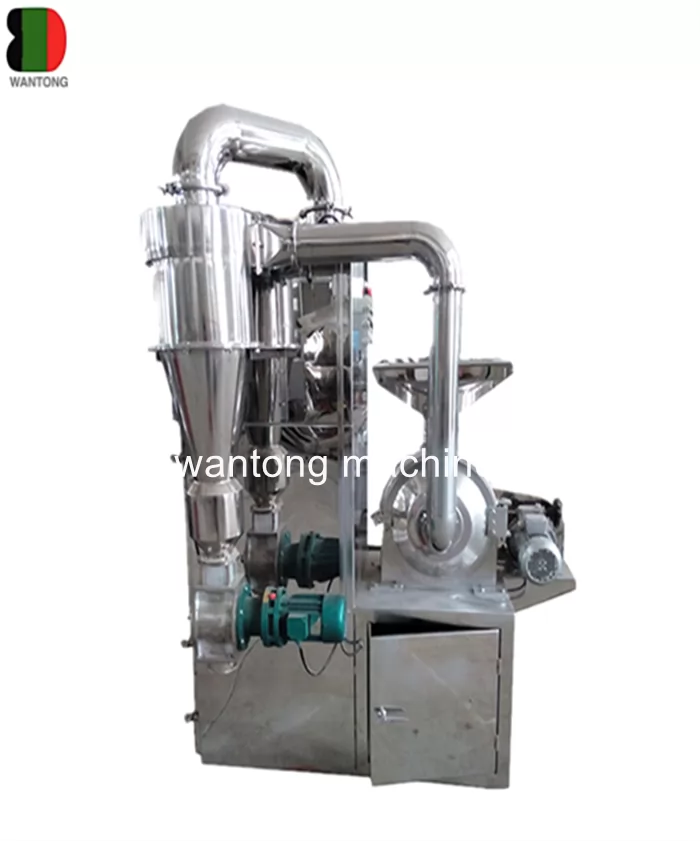

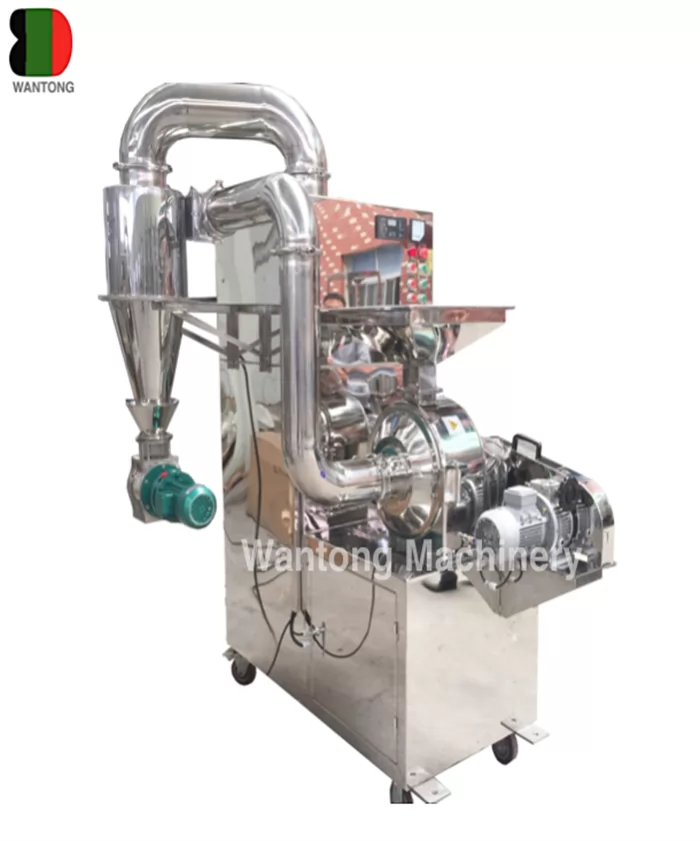

Products Picture

WFJ66 coffee bean superfine powder making grinding milling pulverizer machine
