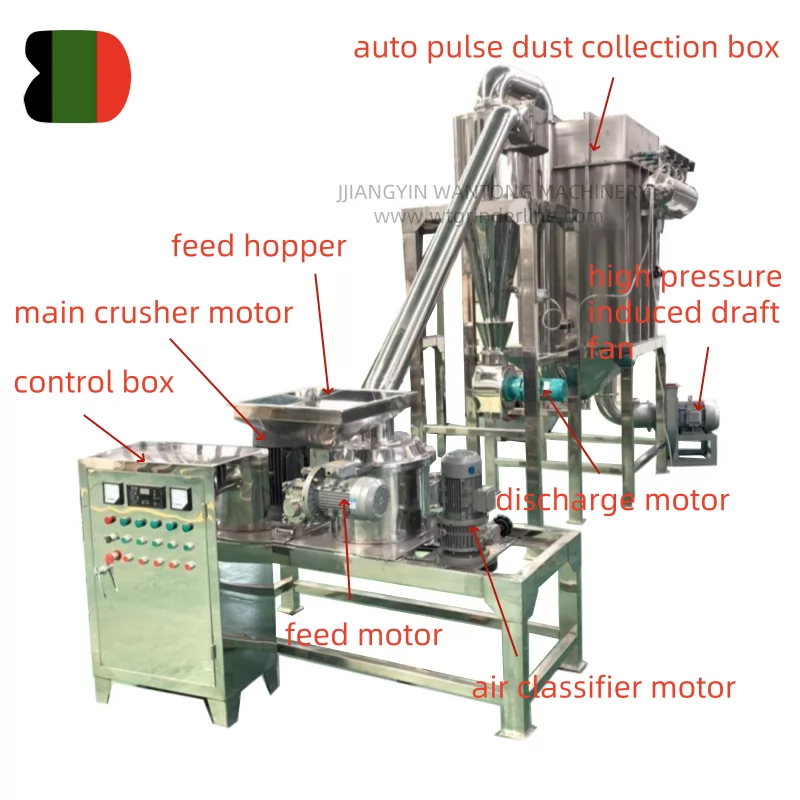

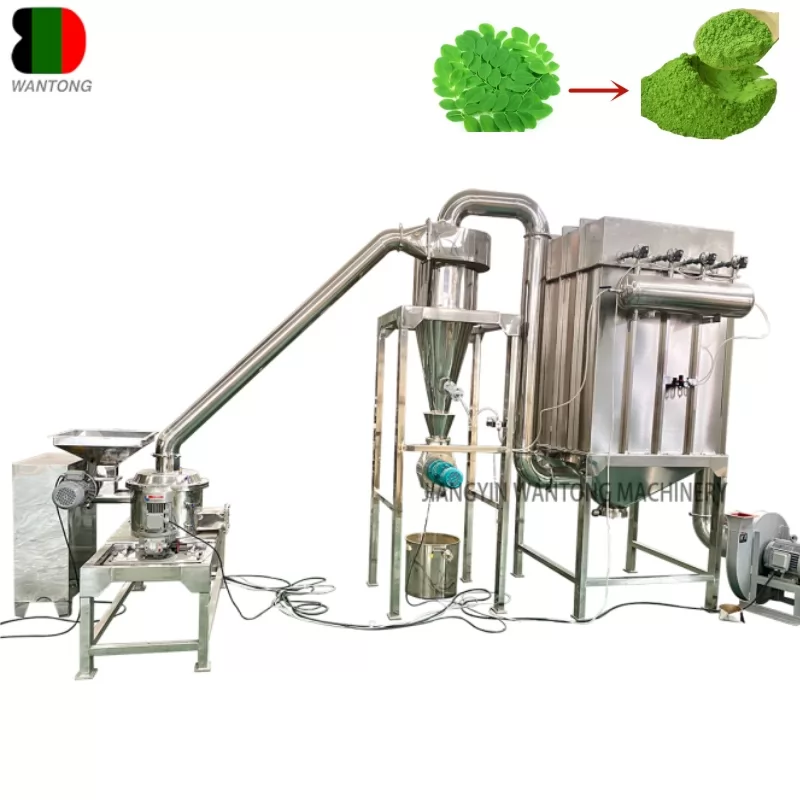

The tea grinder machine is made up of three parts: the main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products. food medicine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.
Products Details
| Model | WFJ-10 | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-100 |
| Production Capacity (kg) | 10~50 | 50~100 | 80~200 | 200~400 | 400~800 | 500~1000 | 600~1200 |
| Feeding size (mm) | <5 | <10 | <10 | <12 | <12 | <12 | <12 |
| Crushing fineness (mesh) | 80-600 | ||||||
| Motor power (kw) | 12 | 13.37 | 18.37 | 42.5 | 77.5 | 96 | 138 |
| Spindle speed (rpm) | 4000 | 5800 | 4200 | 3800 | 3200 | 2800 | 2000 |
| Weight (kg) | 500 | 1000 | 1200 | 1800 | 2500 | 3000 | 4000 |
| Overall dimension (L*W*H)(mm) | 1700x1800x2200 | 4500x1250x2700 | 6000x1250x2900 | 7100x1300x3650 | 8000x2300x4500 | 8500x2500x4600 | 10000x2800x5000 |
*The above specifications are provided for reference only. We can also design and manufacture different standard upon customer's request.
