WFM Microfine Vibration Grinder
Home > Products > Grinding Machine > WFM Microfine Vibration Grinder
  • WFM66 gastrodin medicine micro fine vibration crusher grinder machine
  • WFM66 gastrodin medicine micro fine vibration crusher grinder machine

WFM66 gastrodin medicine micro fine vibration crusher grinder machine

The gastrodin medicine micro fine vibration crusher grinder machine is effective for any fiber, high toughness, high hardness or a certain degree of water content of the material can be effectively crushed, especially for Chinese medicine cell wall and other purposes designed to improve the bioavailability of drugs and the use of conventional methods can not meet the requirements Fineness of the material.

Products Details

1.MAIN USE of wfm gastrodin medicine micro fine powder making grinding milling crushing grinder crusher pulverizer machine

The gastrodin medicine micro fine powder making grinding grinder machine is effective for any fiber, high toughness, high hardness or a certain degree of water content of the material can be effectively crushed, especially for Chinese medicine cell wall and other purposes designed to improve the bioavailability of drugs and the use of conventional methods can not meet the requirements Fineness of the material.The machine can be applied to the following materials:ganoderma lucidum,mushroon,instant coffee,etc.

2.MAIN FEATURE of wfm gastrodin medicine micro fine powder making grinding milling crushing grinder crusher pulverizer machine

The gastrodin medicine micro fine powder making grinding grinder machine uses the optimized vibration parameters to make the medium produce vibration shock, and at the same time rotation and revolution, so that the object is subjected to positive impact and at the same time by high-strength cutting effect, so high-speed high-energy crushing, the machine has high efficiency, Pollution and crushing temperature controllable characteristics, and can achieve more than two kinds of materials, precision mixing, composite and coating operations.

You can set the vibration grinding time for control the final powder size fine or not fine. If you want to grind micro fine, you can set 45mins or more. If your expected final powder is not so fine, you can set only 10mins or less.

Very low noise cause the noise reducer room closed the main grind part

Disinfection system.

With water cooler, helps machine more efficient.

Time control system, more easily operation.

3.WORKING PRINCIPLE of wfm gastrodin medicine micro fine powder making grinding milling crushing grinder crusher pulverizer machine

The gastrodin medicine micro fine powder making grinding grinder machine is a horizontal vibration mill, the material from the hopper into the crushing chamber, the vibration will crush the indoor grinding rod and material collision, grinding and get crushed, the machine is equipped with water cooling device, can control the temperature of the crushing chamber, machine According to "GMP" standard design, the use of stainless steel manufacturing, equipment in the state of full sealed operation, no dust flying, no environmental pollution.

4.TECHNOLOGY DATA (only for reference data, can customized)

MODEL2050100
Load volume(L)2050100
Capacity(kg/batch)2-1010-3020-60
Final powder fineness200-3000mesh
Cooling methodWater cooling
Power(kw)27.511
Overall size(mm)
(L×W×H)
1250×900×14002100×1000×16002850×1500×1800
Weight(kg)5009501500

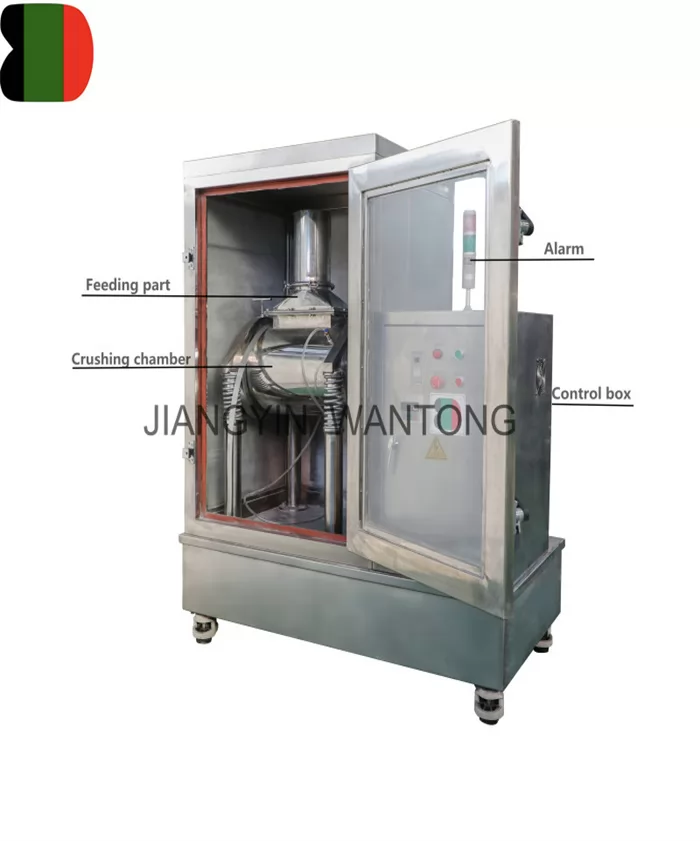

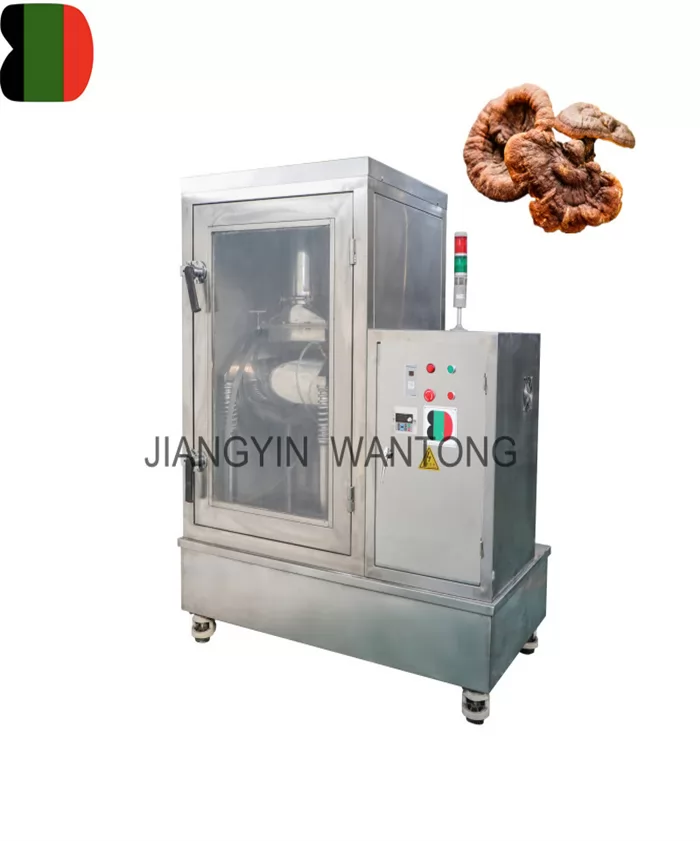

Products Picture

WFM66 chinese medicinal materials micro fine powder making grinding grinder machine
