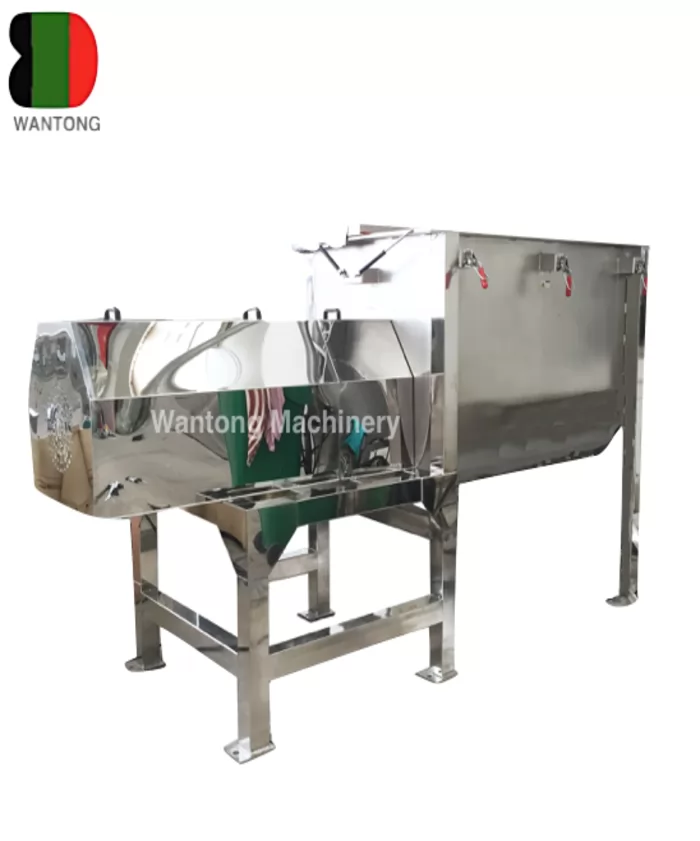

  • Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

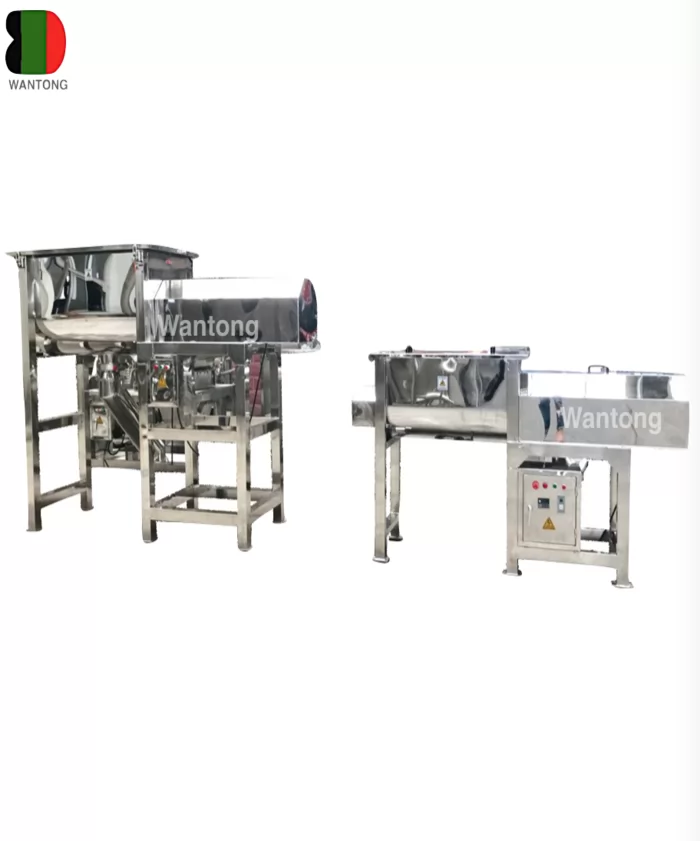

  • Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

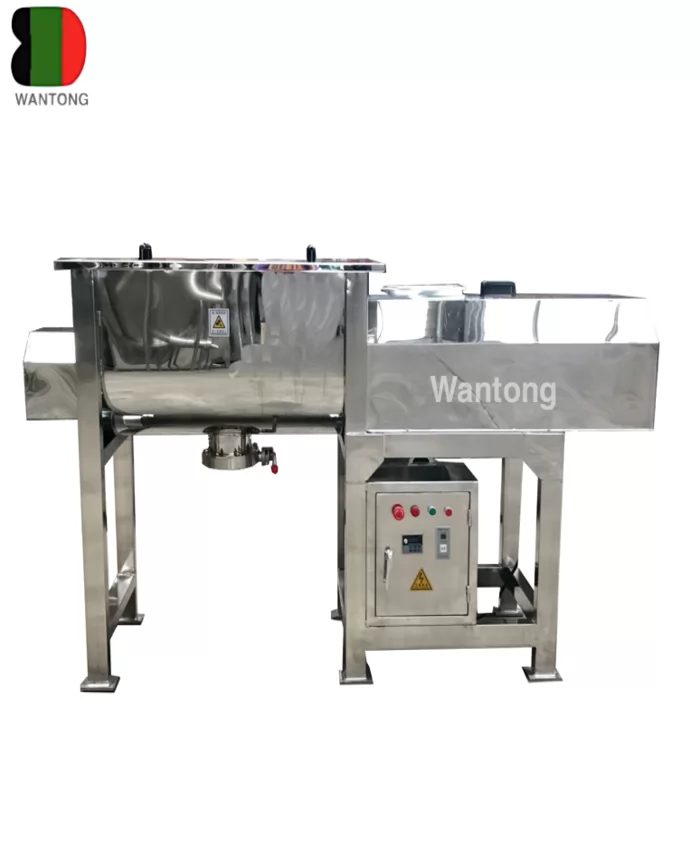

  • Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

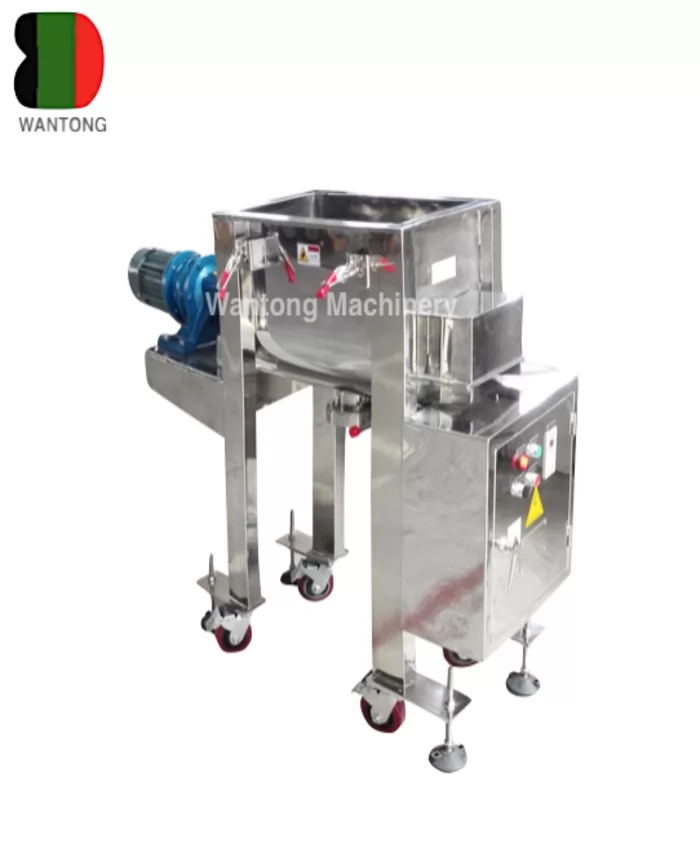

  • Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

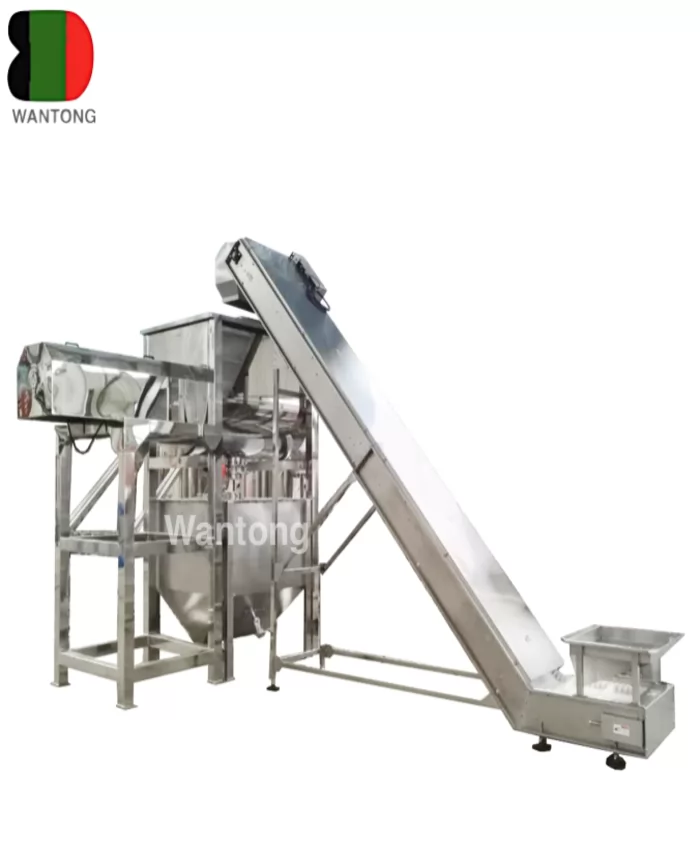

  • Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

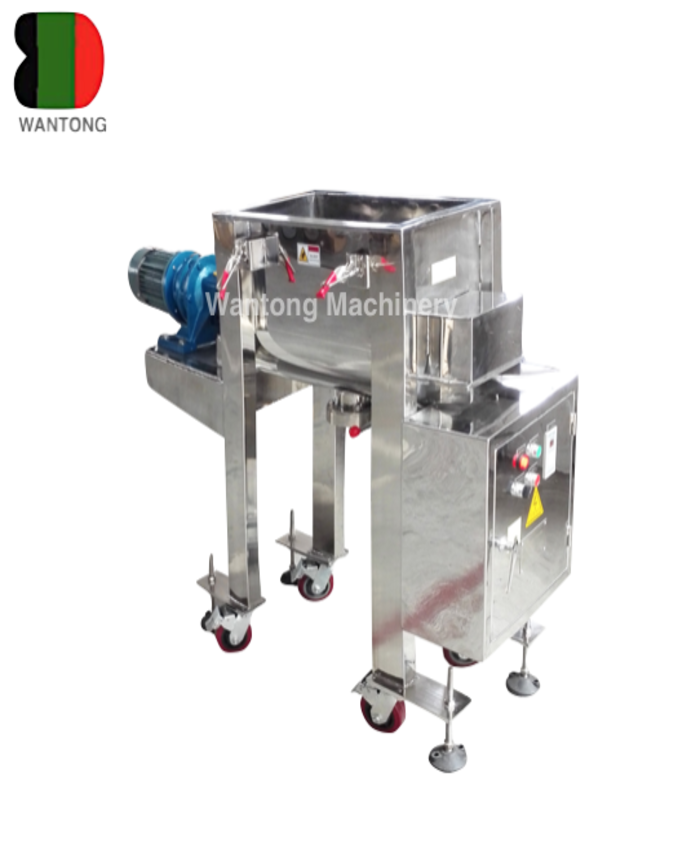

Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

The horizontal ribbon mixer machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.

Products Details

I. Horizontal Ribbon Mixer Descriptions

Horizontal ribbon mixer is a type of industrial mixing equipment used in various industries, including food processing, pharmaceuticals, chemicals, and more. It consists of a horizontal trough with a helical ribbon agitator inside.

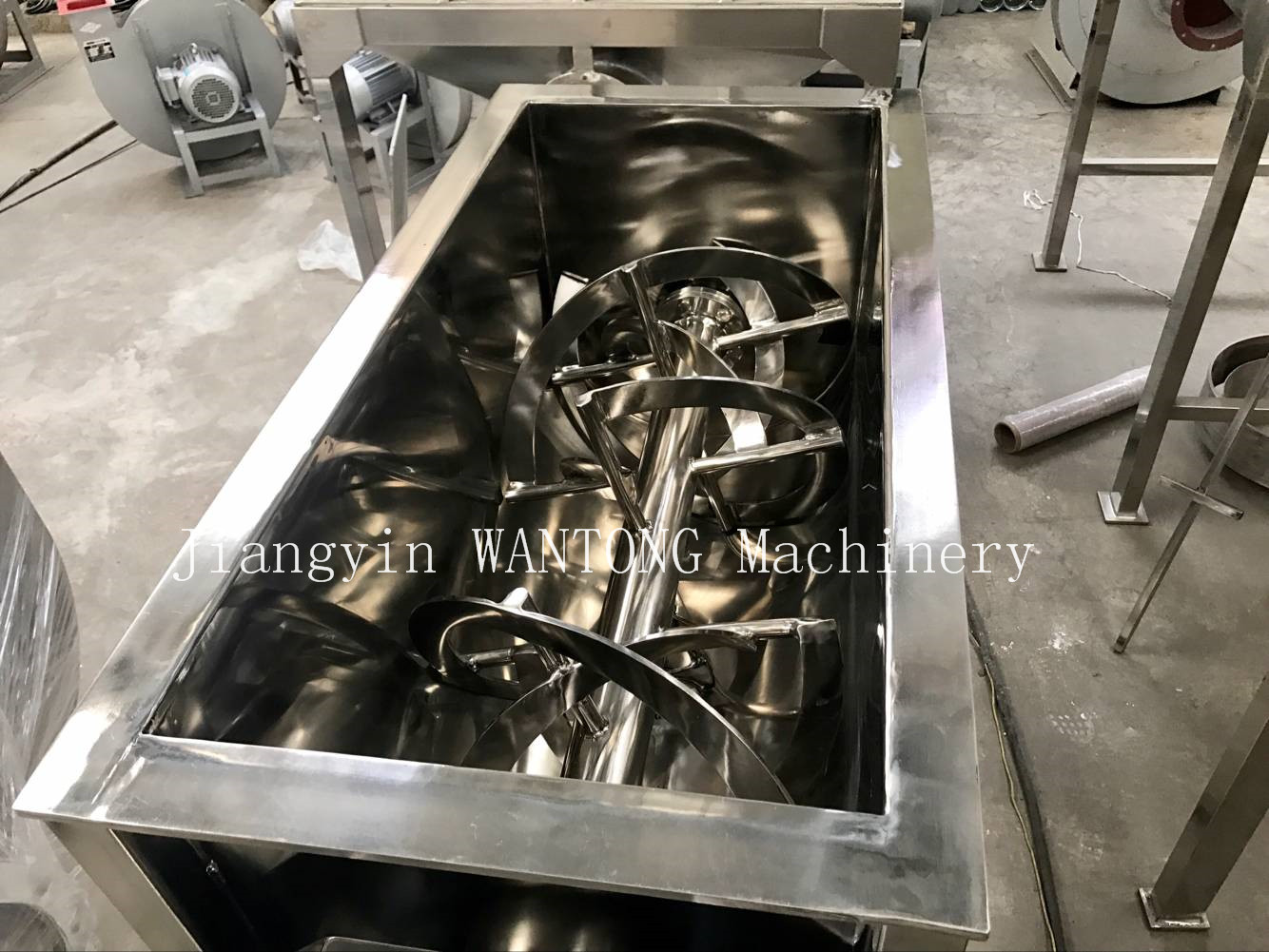

Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time. Horizontal ribbon mixer with ribbon mixer design to provide thorough and efficient mixing of materials. The helical ribbon agitator creates a tumbling action that promotes intimate contact between the ingredients, resulting in uniform blending.

Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

WLDH ribbon typer mixing machine can be widely used for blending industrial, pharmaceutical, chemical etc dry or wet powder or liquid material.

II. Structural Feature

● WLDH spiral ribbon blender powder mixer machine, it is mainly with box, stirring device, support, flip part, transmission part.

● This horizontal ribbon blender is made of stainless steel. The box is made of thick plate, and the sealing parts are arranged at both ends of the stirring shaft to ensure the cleanliness of the material.

● In the part of the bracket, the steel is welded with enough steel and all the gears are arranged in the frame. The outer surface of the bracket is made of stainless steel plate, so the utility model has the advantages of compact structure, simple operation, beautiful appearance, small occupation area, convenient cleaning and good mixing effect.

Horizontal ribbon mixers are known for their efficiency in mixing dry powders, granules, and other solid materials. They are often used in applications where gentle blending is required to maintain the integrity of the materials being mixed. Additionally, they can be equipped with various features such as jacketed troughs for heating or cooling, spray nozzles for liquid addition, and different discharge options to suit specific processing needs.

Stainless Steel Horizontal Ribbon Mixers Advantages

● The horizontal ribbon mixer's design facilitates thorough mixing by employing a double helix ribbon agitator that moves material both radially and laterally.

● Ribbon mixers provide a gentle mixing action, making them suitable for fragile or shear-sensitive materials.

● Horizontal ribbon mixers are versatile and can handle a wide range of materials, including powders, granules, pastes, and viscous substances. They are used across various industries such as food processing, pharmaceuticals, chemicals, and cosmetics, making them suitable for diverse mixing needs.

● Many horizontal ribbon mixers are designed with a discharge port at one end of the trough, allowing for efficient and straightforward unloading of the mixed product.

● It allows businesses to tailor the equipment to their specific requirements. This may include variations in size, materials of construction, discharge mechanisms, and additional features such as heating/cooling jackets or liquid injection systems.

● Horizontal ribbon mixers typically have a straightforward design with few moving parts, making them relatively easy to clean and maintain.

We are real ribbon mixer factory here, will give you wholesale price!

Full Stainless Steel Horizontal Ribbon Spiral Conical Mixer

III. Technical Parameter

We can provide stainless steel horizontal ribbon mixers in different sizes. Welcome to contact us to customize a powder mixers suitable for your application.

ModelAll VolumeLoad efficiencyPower (kw)Overall size(mm)weight (kg)

Products Picture
