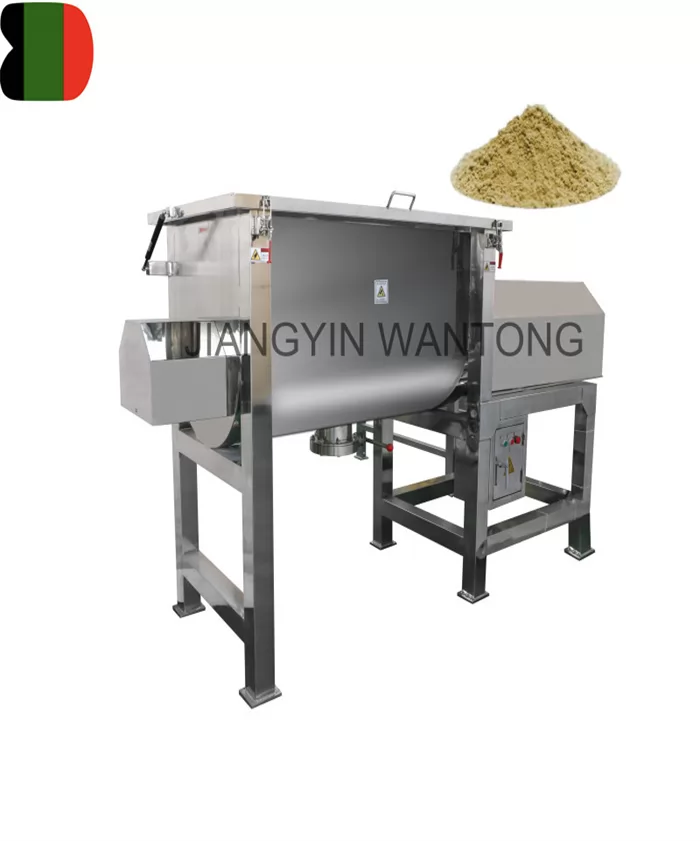

WLDH66 feeds ribbon mixer blender mixing blending machine

The WLDH feeds ribbon mixer blender mixing blending machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.

Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.

Products Details

I. MAIN DESCRIPTIONS of WLDH feeds ribbon mixer blender mixing blending machine

The WLDH feeds ribbon mixer blender mixing blending machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.


Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.


WLDH feeds ribbon mixer blender mixing blending machine can be widely used for blending industrial, pharmaceutical, chemical etc dry or wet powder or liquid material.


II. STRUCTURAL FEATURE of WLDH feeds ribbon mixer blender mixing blending machine

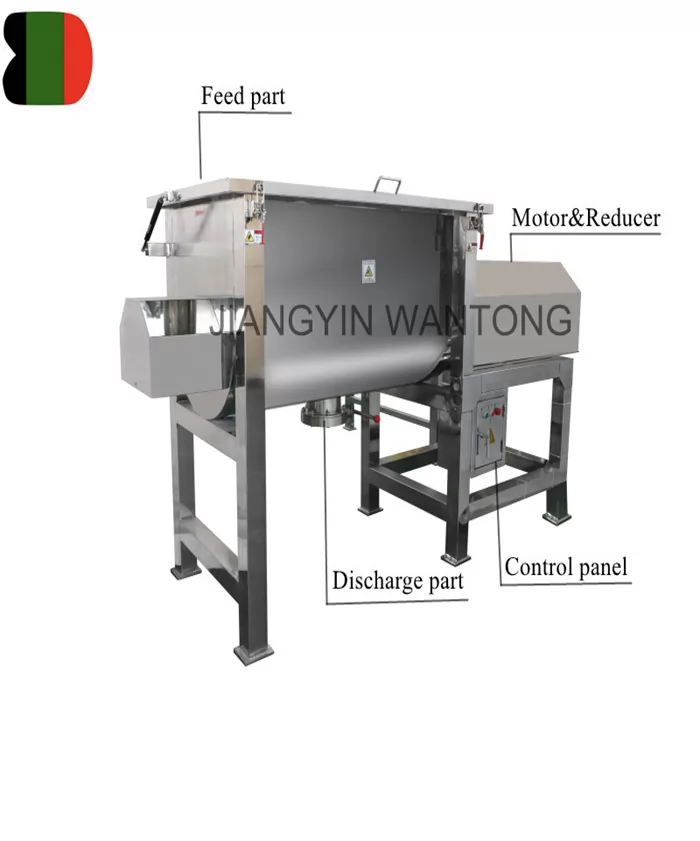

WLDH feeds ribbon mixer blender mixing blending machine, it is mainly with box, stirring device, support, flip part, transmission part.


This WLDH feeds ribbon mixer blender mixing blending machine is made of stainless steel. The box is made of thick plate, and the sealing parts are arranged at both ends of the stirring shaft to ensure the cleanliness of the material.


In the part of the bracket, the steel is welded with enough steel and all the gears are arranged in the frame. The outer surface of the bracket is made of stainless steel plate, so the utility model has the advantages of compact structure, simple operation, beautiful appearance, small occupation area, convenient cleaning and good mixing effect.


we are real factory here, will give you wholesale price !


III. TECHNICAL PARAMETER of WLDH feeds ribbon mixer blender mixing blending machine


ModelAll VolumeLoad efficiencyPower (kw)Overall size(mm)weight (kg)
WLDH-200200L0.4-0.831190x740x770330
WLDH-300300L42030x630x980720
WLDH-500500L7.52320×730×1130980
WLDH-10001000L112800×920×13201700
WLDH-15001500L113180×1020×15501800
WLDH-20002000L153310×1120×16402100
WLDH-30003000L18.53750×1290×18203000
WLDH-40004000L224220×1400×19903980
WLDH-50005000L224220×1500×19904620
WLDH-60006000L304700×1610×22606180
WLDH-80008000L374420×2150×24708200
WLDH-1000010000L455520×2960×27208920
WLDH-1200012000L455720×3010×28409520
WLDH-1500015000L555840×3540×29409950


Products Picture

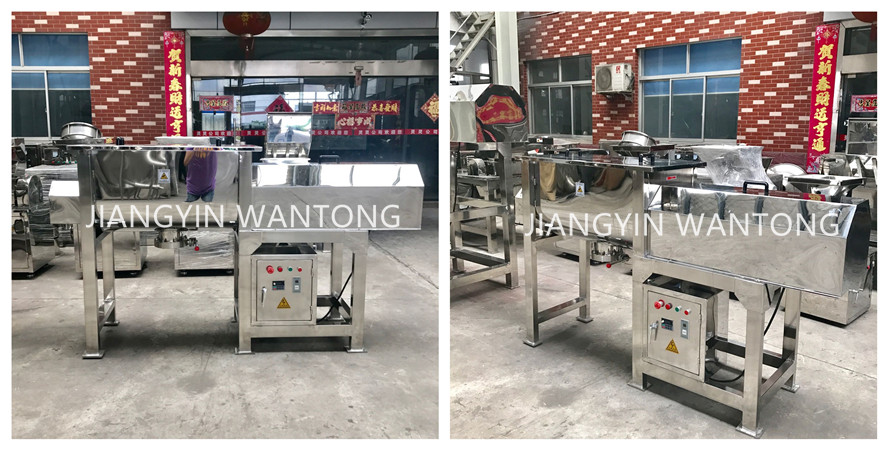

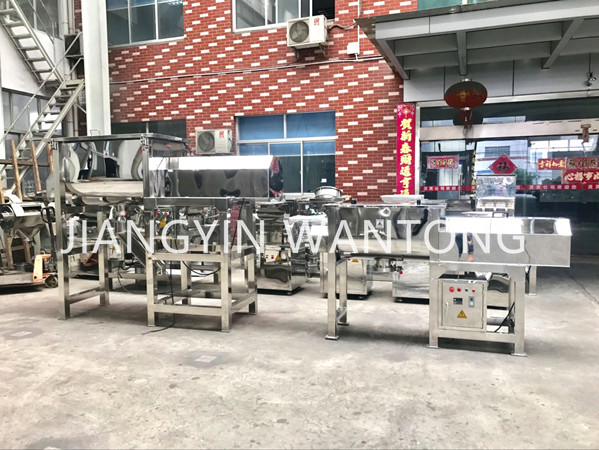

WLDH66 detergent liquid ribbon mixer blender mixing blending machine

WLDH66 detergent liquid ribbon mixer blender mixing blending machine
