YK66 pepper powder swing granulator granulation machine

The YK pepper powder swing granulator granulation granules making machine is widely used in pharmaceutical industry, chemical industry, foodstuff industry, powdered drink and so on. It can make wet powder material particles, can also be used to crush the blocked raw material into small granule quickly.

Products Details

1.MAIN USE of YK pepper powder swing granulator granulation granules making machine

The YK pepper powder swing granulator granulation granules making machine is widely used in pharmaceutical industry, chemical industry, foodstuff industry, powdered drink and so on. It can make wet powder material particles, can also be used to crush the blocked raw material into small granule quickly.

This YK pepper powder swing granulator granulation granules making machine is a kind of wet powder mixture in a rotating drum, the counter rotating under the action of special equipment made mandatory through the sieve particles.


2.FEATURE of YK pepper powder swing granulator granulation granules making machine

1)The structure of the hopper and the granulating device is designed according to the principle of convenient installation, cleaning and convenient use. The material of the contact with the material is made of stainless steel to ensure the cleanness of the product.

2)Each component particle manufacturing device is completely sealed to prevent oil into raw materials.

3)The screen clamping pipe is used for clamping the screen mesh, so as to ensure that the screen mesh is not close to the rotating drum, and the elastic force of the screen mesh is adjusted by the hand wheel.

4)Users can according to the requirements of the product, select the appropriate screen sieve size, for producing of various specifications of particles.


3.TECHNICAL PARAMETERS of YK pepper powder swing granulator granulation granules making machine

TYPEYK-100YK-120YK-160YK-200
CAPACITY(kg/h)30-10050-200100-300200-500
POWER(kw)1.11.52.25.5
ROTATING BARREL SPEED (r/min)55555555
SWAY ANGLE360°
ROTATING BARREL DIAMETER (mm)Ф100Ф120Ф160Ф200
OVERALL SIZE(L×W×H)600X300X980800X500X11001000×800×13001270×1000×1400
WEIGHT (kg)180260350500



Products Picture

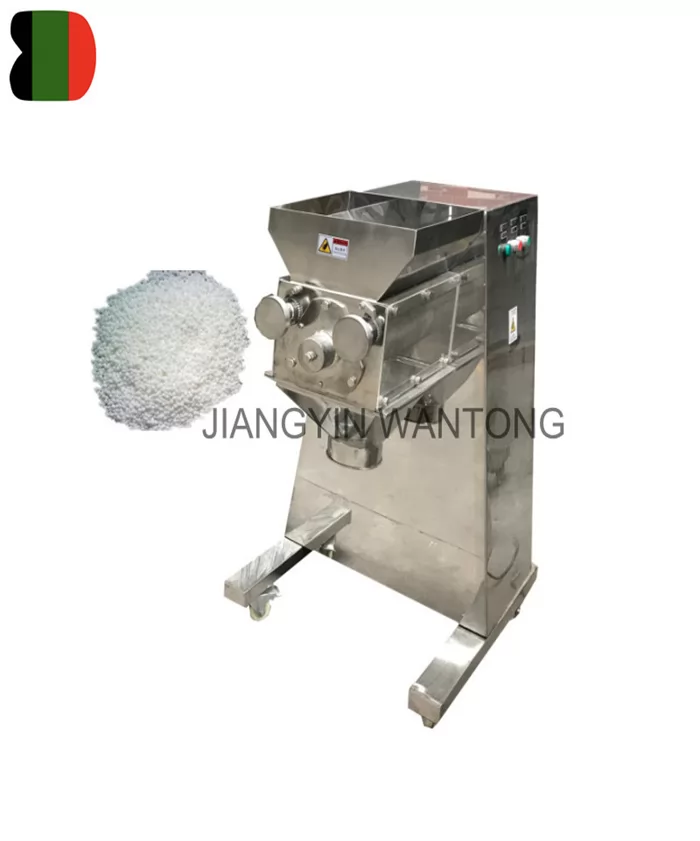

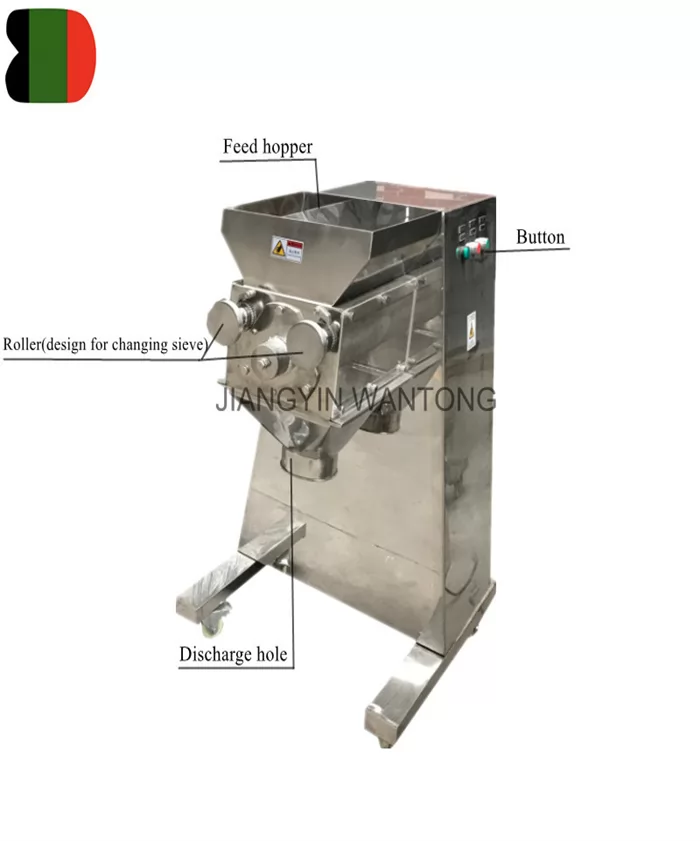

YK66 animal feed swing granulator granulation

YK66 animal feed swing granulator granulation
