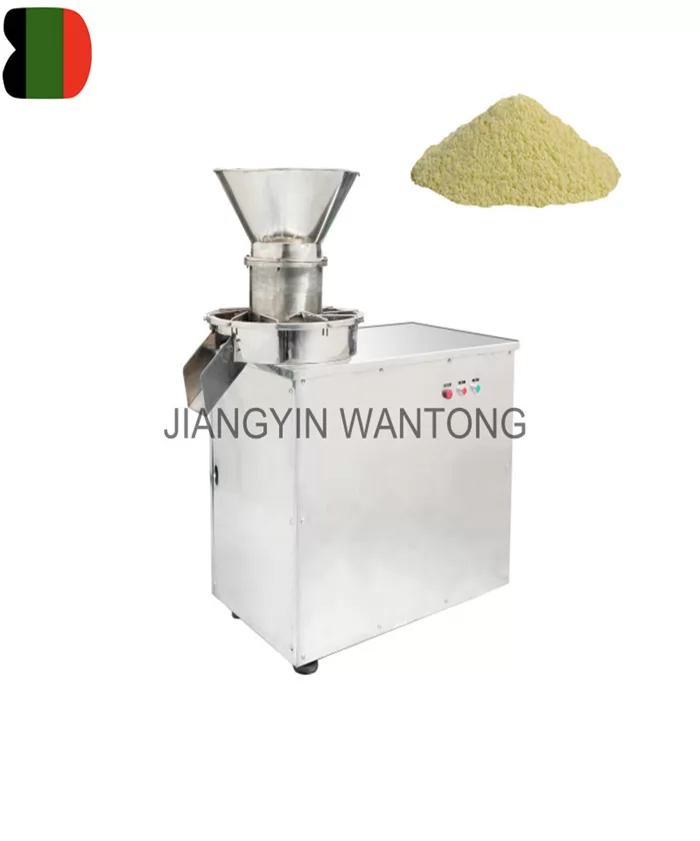

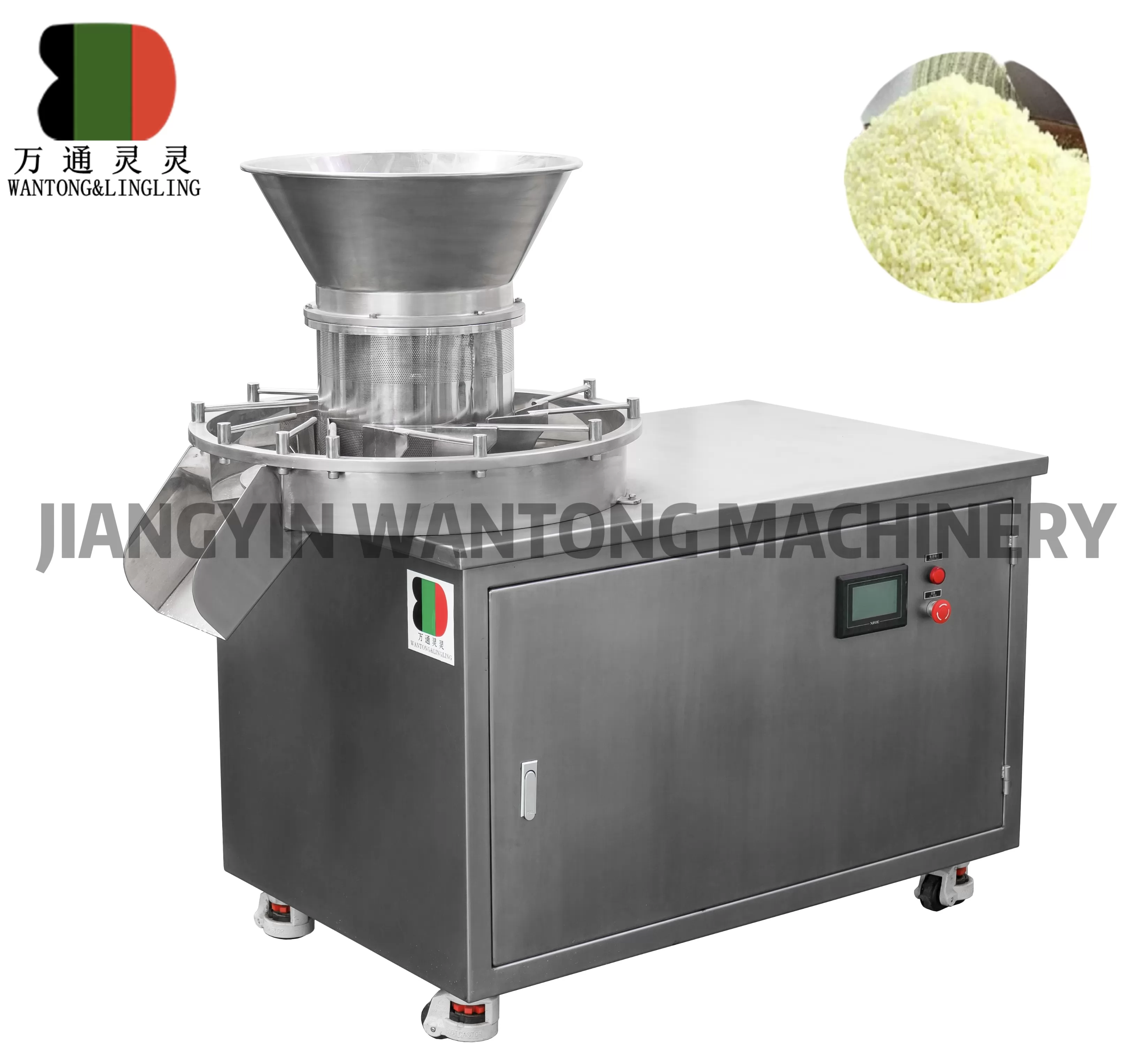

This rotary granulator is a new equipment of our company recently developed. ZLG seasoning rotary granulator granulation machine has the advantages of automatic unloading, the efficiency is 2-3 times more than YK - 160 swing granulator, also meet the GMP standard. ZLG seasoning rotary granulator granulation machine is one of the ideal granulating equipment. Simple structure, easy to operate, easy to move. Automatic discharge, to make up for the shortcomings of the old manual unloading. Continuous operation. Suitable for semi dry powder state and with viscous material, medicinal granules, solid beverage, chicken and other foods.
Products Details

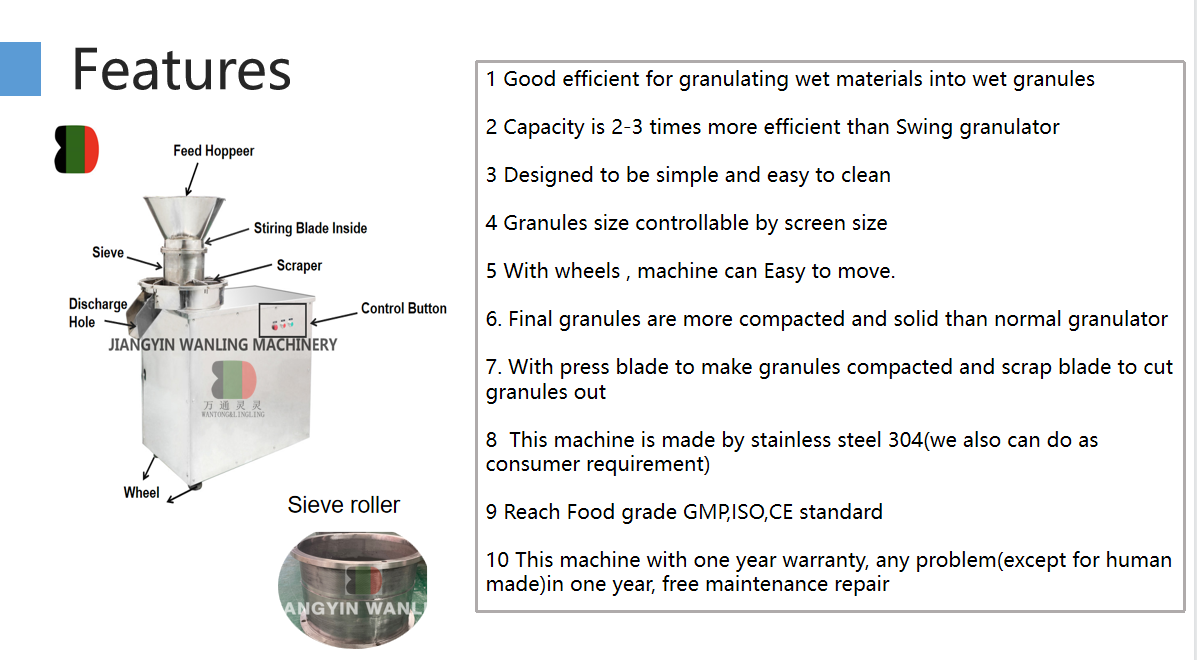

1.Main Use of ZLG rotary granulator
This seasoning rotary granulator granulation machine is a new equipment of our company recently developed. ZLG seasoning rotary granulator granulation machine has the advantages of automatic unloading, the efficiency is 2-3 times more than YK - 160 swing granulator, also meet the GMP standard. ZLG seasoning rotary granulator granulation machine is one of the ideal granulating equipment. Simple structure, easy to operate, easy to move. Automatic discharge, to make up for the shortcomings of the old manual unloading. Continuous operation. Suitable for semi dry powder state and with viscous material, medicinal granules, solid beverage, chicken and other foods.
2.Working Principle of ZLG rotary granulator

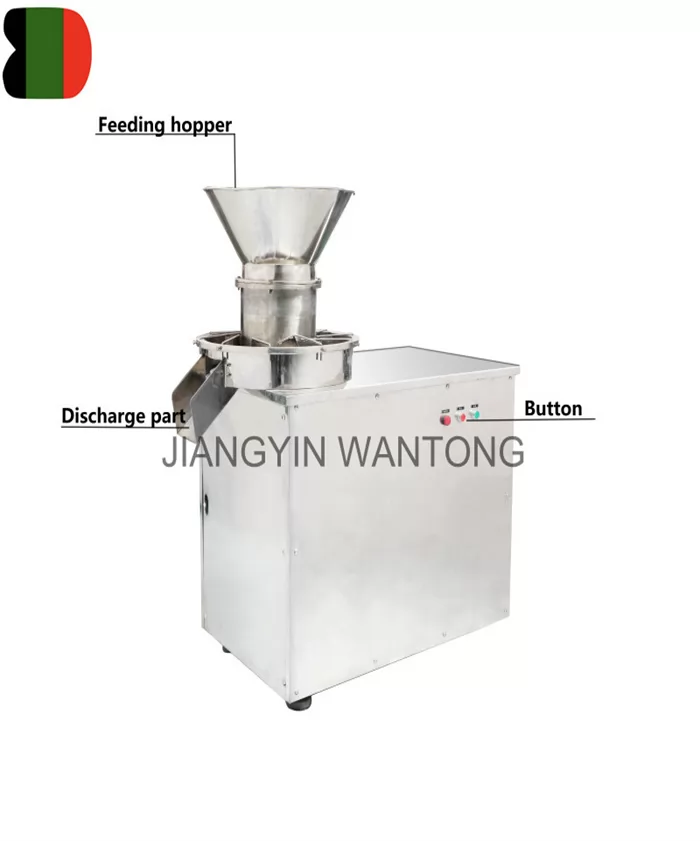

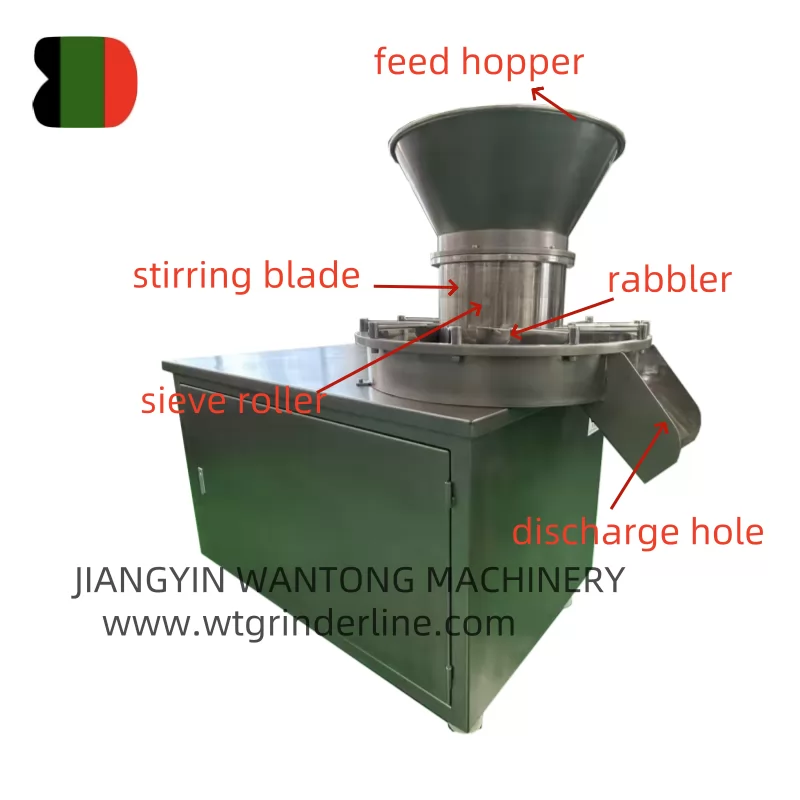

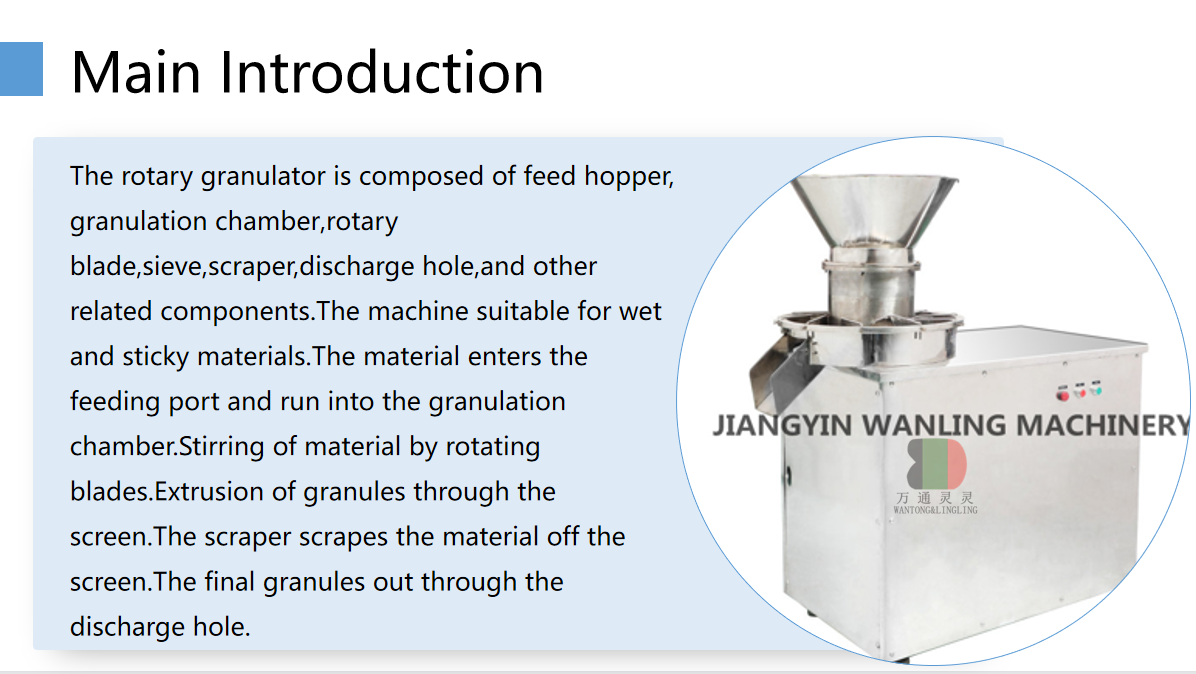

Through mechanical transmission make grinding blade and pressure material leaf as opposite spin, pressure material leaf's certain Angle make the material feeding into the grinding blade, a ruler to run on the knife large Angle spiral leaf inner material into a sieve, then the material be extruded into particles from screen hole, through the material blade.
3.Technical Data of of ZLG rotary granulator
| TYPE/ITEM | ZLG-150 | ZLG-250 | ZLG-300 | ZLG-500 |
| Power(kw) | 3 | 5.5 | 7.5 | 18.5 |
| Cylinder diameter(mm) | 150 | 250 | 300 | 500 |
| Capacity(kg/h) | 30-100 | 50-300 | 100-500 | 1000-1500 |
| Granule diameter(mm) | φ1.2-φ3 | |||
| Speed(r/min) | 60(can add frequency converter) | 50(can add frequency converter) | 36(can add frequency converter) | 36(can add frequency converter) |
| Overall size(mm) | 700×400×700 | 1200×700×1100 | 1350×800×1200 | 2500×1500×2000 |
| Weight (kg) | 200 | 400 | 600 | 1000 |
Note: only for reference, special feedstock has special data.
