What are the Advantages of V-Mixer Performance?

Jul. 15, 2021
Share

V-Mixer series products are high-efficiency asymmetric mixers, suitable for mixing powder or granular materials in chemical, food, pharmaceutical, feed, ceramic, metallurgy and other industries. The machine has a reasonable structure, simple, fully sealed, easy to enter and exit the material. The barrel is made of stainless steel, which is easy to clean. It is one of the basic equipment of the enterprise.


It is suitable for the mixing of powder and granule with good fluidity and small physical properties, as well as the materials with low mixing degree and short mixing time. As the material flows smoothly in the V-shaped mixing vessel, it will not destroy the original shape of the material. Therefore, the V-shaped mixer is also suitable for fragile, easy to wear the granular material mixing, or finer powder, lumps, containing a certain amount of moisture, such as Dry Powder Mixer, is widely used in pharmaceutical, chemical, food and other industries.

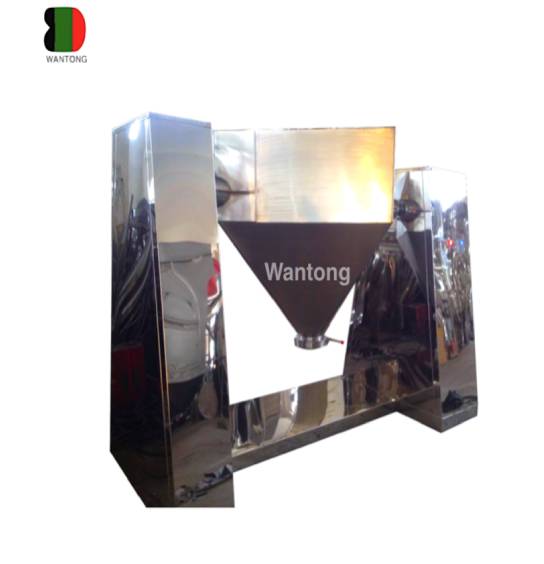

Dry Powder Mixer

Dry Powder Mixer


Precautions for use:

1. Empty running test should be conducted before use. Before the test, the solidity of all connections of the horizontal V-type dry powder mixer should check the amount of lubricating oil in the reducer and the integrity of the electrical equipment, and then close the main switch, turn on the power supply, the empty running test.

2. Installation: place the machine smoothly, install the machine legs, flattening, so that the machine runs freely.

3. Fill up the oil to be refueled before use, then carry out no-load operation, check whether the fasteners are loose, whether the electrical is normal, whether the machine is running normally, and if there is any abnormality, repair and debug.

4. Turn the feeding port to the top, open the feeding cover for feeding, the feeding volume should not exceed the specified volume, then cover the feeding cover tightly and start the machine running. If abnormalities are found in the middle, you must stop and check.


The use of V-Type Mixer is to open the feed port of the mixer when the belt is running, check whether the discharge port is closed, and put the specified amount of material into the V-type hopper according to the process control requirements. After the filling is completed, the filling port should be closed and locked in order to prevent the material from flowing out during the mixing process.

Next is the working time of the machine. Turn on the power button, rotate the stop button to the left, start the reverse button of the mixer, adjust the motor speed to 600r/min, and mix within the specified process speed. After the mixture reaches the time specified in the process, stop the machine by adjusting the motor speed button. When stopping the machine, the discharge opening of the mixer should be facing the ground and the motor speed button should be adjusted to the 0 position.


During the installation and use of the V-mixer, we have many other points to note:

1. Installation: Place the machine smoothly, install the machine legs and flatten them to make the machine run freely.

2. Before use, fill the oil to be refueled, then run at no load, check whether the fasteners are loose, whether the electrical is normal, and whether the machine runs normally. If there is any abnormality, carry out maintenance and debugging.

3. Turn the feeding port to the top, open the feeding cover and feed the material, the feeding volume should not exceed the specified volume. Then close the feeding cover and start the machine running. If abnormalities are found in the middle, it must be stopped for inspection.

4. When changing varieties, the inside and outside of the hopper must be flushed clean. It is suitable for mixing powder or granular materials in chemical, food, medicine, feed, ceramics, metallurgy and other industries. The machine has reasonable structure, simple, fully enclosed, and convenient for in and out of material. The barrel is made of stainless steel, which is easy to clean. It is one of the basic equipment commonly used by enterprises.


Our company also has Double Cone Mixer, powder mixer, etc. If you are interested, you can choose to contact us.
